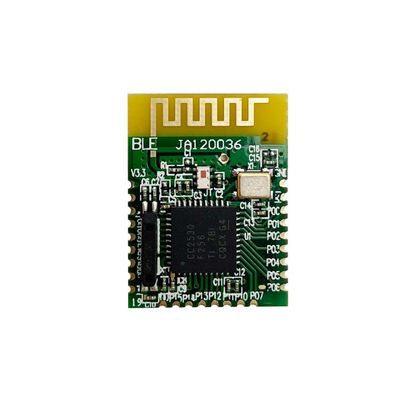

ZB2530SA-A 4.5dBm Module Zigbee CC2530

Large Image : ZB2530SA-A 4.5dBm Module Zigbee CC2530

Product Details:

Place of Origin:	Beijing
Brand Name:	Cansec Wireless
Model Number:	ZB2530SA-A

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	USD 2.36$ per piece
Packaging Details:	Box for 1000 pieces Package size: 403420 cm Gross weight: 5.000 kg
Delivery Time:	3~6 weeks
Payment Terms:	T/T
Supply Ability:	2000000 pieces per year

Contact Now

ZB2530SA-A 4.5dBm Module Zigbee CC2530

Description

Size:	20×15×2.5mm	TX Power:	4.5dBm
RX Sensitivity:	-97dBm	TX Current:	29mA
RX Current:	30mA	Standby Current:	1uA
Antenna Type:	Chip Antenna	Chipset:	Cc2530
Highlight:	ZB2530SA-A Module Zigbee CC2530 , 4.5dBm Module Zigbee CC2530 , zigbee cc2530 Module

ZB2530SA-A 4.5dBm Module Zigbee CC2530 0

ZB2530SA-A ZigBee module with TI CC2530 chipset

Parameter		Min	Typ	Max	Unit
Operating Voltage		2	-	3.6	V
Operating Temperature		-30	-	+85	℃
Current Consumption	Sleep Mode	-	0.4	-	uA
	Receive mode	-	25	-	mA
	Transmit Mode (@3.5dBm)	-	36	-	mA
TX Power (For Carrier)		-	3.5	4	dBm
RX Sensitivity (For Lora Modulation)		-	-	-97	dBm
Distance		170			m

ZB2530SA-A ZigBee module with TI CC2530 chipset

ZB2530SA-A Module is designed based on CC2530 System-on-Chip. The CC2530 is a true system-on-chip (SoC) solution for IEEE 802.15.4, ZigBee and RF4CE applications. It enables robust network nodes to be built with very low total bill-of-material costs. 2. The CC2530 combines the excellent performance of a leading RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable flash memory, 8-KB RAM, and many other powerful features. The CC2530 comes in four different flash versions: CC2530F32/64/128/256, with 32/64/128/256 KB of flash memory, respectively.
The CC2530 has various operating modes, making it highly suited for systems where ultralow power consumption is required. Short transition times between operating modes further ensure low energy consumption.
Combined with the industry-leading and golden-unit-status ZigBee protocol stack (Z-Stack™) from Texas Instruments, the CC2530F256 provides a robust and complete ZigBee solution. Combined with the golden-unit-status RemoTI stack from Texas Instruments, the CC2530F64 and higher provide a robust and complete ZigBee RF4CE remote-control solution.


FAQQ1: Are you a factory or trade company?

A1: We are a professional factory with 25 years experience.

Q2: Can you accept OEM/ODM?

A2: Sure, we have rich OEM&ODM experience.

Q3: Do you have quality assurance?

A3; Each of our products has undergone quality testing and has two years of free after-sales service.
