Product Details:
|
| Size: | 20*30*3mm | TX Power: | 868MHz:12.5dBm /2.4G:3dBm |
|---|---|---|---|
| RX Sensitivity: | 868MHz:-96dBm /2.4G:-96dBm | TX Current: | 868MHz:41mA /2.4G:11.1mA |
| RX Current: | 868MHz:8.5mA /2.4G:8.5mA | Standby Current: | 3μA |
| Chipset: | Texas Instruments Cc2652RB | ||
| High Light: | Iot Rf Wifi Bluetooth Low Energy Module,TI Cc2652 Bluetooth Low Energy Module,AN2652RBSA-A |
||

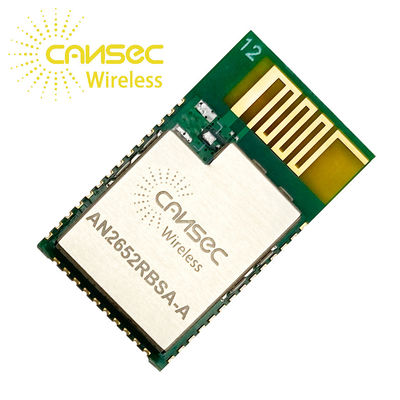

AN2652RB ZigBee 3.0 Thread BLE Multi-Protocols Module with TI CC2652 chipset
| Parameter | Min | Typ | Max | Unit | |
| Operating Voltage | 1.8 | - | 3.8 | V | |
| Operating Temperature | -20 | - | +70 | ℃ | |
|
Current Consumption |
Sleep Mode | - | 1 | uA | |
| Receive mode | - | 6.9 | - | mA | |
| Transmit Mode | - | 9.6 | - | mA | |
| TX Power (For Carrier) | - | 4 | dBm | ||
| RX Sensitivity (For Lora Modulation) | - | - | -97 | dBm | |
| Distance | 150 | m | |||
AN2652RB ZigBee 3.0 Thread BLE Multi-Protocols Module with TI CC2652 chipset
The CC2652R device is a multi-protocol wireless 2.4GHz MCU for Thread, Zigbee®, low-power Bluetooth® 5, IEEE 802.15.4g, IPv6-capable smart objects (6LoWPAN), Wi-SUN®, and proprietary systems, including TI 15.4-Stack.
The CC2652R device is a member of the SimpleLink™ MCU platform for cost-effective, ultra-low power, 2.4GHz and sub-1GHz RF devices. Very low active RF and microcontroller (MCU) current and sleep currents below 1μA and parity-protected RAM retention of up to 80KB provide excellent battery life and support energy harvesting on small coin cells Long-running work in the application.
| Pad Number | Name | Pin Type | Description |
| 1 | NC | NO Connect | NO Connect |
| 10, 38 | GND | Power | Connect to GND |
| 11 | VCC | Power | +3V3 |
| 2 | DIO0 | Digital | GPIO |
| 3 | DIO1 | Digital | GPIO |
| 4 | DIO2 | Digital | GPIO |
| 5 | DIO3 | Digital | GPIO |
| 6 | DIO4 | Digital | GPIO |
| 7 | DIO5 | Digital | GPIO, high-drive capability |
| 8 | DIO6 | Digital | GPIO, high-drive capability |
| 9 | DIO7 | Digital | GPIO, high-drive capability |
| 12 | DIO8 | Digital | GPIO |
| 13 | DIO9 | Digital | GPIO |
| 14 | DIO10 | Digital | GPIO |
| 15 | DIO11 | Digital | GPIO |
| 16 | DIO12 | Digital | GPIO |
| 17 | DIO13 | Digital | GPIO |
| 18 | DIO14 | Digital | GPIO |
| 19 | DIO15 | Digital | GPIO |
| 22 | DIO16 | Digital | GPIO, JTAG_TDO, high-drive |
| Pad Number | Name | Pin Type | Description |
| 23 | DIO17 | Digital | GPIO, JTAG_TDI, high-drive capability |
| 24 | DIO18 | Digital | GPIO |
| 25 | DIO19 | Digital | GPIO |
| 26 | DIO20 | Digital | GPIO |
| 27 | DIO21 | Digital | GPIO |
| 28 | DIO22 | Digital | GPIO |
| 30 | DIO23 | Digital or Analog | GPIO, analog capability |
| 31 | DIO24 | Digital or Analog | GPIO, analog capability |
| 32 | DIO25 | Digital or Analog | GPIO, analog capability |
| 33 | DIO26 | Digital or Analog | GPIO, analog capability |
| 34 | DIO27 | Digital or Analog | GPIO, analog capability |
| 35 | DIO28 | Digital or Analog | GPIO, analog capability |
| 36 | DIO29 | Digital or Analog | GPIO, analog capability |
| 37 | DIO30 | Digital or Analog | GPIO, analog capability |
| 20 | JTAG_TMSC | Digital | JTAG TMSC, high-drive capability |
| 21 | JTAG_TCKC | Digital | JTAG TCKC |
| 29 | RESET_N | Digital | Reset, active low. Internal pullup |
