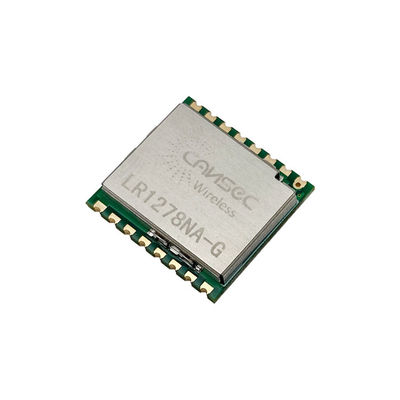

Lora 433mhz SX1278 Lorawan Module RF Transceiver Low Power Consumption

Lora 433mhz SX1278 Lorawan Module RF Transceiver Low Power Consumption
Lora 433mhz SX1278 Lorawan Module RF Transceiver Low Power Consumption

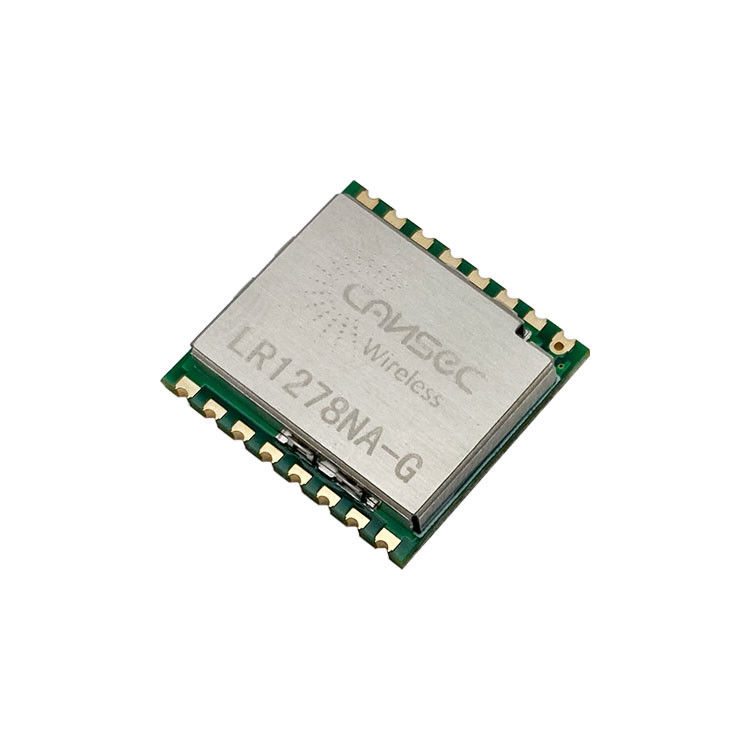

Large Image :  Lora 433mhz SX1278 Lorawan Module RF Transceiver Low Power Consumption

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: LR1278NA-G
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 3.55$ per piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year

Lora 433mhz SX1278 Lorawan Module RF Transceiver Low Power Consumption

Description
Chipset: Semtech SX1278 Application: IoT
Size: 16*17*3mm Operating Temperature: -20 - 70℃
Operating Voltage: 2.7-3.6V TX Power: 20dBm
RX Sensitivity: -139dBm Sleep Current Consumption: 0.1μA
Highlight:

SX1278 Lorawan Module

,

Lora 433mhz SX1278 Module

,

RF module lora sx1278

Lora 433mhz SX1278 Lorawan Module RF Transceiver Low Power Consumption 0

Cansec No Antenna IoT I/O 20dBm LoRa RF Transceiver Module Low Power Consumption LR1278Na-G SX1278 LoRa IoT Module



Parameter
Min
Typ
Max
Unit
Operating Voltage
2.7
-
3.6
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode
-
0.1
-
uA
Receive mode
-
11.7
-
mA
Transmit Mode (RFOP =+20dBm, on PA_BOOST)
-
117
-
mA
TX Power (For Carrier)
-
18
20
dBm
RX Sensitivity (For Lora Modulation)
-
-
-139
dBm



Cansec No Antenna IoT I/O 20dBm LoRa RF Transceiver Module Low Power Consumption LR1278Na-G SX1278 LoRa IoT Module



The LR1278NA-G module is designed based on SX1278. The SX1278 incorporates the LoRaTM spread spectrum modem which is capable of achieving significantly longer range than existing systems based on FSK or OOK modulation.

At maximum data rates of LoRaTM the sensitivity is 8dB better than FSK, but using a low cost bill of materials with a 20ppm XTAL LoRaTM can improve receiver sensitivity by more than 20dB compared to FSK.

Features
LoRaTM Modem
168 dB maximum link budget
+20 dBm - 100 mW constant RF output vs. V supply
+14 dBm high efficiency PA
Programmable bit rate up to 300 kbps
High sensitivity: down to -148 dBm
Bullet-proof front end: IIP3 = -11 dBm
Excellent blocking immunity
Low RX current of 12 mA, 200 nA register retention
Fully integrated synthesizer with a resolution of 61 Hz
FSK, GFSK, MSK, GMSK, LoRaTMand OOK modulation
Built-in bit synchronizer for clock recovery
Preamble detection
127 dB Dynamic Range RSSI
Automatic RF Sense and CAD with ultra-fast AFC
Packet engine up to 256 bytes with CRC
Built-in temperature sensor and low battery indicator

Lora 433mhz SX1278 Lorawan Module RF Transceiver Low Power Consumption 1

Lora 433mhz SX1278 Lorawan Module RF Transceiver Low Power Consumption 2Lora 433mhz SX1278 Lorawan Module RF Transceiver Low Power Consumption 3

Lora 433mhz SX1278 Lorawan Module RF Transceiver Low Power Consumption 4

Lora 433mhz SX1278 Lorawan Module RF Transceiver Low Power Consumption 5

Lora 433mhz SX1278 Lorawan Module RF Transceiver Low Power Consumption 6

Lora 433mhz SX1278 Lorawan Module RF Transceiver Low Power Consumption 7

Lora 433mhz SX1278 Lorawan Module RF Transceiver Low Power Consumption 8

Lora 433mhz SX1278 Lorawan Module RF Transceiver Low Power Consumption 9
Lora 433mhz SX1278 Lorawan Module RF Transceiver Low Power Consumption 10
Lora 433mhz SX1278 Lorawan Module RF Transceiver Low Power Consumption 11
Lora 433mhz SX1278 Lorawan Module RF Transceiver Low Power Consumption 12
