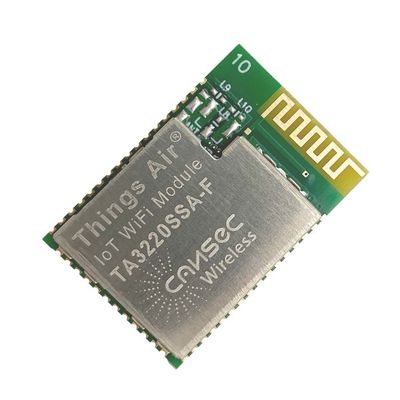

Cansec TA3220SSA-F Ti CC3220 Wifi Module Home Automation Cost Effecticve Rf Wifi Modules 190M Long Range For IoT

Cansec TA3220SSA-F Ti CC3220 Wifi Module Home Automation Cost Effecticve Rf Wifi Modules 190M Long Range For IoT
Cansec TA3220SSA-F Ti CC3220 Wifi Module Home Automation Cost Effecticve Rf Wifi Modules 190M Long Range For IoT Cansec TA3220SSA-F Ti CC3220 Wifi Module Home Automation Cost Effecticve Rf Wifi Modules 190M Long Range For IoT

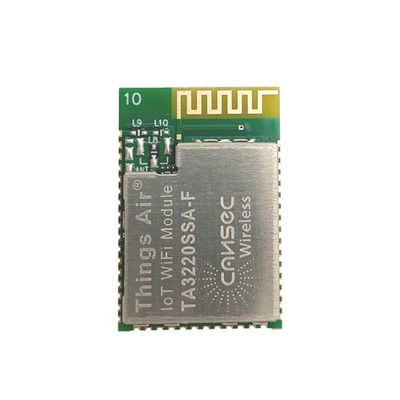

Large Image :  Cansec TA3220SSA-F Ti CC3220 Wifi Module Home Automation Cost Effecticve Rf Wifi Modules 190M Long Range For IoT

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: TA3220SSA-F
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 7.18$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

Cansec TA3220SSA-F Ti CC3220 Wifi Module Home Automation Cost Effecticve Rf Wifi Modules 190M Long Range For IoT

Description
Size: 18.2*26.7*2.8mm TX Power: 17dBm
RX Sensitivity: -95dBm TX Current: 286mA
RX Current: 74mA Standby Current: 1uA
Antenna Type: Chip Antenna Chipset: CC3220S



Cansec TA3220SSA-F Ti CC3220 Wifi Module Home Automation Cost Effecticve Rf Wifi Modules 190M Long Range For IoT 0

Cansec TA3220SSA-F Ti CC3220 Wifi Module Home Automation Cost Effecticve Rf Wifi Modules 190M Long Range For IoT

Parameter
Min
Typ
Max
Unit
Current
Consumption
Sleep Mode(For Hibernate)
-
-
9
uA

Transmit Mode (@18dbm,for carrier)
-
400
450
mA
TX Power (For Carrier)
-
17
20
dBm
RX Sensitivity
-
-
-96
dBm
Distance
190
m
Cansec TA3220SSA-F Ti CC3220 Wifi Module Home Automation Cost Effecticve Rf Wifi Modules 190M Long Range For IoT

1. TA3220S Module is designed based on TI’s CC3220S which is part of the SimpleLink™ microcontroller (MCU) platform, which share a common, easy-to-use development environment with a single core software development kit (SDK) and rich tool set. A one-time integration of the SimpleLink platform enables you to add any combination of the portfolio’s devices into your design, allowing 100 per cent code reuse when your design requirements change. For more information, visit Overview for SimpleLink™ solutions.
2. Start your Internet-of-Things (IoT) design with a Wi-Fi® CERTIFIED® single-chip MCU System-on-Chip(SoC) with built-in Wi-Fi connectivity. Created for the IoT, the SimpleLink™ CC3220x device family from Texas Instruments™ is a single-chip solution, integrating two physically separated, on-chip MCUs. • An application processor – ARM® Cortex®-M4 MCU with a user-dedicated 256KB of RAM, and an optional 1MB of XIP flash. • A network processor MCU to run all Wi-Fi and Internet logical layers. This ROM-based subsystem includes an 802.11b/g/n radio, baseband, and MAC with a powerful crypto engine for fast, secure internet connections with 256-bit encryption.
3. The CC3220x wireless MCU family is part of the second generation of TI’s Internet-on-a-chip™ family of solutions. This generation introduces new features and capabilities that further simplify the connectivity of things to the Internet. The new capabilities including the following:
Enhanced Wi-Fi provisioning Enhanced power consumption
Enhanced file system security (supported only by the CC3220S and CC3220SF devices) Wi-Fi AP connection with up to four stations More concurrently opened BSD sockets; up to 16 BSD sockets, of which 6 are secure
HTTPS support
RESTful API support
Asymmetric keys crypto library
The CC3220x wireless MCU family supports the following modes: station, AP, and Wi-Fi Direct®. The device also supports WPA2 personal and enterprise security. This subsystem includes embedded TCP/IP and TLS/SSL stacks, HTTP server, and multiple Internet protocols. The device supports a variety of Wi-Fi provisioning methods including HTTP based on AP mode, SmartConfig™ Technology, and WPS2.0.
The power-management subsystem includes integrated DC-DC converters that support a wide range of supply voltages. This subsystem enables low-power consumption modes for extended battery life, such as low-power deep sleep, hibernate with RTC (consuming only 4.5 μA), and shutdown mode (consuming only 1 μA).
The device includes a wide variety of peripherals, including a fast parallel camera interface, I2S, SD, UART, SPI, I2C, and 4-channel ADC.

Cansec TA3220SSA-F Ti CC3220 Wifi Module Home Automation Cost Effecticve Rf Wifi Modules 190M Long Range For IoT 1

Cansec TA3220SSA-F Ti CC3220 Wifi Module Home Automation Cost Effecticve Rf Wifi Modules 190M Long Range For IoT 2



Cansec TA3220SSA-F Ti CC3220 Wifi Module Home Automation Cost Effecticve Rf Wifi Modules 190M Long Range For IoT 3

Cansec TA3220SSA-F Ti CC3220 Wifi Module Home Automation Cost Effecticve Rf Wifi Modules 190M Long Range For IoT 4

Cansec TA3220SSA-F Ti CC3220 Wifi Module Home Automation Cost Effecticve Rf Wifi Modules 190M Long Range For IoT 5

Cansec TA3220SSA-F Ti CC3220 Wifi Module Home Automation Cost Effecticve Rf Wifi Modules 190M Long Range For IoT 6

Cansec TA3220SSA-F Ti CC3220 Wifi Module Home Automation Cost Effecticve Rf Wifi Modules 190M Long Range For IoT 7

Cansec TA3220SSA-F Ti CC3220 Wifi Module Home Automation Cost Effecticve Rf Wifi Modules 190M Long Range For IoT 8

Cansec TA3220SSA-F Ti CC3220 Wifi Module Home Automation Cost Effecticve Rf Wifi Modules 190M Long Range For IoT 9

FAQ

Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.

WiFi stands for Wireless Fidelity. WiFiIt is based on the IEEE 802.11 family of standards and is primarily a local area networking (LAN) technology designed to provide in-building broadband coverage.

Current WiFi systems support a peak physical-layer data rate of 54 Mbps and typically provide indoor coverage over a distance of 100 feet.

WiFi has become the de facto standard for last mile broadband connectivity in homes, offices, and public hotspot locations. Systems can typically provide a coverage range of only about 1,000 feet from the access point.

WiFi offers remarkably higher peak data rates than do 3G systems, primarily since it operates over a larger 20 MHz bandwidth, but WiFiWiFi systems are not designed to support high-speed mobility.One significant advantage of WiFi over WiMAX and 3G is its wide availability of terminal devices. A vast majority of laptops shipped today have a built-in WiFi interface. WiFi interfaces are now also being built into a variety of devices, including personal data assistants (PDAs), cordless phones, cellular phones, cameras, and media players.WiFi is Half DuplexAll WiFi networks are contention-based TDD systems, where the access point and the mobile stations all vie for use of the same channel. Because of the shared media operation, all WiFi networks are half duplex.

There are equipment vendors who market WiFi mesh configurations, but those implementations incorporate technologies that are not defined in the standards.Channel BandwidthThe WiFi standards define a fixed channel bandwidth of 25 MHz for 802.11b and 20 MHz for either 802.11a or g networks
