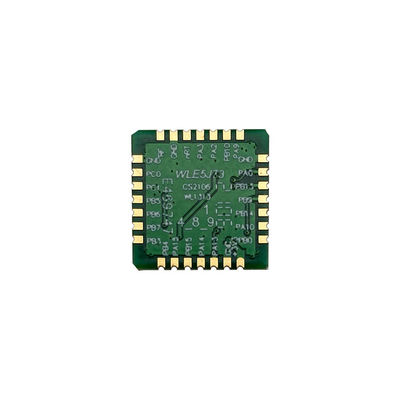

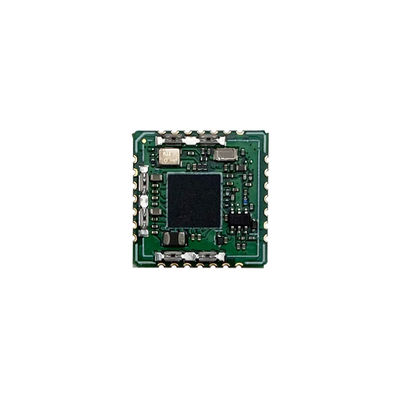

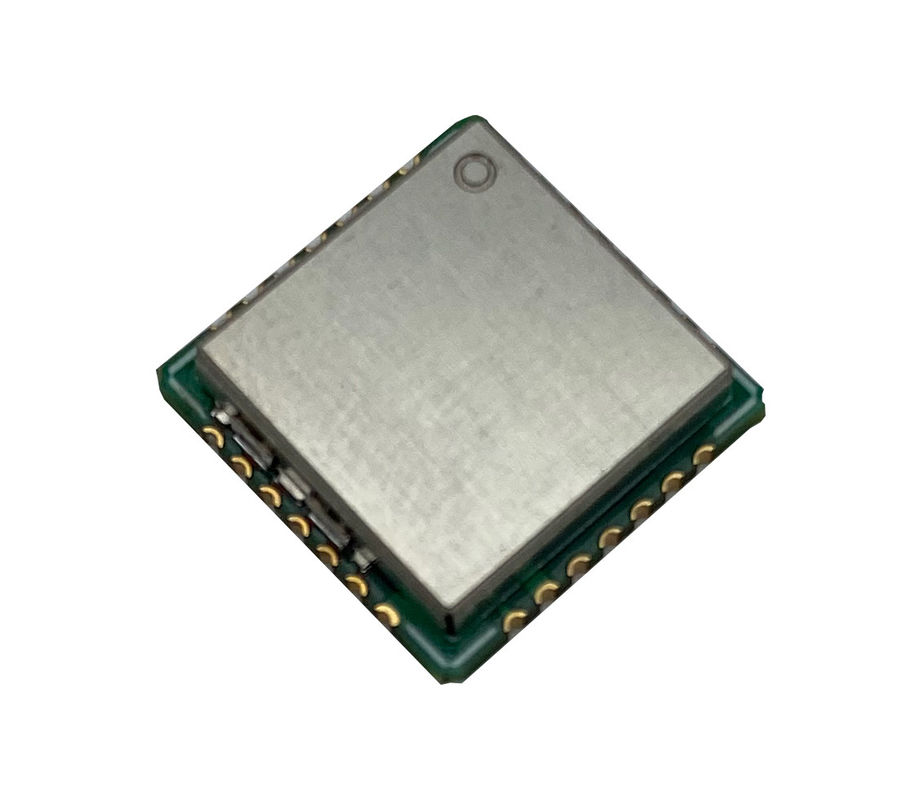

20dBm STM32WLE LoRa Gateway Module Cansec Wireless LRW32NA-C

Large Image : 20dBm STM32WLE LoRa Gateway Module Cansec Wireless LRW32NA-C

Product Details:

Place of Origin:	Beijing
Brand Name:	Cansec Wireless
Model Number:	LRW32NA-C

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	USD5.5$ Per Piece
Packaging Details:	Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time:	5-8 weeks
Payment Terms:	T/T
Supply Ability:	20000000 units per year

Contact Now

20dBm STM32WLE LoRa Gateway Module Cansec Wireless LRW32NA-C

Description

Chipset:	ST-STM32WLE	Size:	13132.8mm
Operating Temperature:	-20 - 70℃	Operating Voltage:	2.5-3.7V
TX Power:	20dBm	RX Sensitivity:	-140dBm
Sleep Current Consumption:	2μA	Interface:	SPI,UART
Modulation:	Lo-Ra	Antenna:	N/A
Highlight:	STM32WLE LoRa Gateway Module , Cansec Wireless LRW32NA-C , 20dBm LoRa Gateway Module

20dBm STM32WLE LoRa Gateway Module Cansec Wireless LRW32NA-C 0

IoT Industrial Solution Small Size Wearable Cansec Wireless Receiver Module LRW32Na-C St-Stm32Wle IoT LoRa Gateway Module Base

Parameter		Min	Typ	Max	Unit
Operating Voltage		2.5	3.3	3.7	V
Operating Temperature		-20	-	70	°C
Current Consumption	Rest	-	2		uA
	Receive	-	12.5		mA
	Transmit Mode	-	120		mA
TX Power		-		20	dBm
RX Sensitivity		-	-140		dBm

IoT Industrial Solution Small Size Wearable Cansec Wireless Receiver Module LRW32Na-C St-Stm32Wle IoT LoRa Gateway Module Base

1. The LRW32 long-range wireless and ultra-low-power devices embed a powerful and ultra-low-power radio compliant LPWAN radio solution: LoRa® (only available in STM32WLE5xx), (G)FSK, (G)MSK, and BPSK. 2. The devices embed high-speed memories (Flash memory up to 256 Kbytes, SRAM up to 64 Kbytes), and an extensive range of enhanced I/Os and peripherals.
3. The devices also embed several protection mechanisms for embedded Flash memory and SRAM: readout protection, write protection and proprietary code readout protection.
4. These devices offer a 12-bit ADC, a 12-bit DAC low-power sample-and-hold, two ultra-low-power comparators associated with a high-accuracy reference voltage generator.
5. The devices embed a low-power RTC with a 32-bit sub-second wakeup counter, one 16-bit single-channel timer, two 16-bit four-channel timers (supporting motor control), one 32-bit four-channel timer and three 16-bit ultra-low-power timers.
6. These devices also embed two DMA controllers (7 channels each), allowing any transfer combination between memory (Flash memory, SRAM1 and SRAM2) and peripheral, using the DMAMUX1 for flexible DMA channel mapping.

Application

Smart meters

Supply chain and logistics

Building automation

Agricultural sensors

Smart cities

Retail store sensors

Asset tracking

Street lights

Parking sensors

Environmental sensors

Healthcare

Safety and security sensors

Remote control applications

FAQQ1: Are you a factory or trade company?A1: We are a professional factory with 25 years experience.

Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.

Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
