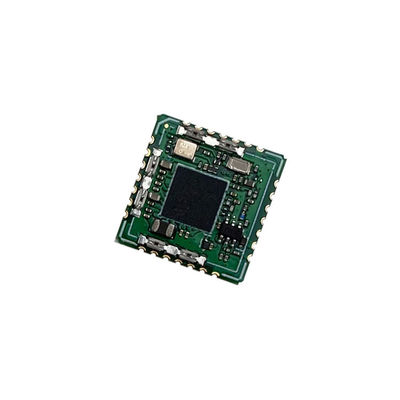

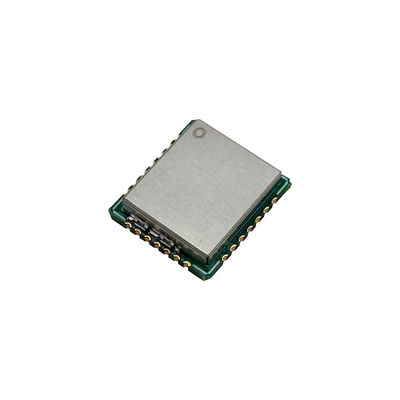

STM32WLE LoRa Module Iot Industrial Solution 20dBm Wifi Receiver Module

Large Image : STM32WLE LoRa Module Iot Industrial Solution 20dBm Wifi Receiver Module

Product Details:

Place of Origin:	Beijing
Brand Name:	Cansec Wireless
Model Number:	LRW32NA-C

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	USD5.5$ Per Piece
Packaging Details:	Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time:	5-8 weeks
Payment Terms:	T/T
Supply Ability:	20000000 units per year

Contact Now

STM32WLE LoRa Module Iot Industrial Solution 20dBm Wifi Receiver Module

Description

Chipset:	ST-STM32WLE	Application:	IoT Related Products
Size:	13132.8mm	Operating Temperature:	Re: -20 - 70℃
Operating Voltage:	2.5-3.7V	TX Power:	20dBm
RX Sensitivity:	-140dBm	Sleep Current Consumption:	2μA
Modulation:	Lo-Ra	Antenna:	Non
Highlight:	STM32WLE LoRa Module , LoRa Module Iot Industrial Solution , 20dBm Wifi Receiver Module

STM32WLE LoRa Module Iot Industrial Solution 20dBm Wifi Receiver Module

STM32WLE LoRa Module Iot Industrial Solution 20dBm Wifi Receiver Module 0

Parameter		Min	Typ	Max	Unit
Operating Voltage		2.5	3.3	3.7	V
Operating Temperature		-20	-	70	°C
Current Consumption	Rest	-	2		uA
	Receive	-	12.5		mA
	Transmit Mode	-	120		mA
TX Power		-		20	dBm
RX Sensitivity		-	-140		dBm

Feature

- Supports FSK, GFSK, MSK, GMSK, LoRa and OOK modulation modes

- Supports automatic RF signal detection, CAD mode and ultra-high-speed AFC

- Packets with CRC, up to 256 bytes

- Small package with double volume stamps

Description

1. The LRW32 long-range wireless and ultra-low-power devices embed a powerful and ultra-low-power radio compliant LPWAN radio solution: LoRa® (only available in STM32WLE5xx), (G)FSK, (G)MSK, and BPSK. 2. The devices embed high-speed memories (Flash memory up to 256 Kbytes, SRAM up to 64 Kbytes), and an extensive range of enhanced I/Os and peripherals.
3. The devices also embed several protection mechanisms for embedded Flash memory and SRAM: readout protection, write protection and proprietary code readout protection.
4. These devices also embed two DMA controllers (7 channels each), allowing any transfer combination between memory (Flash memory, SRAM1 and SRAM2) and peripheral, using the DMAMUX1 for flexible DMA channel mapping.

FAQ

Q1: Are you a factory or trade company?

A1: We are a professional factory with 25 years experience.

Q2: Can you accept OEM/ODM?

A2: Sure, we have rich OEM&ODM experience.

Q3: Do you have quality assurance?

A3; Each of our products has undergone quality testing and has two years of free after-sales service.
