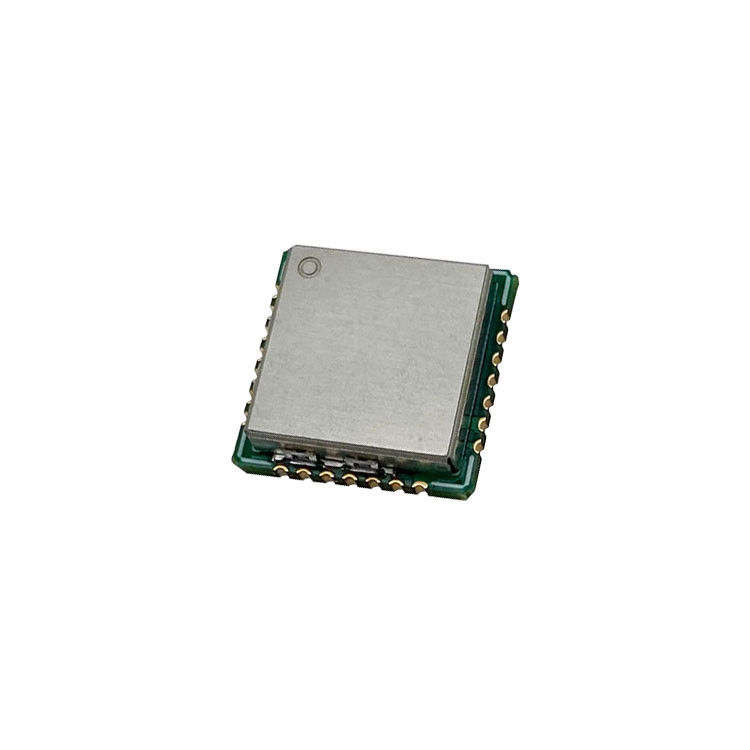

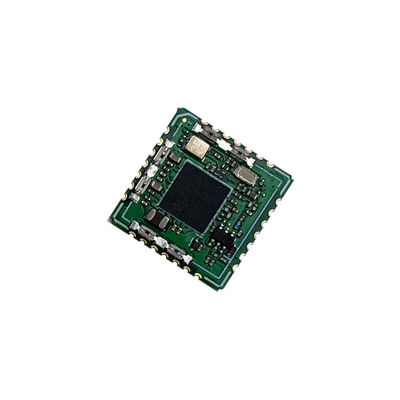

SPI UART Lora Wireless Module ST STM32WLE Long Range Radio Module

SPI UART Lora Wireless Module ST STM32WLE Long Range Radio Module
SPI UART Lora Wireless Module ST STM32WLE Long Range Radio Module SPI UART Lora Wireless Module ST STM32WLE Long Range Radio Module

Large Image :  SPI UART Lora Wireless Module ST STM32WLE Long Range Radio Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: LRW32NA-C
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD5.5$ Per Piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year
Contact Now

SPI UART Lora Wireless Module ST STM32WLE Long Range Radio Module

Description
Chipset: ST-STM32WLE Size: 13*13*2.8mm
Operating Temperature: -20 - 70℃ Operating Voltage: 2.5-3.7V
TX Power: 20dBm RX Sensitivity: -140dBm
Sleep Current Consumption: 2μA Interface: SPI,UART
Modulation: Lo-Ra Antenna: N/A
High Light:

SPI UART Lora Wireless Module

,

ST STM32WLE Long Range Radio Module

,

STM32WLE Lora Wireless Module

Iot Lora Control Module Wearable Small Size Cansec LRW32NA-C ST-STM32WLE Lora Wireless Module At Command AvailableSPI UART Lora Wireless Module ST STM32WLE Long Range Radio Module 0

Parameter
Min
Typ
Max
Unit
Operating Voltage
2.5
3.3
3.7
V
Operating Temperature
-20
-
70
°C
Current
Consumption
Rest
-
2

uA
Receive
-
12.5

mA
Transmit Mode
-
120

mA
TX Power
-

20
dBm
RX Sensitivity
-
-140

dBm



1. The LRW32 long-range wireless and ultra-low-power devices embed a powerful and ultra-low-power radio compliant LPWAN radio solution: LoRa® (only available in STM32WLE5xx), (G)FSK, (G)MSK, and BPSK.
2. The devices embed high-speed memories (Flash memory up to 256 Kbytes, SRAM up to 64 Kbytes), and an extensive range of enhanced I/Os and peripherals.
3. The devices also embed several protection mechanisms for embedded Flash memory and SRAM: readout protection, write protection and proprietary code readout protection.
4. The devices embed a low-power RTC with a 32-bit sub-second wakeup counter, one 16-bit single-channel timer, two 16-bit four-channel timers (supporting motor control), one 32-bit four-channel timer and three 16-bit ultra-low-power timers.
5. These devices also embed two DMA controllers (7 channels each), allowing any transfer combination between memory (Flash memory, SRAM1 and SRAM2) and peripheral, using the DMAMUX1 for flexible DMA channel mapping.

Application
Smart meters
Supply chain and logistics
Building automation
Agricultural sensors
Smart cities
Retail store sensors
Asset tracking
Street lights
Parking sensors
Environmental sensors
Healthcare
Safety and security sensors
Remote control applications

SPI UART Lora Wireless Module ST STM32WLE Long Range Radio Module 1

SPI UART Lora Wireless Module ST STM32WLE Long Range Radio Module 2

SPI UART Lora Wireless Module ST STM32WLE Long Range Radio Module 3
SPI UART Lora Wireless Module ST STM32WLE Long Range Radio Module 4

SPI UART Lora Wireless Module ST STM32WLE Long Range Radio Module 5

SPI UART Lora Wireless Module ST STM32WLE Long Range Radio Module 6

SPI UART Lora Wireless Module ST STM32WLE Long Range Radio Module 7

SPI UART Lora Wireless Module ST STM32WLE Long Range Radio Module 8


SPI UART Lora Wireless Module ST STM32WLE Long Range Radio Module 9
SPI UART Lora Wireless Module ST STM32WLE Long Range Radio Module 10
SPI UART Lora Wireless Module ST STM32WLE Long Range Radio Module 11
SPI UART Lora Wireless Module ST STM32WLE Long Range Radio Module 12
