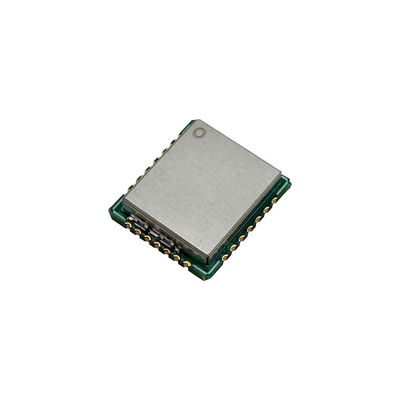

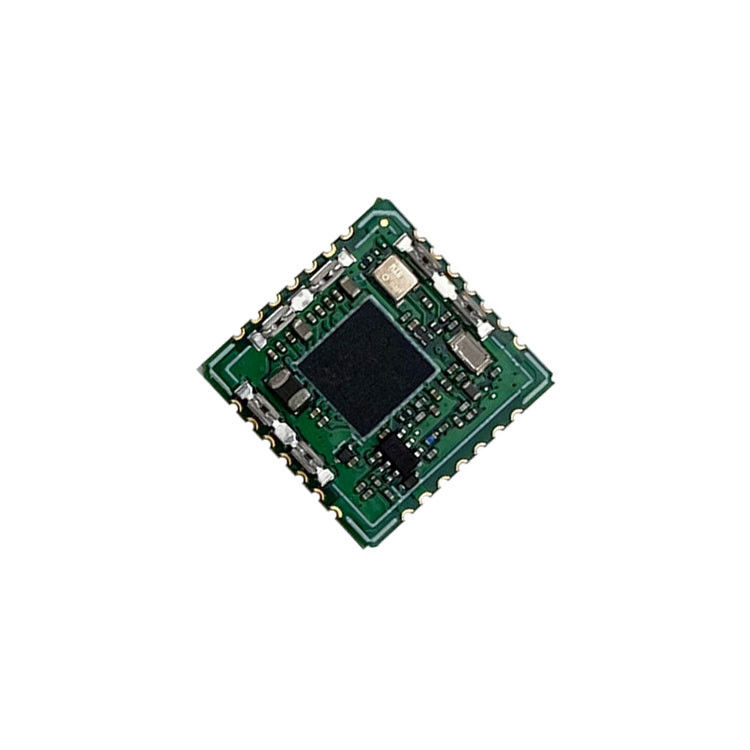

Cansec ST-STM32WLE Lora Wan Module LRW32NA-C Small Size

Cansec ST-STM32WLE Lora Wan Module LRW32NA-C Small Size
Cansec ST-STM32WLE Lora Wan Module LRW32NA-C Small Size Cansec ST-STM32WLE Lora Wan Module LRW32NA-C Small Size

Large Image :  Cansec ST-STM32WLE Lora Wan Module LRW32NA-C Small Size

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: LRW32NA-C
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD5.5$ Per Piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year

Cansec ST-STM32WLE Lora Wan Module LRW32NA-C Small Size

Description
Chipset: ST-STM32WLE Size: 13*13*2.8mm
Operating Temperature: -20 - 70℃ Operating Voltage: 2.5-3.7V
TX Power: 20dBm RX Sensitivity: -140dBm
Sleep Current Consumption: 2μA Product Type: RF Module
Working Frequency: 433/470/868/915MHz Application: Industrial,Various Long Range Comminication,meter Reading
High Light:

ST-STM32WLE Lora Wan Module

,

Cansec Lora Wan Module

,

Cansec LRW32NA-C

Cansec Lora Wan Module Small Size LRW32NA-C Low Power Consumption ST-STM32WLE Iot Lora Transmission Module

Cansec ST-STM32WLE Lora Wan Module LRW32NA-C Small Size 0

Parameter
Min
Typ
Max
Unit
Operating Voltage
2.5
3.3
3.7
V
Operating Temperature
-20
-
70
°C
Current
Consumption
Rest
-
2

uA
Receive
-
12.5

mA
Transmit Mode
-
120

mA
TX Power
-

20
dBm
RX Sensitivity
-
-140

dBm



The LRW32 long-range wireless and ultra-low-power devices embed a powerful and ultra-low-power radio compliant LPWAN radio solution: LoRa® (only available in STM32WLE5xx), (G)FSK, (G)MSK, and BPSK. The devices also embed several protection mechanisms for embedded Flash memory and SRAM: readout protection, write protection and proprietary code readout protection. These devices offer a 12-bit ADC, a 12-bit DAC low-power sample-and-hold, two ultra-low-power comparators associated with a high-accuracy reference voltage generator. These devices also embed two DMA controllers (7 channels each), allowing any transfer combination between memory (Flash memory, SRAM1 and SRAM2) and peripheral, using the DMAMUX1 for flexible DMA channel mapping.

Feature
- LoRa spread spectrum modulation technology
- Receive sensitivity as low as -141dBm
- Excellent resistance to blocking
- Support preamble detection
- Support half-duplex SPI communication
- Programmable bit rate up to 300kbps
- Supports automatic RF signal detection, CAD mode and ultra high-speed AFC
- Packets with CRC, up to 256 bytes
- Small package with double volume stamps


Cansec ST-STM32WLE Lora Wan Module LRW32NA-C Small Size 1

Cansec ST-STM32WLE Lora Wan Module LRW32NA-C Small Size 2

Cansec ST-STM32WLE Lora Wan Module LRW32NA-C Small Size 3
Cansec ST-STM32WLE Lora Wan Module LRW32NA-C Small Size 4

Cansec ST-STM32WLE Lora Wan Module LRW32NA-C Small Size 5

Cansec ST-STM32WLE Lora Wan Module LRW32NA-C Small Size 6

Cansec ST-STM32WLE Lora Wan Module LRW32NA-C Small Size 7

Cansec ST-STM32WLE Lora Wan Module LRW32NA-C Small Size 8


Cansec ST-STM32WLE Lora Wan Module LRW32NA-C Small Size 9
Cansec ST-STM32WLE Lora Wan Module LRW32NA-C Small Size 10
Cansec ST-STM32WLE Lora Wan Module LRW32NA-C Small Size 11
Cansec ST-STM32WLE Lora Wan Module LRW32NA-C Small Size 12
