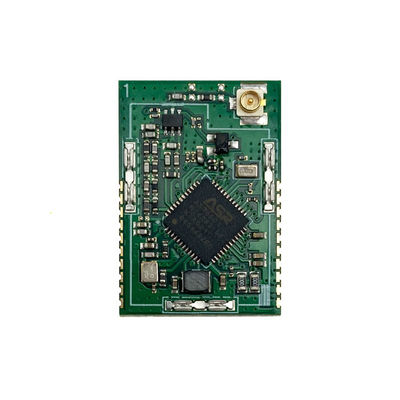

Antenna ASR6501 LoRa Module 434/470/915Mhz LoRa Communication Module

Antenna ASR6501 LoRa Module 434/470/915Mhz LoRa Communication Module
Antenna ASR6501 LoRa Module 434/470/915Mhz LoRa Communication Module Antenna ASR6501 LoRa Module 434/470/915Mhz LoRa Communication Module

Large Image :  Antenna ASR6501 LoRa Module 434/470/915Mhz LoRa Communication Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: ASR6501
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 4.90$ per piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year

Antenna ASR6501 LoRa Module 434/470/915Mhz LoRa Communication Module

Description
Chipset: ASR6501 Application: IoT
Size: 16*23*2.8mm Operating Temperature: -20 - 70℃
Operating Voltage: 1.8-3.7V TX Power: 21dBm
RX Sensitivity: -148dBm Sleep Current Consumption: 3μA
Frequency: 434, 868, 915 MHz
Highlight:

Antenna ASR6501 LoRa Module

,

915Mhz LoRa Communication Module

,

470Mhz LoRa Communication Module

Antenna ASR6501 LoRa Module 434/470/915Mhz LoRa Communication Module 0

Cansec Ipex Connector LRW2020 434/470/868/915Mhz 20dBm LoRa Communication Module Antena ASR6501 LoRa Module


Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
3.3
3.7
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode(Without RF Config Retention, with RTC)
-
3
4
uA
Receive mode
-
12
-
mA
Transmit Mode (@+20dBm, Carrier)
-
120
-
mA
TX Power (For Carrier)
-
20
21
dBm
RX Sensitivity (For Lora Modulation)
-
-
-140
dBm
Distance
2
Km



Cansec Ipex Connector LRW2020 434/470/868/915Mhz 20dBm LoRa Communication Module Antena ASR6501 LoRa Module



LRW2020UA-A module is designed based on SX1262 and MCU which is a general LoRa Wireless Communication Chipset.The module with an AT instructions firmware, easy to use, reduce the development process of personnel.



Features
LoRa Radio and LoRa Modem
Long range wireless applications
Programmable up to +20 dBm for RF output
Excellent blocking immunity
Low RX current
High sensitivity: down to ‐140dBm.



Antenna ASR6501 LoRa Module 434/470/915Mhz LoRa Communication Module 1Antenna ASR6501 LoRa Module 434/470/915Mhz LoRa Communication Module 2Antenna ASR6501 LoRa Module 434/470/915Mhz LoRa Communication Module 3

Antenna ASR6501 LoRa Module 434/470/915Mhz LoRa Communication Module 4

Antenna ASR6501 LoRa Module 434/470/915Mhz LoRa Communication Module 5

Antenna ASR6501 LoRa Module 434/470/915Mhz LoRa Communication Module 6

Antenna ASR6501 LoRa Module 434/470/915Mhz LoRa Communication Module 7

Antenna ASR6501 LoRa Module 434/470/915Mhz LoRa Communication Module 8

Antenna ASR6501 LoRa Module 434/470/915Mhz LoRa Communication Module 9
Antenna ASR6501 LoRa Module 434/470/915Mhz LoRa Communication Module 10
Antenna ASR6501 LoRa Module 434/470/915Mhz LoRa Communication Module 11
Antenna ASR6501 LoRa Module 434/470/915Mhz LoRa Communication Module 12
