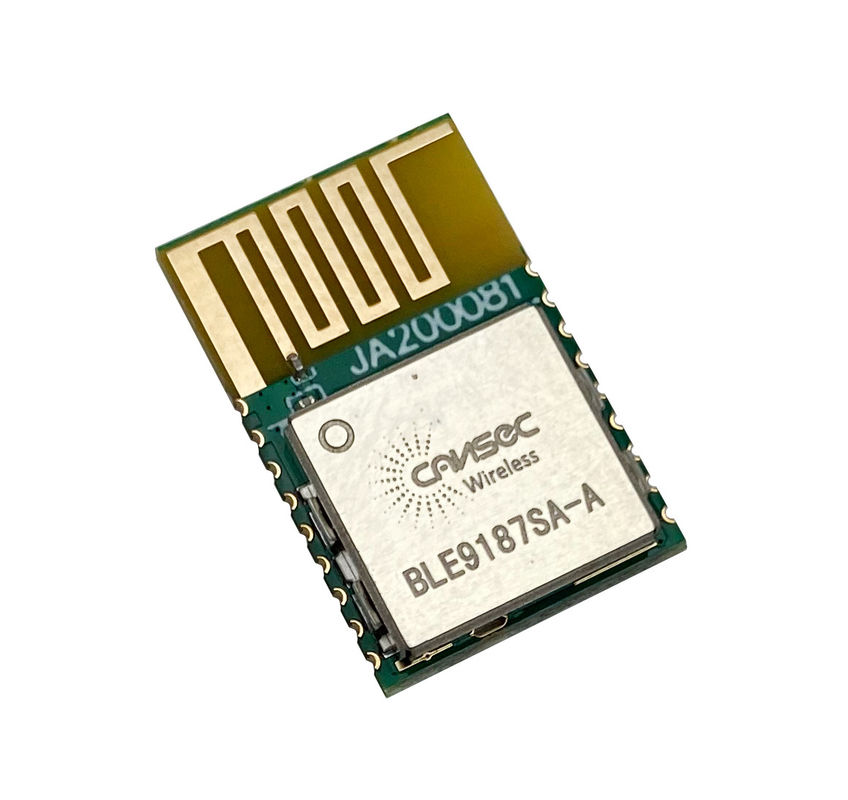

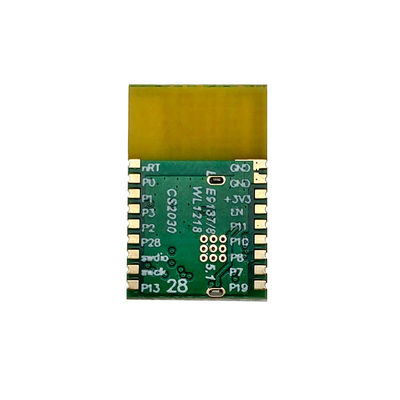

Ingchip Ing9187 RTS Module Wireless Cansec Ble 5.1 Module

Ingchip Ing9187 RTS Module Wireless Cansec Ble 5.1 Module
Ingchip Ing9187 RTS Module Wireless Cansec Ble 5.1 Module Ingchip Ing9187 RTS Module Wireless Cansec Ble 5.1 Module

Large Image :  Ingchip Ing9187 RTS Module Wireless Cansec Ble 5.1 Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: BLE9187SA-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 2.35$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

Ingchip Ing9187 RTS Module Wireless Cansec Ble 5.1 Module

Description
Size: 12×18×2.8mm TX Power: 4.7dBm
RX Sensitivity: -100dBm TX Current: 17mA
RX Current: 10mA Standby Current: 3uA
Antenna Type: PCB Antenna Range: 110meter Stable
Brand Name: Cansec Wireless
High Light:

Ingchip RTS Module

,

Ing9187 RTS Module

,

Wireless Cansec Ble 5.1 Module

Ingchip Ing9187 RTS Module Wireless Cansec Ble 5.1 Module 0

Low-Power Blue Tooth Module Low Cost Wireless Cansec Ble9187 Ingchip Ing9187 Ble5.1 Module

Low Power Consumption Iot Industrial Solution Cansec Blue Tooth Module Ingchip Ing9187 Ble5.1 Module



Parameter Min Typ Max Unit
Operating Voltage 1.8 3.3 3.6 V
Operating Temperature -20 - +70

Current

Consumption

Sleep Mode - 3   uA
Receive mode (MCU active): - 10 - mA
Transmit Mode(CW)( @ +6.5 dBm ,+3.3V) - 17 - mA
TX Power(CW) - 4.7   dBm
RX Sensitivity - -100 - dBm
Distance 110 m


Low-Power Blue Tooth Module Low-Cost Wireless Cansec Ble9187 Ingchip Ing9187 Ble5.1 Module

ING9187 is a fully integrated Bluetooth Low Energy SoC targeting Bluetooth 5.0 specification. It integrates INGCHIPS inhouse BLE5.0 IP including Modem, Link Layer Controller and Host. It also integrates a high performance 32bit RISC MCU, 512KB embedded flash, low power PMU, rich Peripherals, high performance and low power BLE RF transceiver. The Transmitter output power ranges from -28dBm to +6.5dBm, while receiver sensitivity is -102dBm under BLE5 long-range mode and -97dBm at 1M mode.

ING9187 provides fully open SDK, supports many IDE platforms like Keil, IAR, Segger, supports several program languages like C, C++, Nim, supports the major operating systems like Windows, Linux and MacOS, supports graphical project guideline and data editing, and embeds more than 30 open-source software application examples.

ING9187 hardware and software can be tailored for different user application scenario, such as extremely low power operation, accurate positioning, industrial interconnection, agricultural interconnection, mesh network, home sensing and so on.



Application

  • Indoor Positioning and Navigation
  • Medical Monitoring Positioning System
  • Industrial Interconnection, Data collection
  • Industrial Wearables
  • Smart Meter System
  • Bicycle and Automobile Application
  • Temperature and Humidity Collection in Agriculture and livestock Monitoring
  • Portable devices like printers
  • Fitness Equipment, Personal Wearables
  • Intelligent Household
  • Smart Building like Mesh Lightening
  • Home security and alarm
  • Smart Cities
  • Toy control, Keyboard and Mouse, etc.

Ingchip Ing9187 RTS Module Wireless Cansec Ble 5.1 Module 1

Ingchip Ing9187 RTS Module Wireless Cansec Ble 5.1 Module 2


Ingchip Ing9187 RTS Module Wireless Cansec Ble 5.1 Module 3
Ingchip Ing9187 RTS Module Wireless Cansec Ble 5.1 Module 4

NOTE: about the proper pin multiplexing options, please reference ING9187 datasheet

from http://ingchips.com/ for more details

Ingchip Ing9187 RTS Module Wireless Cansec Ble 5.1 Module 5

Ingchip Ing9187 RTS Module Wireless Cansec Ble 5.1 Module 6

Ingchip Ing9187 RTS Module Wireless Cansec Ble 5.1 Module 7Ingchip Ing9187 RTS Module Wireless Cansec Ble 5.1 Module 8

Ingchip Ing9187 RTS Module Wireless Cansec Ble 5.1 Module 9

Ingchip Ing9187 RTS Module Wireless Cansec Ble 5.1 Module 10

Ingchip Ing9187 RTS Module Wireless Cansec Ble 5.1 Module 11
