BLE5.1 3uA Ultra Low Power BlueTooth Module Transmitter And Receiver

BLE5.1 3uA Ultra Low Power BlueTooth Module Transmitter And Receiver

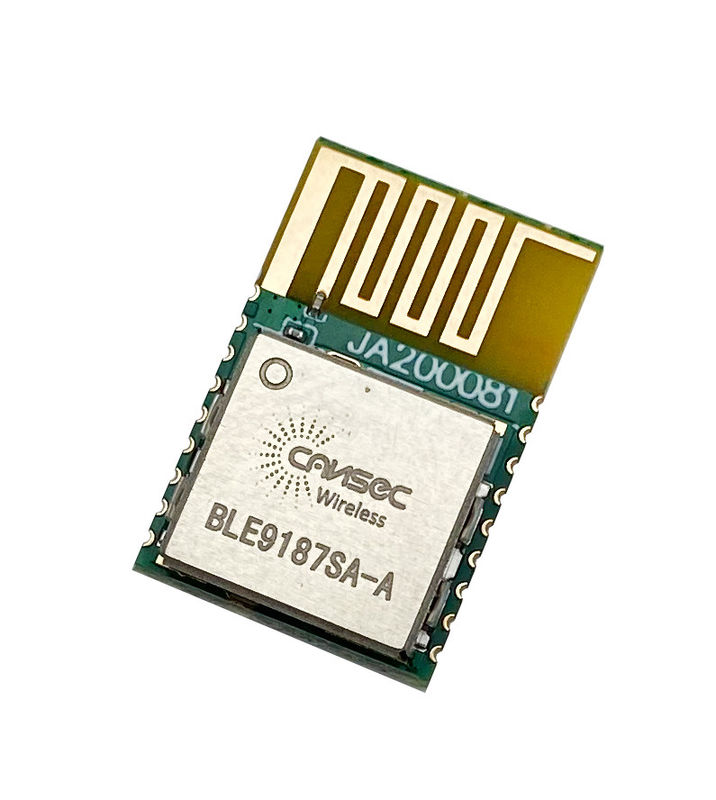

BLE5.1 3uA Ultra Low Power BlueTooth Module Transmitter And Receiver BLE5.1 3uA Ultra Low Power BlueTooth Module Transmitter And Receiver BLE5.1 3uA Ultra Low Power BlueTooth Module Transmitter And Receiver

Large Image :  BLE5.1 3uA Ultra Low Power BlueTooth Module Transmitter And Receiver

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: BLE9187SA-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 2.35$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

BLE5.1 3uA Ultra Low Power BlueTooth Module Transmitter And Receiver

Description
Size: 12×18×2.8mm TX Power: 4.7dBm
RX Sensitivity: -100dBm TX Current: 17mA
RX Current: 10mA Standby Current: 3uA
Antenna Type: PCB Antenna Application: Wearable/Smart Devices/IoT Related Applications
Chipset: ING9187 By ING Chip Protocol: Bluetooth 5
High Light:

Ble5.1 Ultra Low Power BlueTooth Module

,

3uA Ultra Low Power BlueTooth Module

,

ble wifi Transmitter And Receiver Module

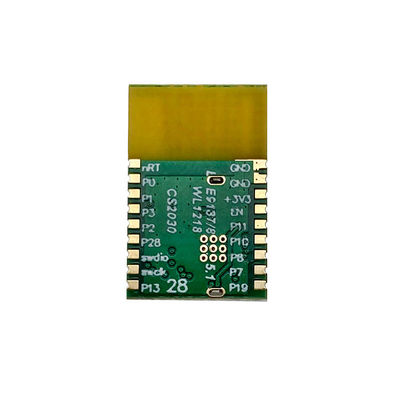

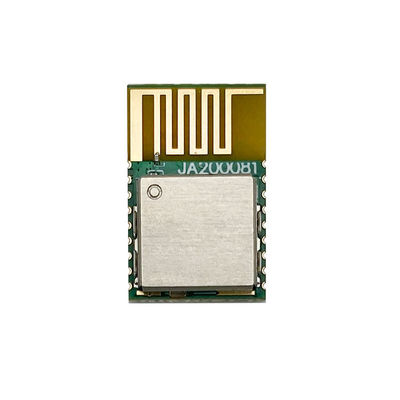

BLE5.1 3uA Ultra Low Power BlueTooth Module Transmitter And Receiver 0

Low-Power Blue Tooth Module Low Cost Wireless Cansec Ble9187 Ingchip Ing9187 Ble5.1 Module



Parameter Min Typ Max Unit
Operating Voltage 1.8 3.3 3.6 V
Operating Temperature -20 - +70

Current

Consumption

Sleep Mode - 3   uA
Receive mode (MCU active): - 10 - mA
Transmit Mode(CW)( @ +6.5 dBm ,+3.3V) - 17 - mA
TX Power(CW) - 4.7   dBm
RX Sensitivity - -100 - dBm
Distance 110 m


Low-Power Blue Tooth Module Low-Cost Wireless Cansec Ble9187 Ingchip Ing9187 Ble5.1 Module

ING9187 is a fully integrated Bluetooth Low Energy SoC targeting Bluetooth 5.0 specification. It integrates INGCHIPS inhouse BLE5.0 IP including Modem, Link Layer Controller and Host. It also integrates a high performance 32bit RISC MCU, 512KB embedded flash, low power PMU, rich Peripherals, high performance and low power BLE RF transceiver. The Transmitter output power ranges from -28dBm to +6.5dBm, while receiver sensitivity is -102dBm under BLE5 long-range mode and -97dBm at 1M mode.

ING9187 provides fully open SDK, supports many IDE platforms like Keil, IAR, Segger, supports several program languages like C, C++, Nim, supports the major operating systems like Windows, Linux and MacOS, supports graphical project guideline and data editing, and embeds more than 30 open-source software application examples.

ING9187 hardware and software can be tailored for different user application scenario, such as extremely low power operation, accurate positioning, industrial interconnection, agricultural interconnection, mesh network, home sensing and so on.



Features

• Fully compliant with BLE 5.0 specification

– Data rate 125Kb/s, 500Kb/s, 1Mb/s and 2Mb/s

– Long-range with S2 and S8

– Advertising extension

– Frequency hopping CSA#1 and CSA#2

• Link Layer Engine Features

– Support AMBA AHB interface

– Support 128-AES/CCM Encryption/Decryption

– Support link-layer Packet Processor of types

Advertising/ Data/Control

– Support packet processor of CRC and Whitening

– Support all BLE events formatting and

synchronization

– Support Extended/Periodic Advertising

– Support Multiple Advertising Sets (up to 1650 bytes

per set)

– Support Multiple Connections

– Support All State & Role Combinations

• Embedded Modem for modulation and de-modulation, Programmable channel filter, AGC, DC Offset Cancelation, and RSSI Measurement

• RF features:

– 2.400-2.484 GHz, with GFSK

– Sensitivity with -102dBm@125Kbps

– Output power -28dBm to 6.5dBm

– Analog RSSI with 1dBm resolution

– Automatic VCO & RX filter tuning

• Integrated power management

– Qualified POR and BOR

– One LDO

– One DCDC

– DPVFS low power engine

• Supply voltage range:

– External voltage supply 1.62-3.63V

– Core voltage: typical is 0.9V, with graceful degradation down to 0.6V for low power

• Typical Low Power modes:

– Idd during receving: 6mA

– Idd during transmitting(0dBm): 6.5mA

– Low power mode(300ms wake up): 20uA

– Low power mode(deep sleep with memory retention): 3uA

– Low power mode(deep sleep without memory retention):1uA

– Extreme sleep mode with RTC counter wake up and 0.6v core supply: 0.7uA

• Support different clocks for different operation modes:

– External 48M crystal

– External 32.768KHz crystal for ultra long time sleep

– Internal 32KHz RC oscillator for normal work

• Operation temperature range -40°~125° (junction temperature)

• Embedded 48MHz 32bit RISC MCU processor with 8KB cache and 2-wires SWD debug interface

• RTC Timer

• Embedded 512KB FLASH for embedded programming

• System 64KB SRAM for program

• Share 64KB SRAM for data

• General Purpose I/O pins for multi-uses

– UART0 for system controller

– GPIO/UART1/SPI0/SPI1/I2C0/I2C1/PWM for multiple peripheral and sensors

– Each pin can be mapped to different function

interface

• 10-bit ADC channel

• Two 32bits General-Purpose Timers

• One Watch Dog Timer

• On-chip boot loader

– Support OTA

• Single-Chip BLE solution

– ING9187 can run both Application and BLE Protocol Stacks

– Simple, clean and optimized API

• Configurable software to satisfy flexible application scenario. Support all device classes Broadcaster, Central, Observer, Peripheral

• Provide SDK with 30+ reference example

– Standard SIG Mesh Solution

– Other typical applications, such as beacon, body temperature, Running speed, etc.

BLE5.1 3uA Ultra Low Power BlueTooth Module Transmitter And Receiver 1

BLE5.1 3uA Ultra Low Power BlueTooth Module Transmitter And Receiver 2


BLE5.1 3uA Ultra Low Power BlueTooth Module Transmitter And Receiver 3
BLE5.1 3uA Ultra Low Power BlueTooth Module Transmitter And Receiver 4

NOTE: about the proper pin multiplexing options, please reference ING9187 datasheet

from http://ingchips.com/ for more details

BLE5.1 3uA Ultra Low Power BlueTooth Module Transmitter And Receiver 5

BLE5.1 3uA Ultra Low Power BlueTooth Module Transmitter And Receiver 6

BLE5.1 3uA Ultra Low Power BlueTooth Module Transmitter And Receiver 7BLE5.1 3uA Ultra Low Power BlueTooth Module Transmitter And Receiver 8

BLE5.1 3uA Ultra Low Power BlueTooth Module Transmitter And Receiver 9

BLE5.1 3uA Ultra Low Power BlueTooth Module Transmitter And Receiver 10

BLE5.1 3uA Ultra Low Power BlueTooth Module Transmitter And Receiver 11
