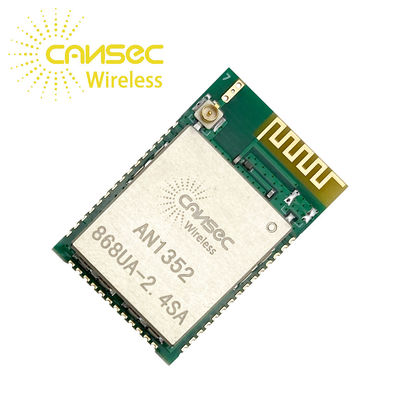

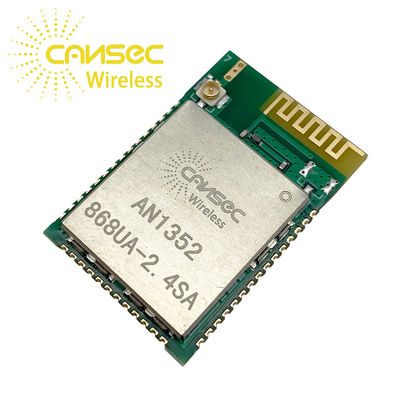

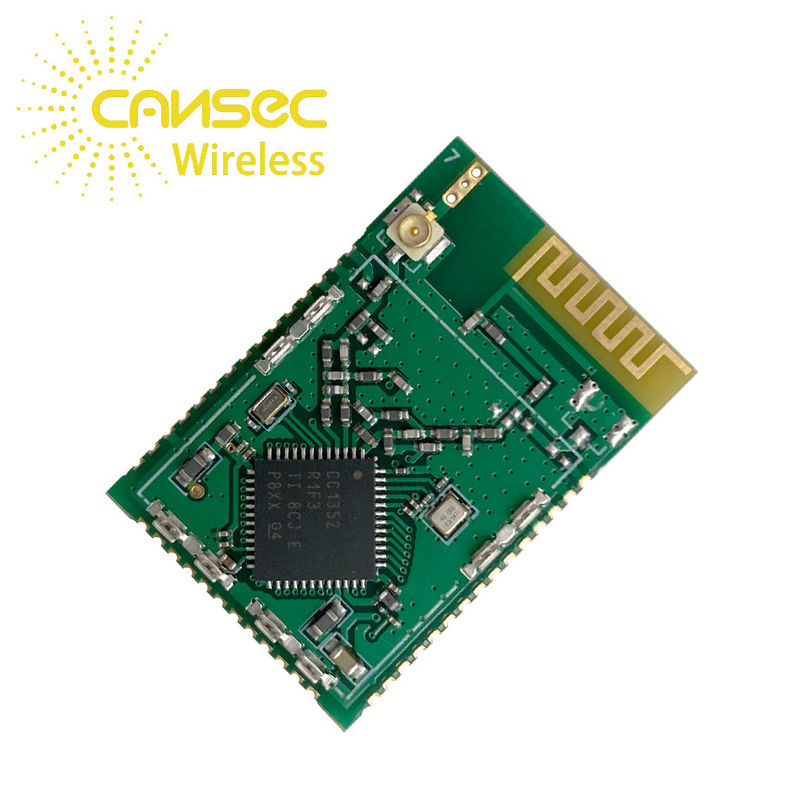

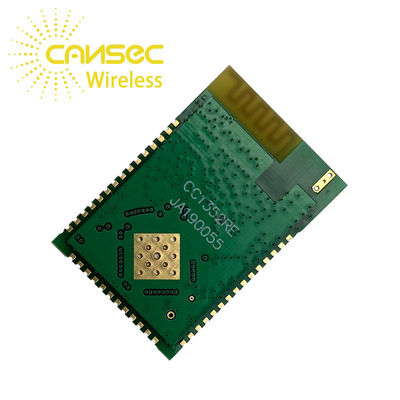

Sub 2.4GHz 868MHz Multi Protocol Module 3dBm CC1352 Module

Sub 2.4GHz 868MHz Multi Protocol Module 3dBm CC1352 Module
Sub 2.4GHz 868MHz Multi Protocol Module 3dBm CC1352 Module Sub 2.4GHz 868MHz Multi Protocol Module 3dBm CC1352 Module Sub 2.4GHz 868MHz Multi Protocol Module 3dBm CC1352 Module Sub 2.4GHz 868MHz Multi Protocol Module 3dBm CC1352 Module

Large Image :  Sub 2.4GHz 868MHz Multi Protocol Module 3dBm CC1352 Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: AN1352-UA-2.4SA
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 5.89$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

Sub 2.4GHz 868MHz Multi Protocol Module 3dBm CC1352 Module

Description
Size: 20*30*3mm TX Power: 868MHz:12.5dBm /2.4G:3dBm
RX Sensitivity: 868MHz:-96dBm /2.4G:-96dBm TX Current: 868MHz:41mA /2.4G:11.1mA
RX Current: 868MHz:8.5mA /2.4G:8.5mA Standby Current: 868MHz:1μA /2.4G:1μA
Antenna Type: PCB Antenna/IPEX Connector Chipset: Cc1352 By TI
High Light:

Sub 2.4GHz Multi Protocol Module

,

868MHz Multi Protocol Module

,

3dBm CC1352 Module

Sub 2.4GHz 868MHz Multi Protocol Module 3dBm CC1352 Module 0
AN1352-UA-2.4SA Multi-Protocols Sub GHz & 2.4 GHz module with TI cc1352 chipset
Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
-
3.8
V
Operating Temperature
-40
-
85
°C
Supply current
TX
-
24.3
30
mA
RX
-
8.5
9

Sleep
-
0.1
-
uA
TX Power
-
-
13.5
dBm
Storage Temperature
-40
-
150
°C
2.4GHz
Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
-
3.8
V
Operating Temperature
-40
-
85
°C
Supply current
TX
-
8.2
11
mA
RX
-
8.5
9
Sleep
-
0.1
-
uA
TX Power

-
4
dBm
Storage Temperature
-40
-
150
°C



Sub 2.4GHz 868MHz Multi Protocol Module 3dBm CC1352 Module 1

Sub 2.4GHz 868MHz Multi Protocol Module 3dBm CC1352 Module 2

Sub 2.4GHz 868MHz Multi Protocol Module 3dBm CC1352 Module 3

Sub 2.4GHz 868MHz Multi Protocol Module 3dBm CC1352 Module 4

Sub 2.4GHz 868MHz Multi Protocol Module 3dBm CC1352 Module 5

Sub 2.4GHz 868MHz Multi Protocol Module 3dBm CC1352 Module 6

Sub 2.4GHz 868MHz Multi Protocol Module 3dBm CC1352 Module 7





Sub 2.4GHz 868MHz Multi Protocol Module 3dBm CC1352 Module 8

Sub 2.4GHz 868MHz Multi Protocol Module 3dBm CC1352 Module 9

Sub 2.4GHz 868MHz Multi Protocol Module 3dBm CC1352 Module 10
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
