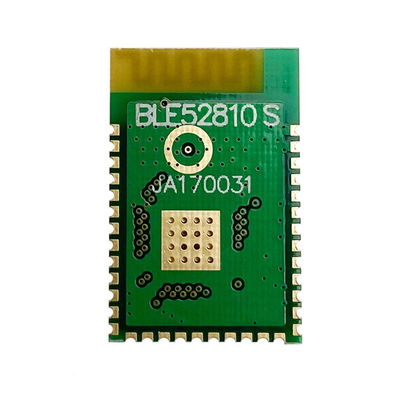

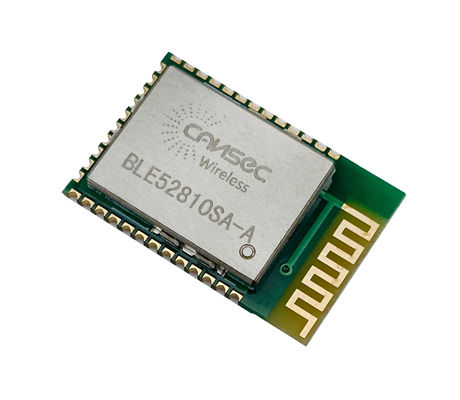

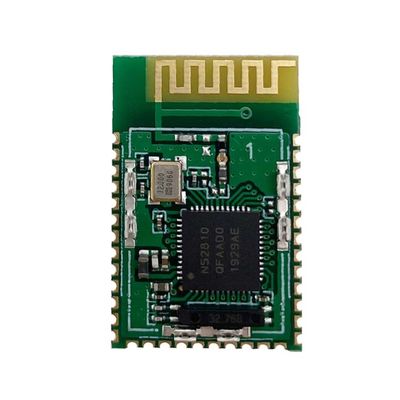

On Chip Nfc Tag Nordic RF Module BLE5.0 BlueTooth Plugin Module BLE52810SA-A

On Chip Nfc Tag Nordic RF Module BLE5.0 BlueTooth Plugin Module BLE52810SA-A
On Chip Nfc Tag Nordic RF Module BLE5.0 BlueTooth Plugin Module BLE52810SA-A On Chip Nfc Tag Nordic RF Module BLE5.0 BlueTooth Plugin Module BLE52810SA-A On Chip Nfc Tag Nordic RF Module BLE5.0 BlueTooth Plugin Module BLE52810SA-A

Large Image :  On Chip Nfc Tag Nordic RF Module BLE5.0 BlueTooth Plugin Module BLE52810SA-A

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: BLE52810SA-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 3.11$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

On Chip Nfc Tag Nordic RF Module BLE5.0 BlueTooth Plugin Module BLE52810SA-A

Description
Size: 15*22.8*2.8mm TX Power: 3dBm
RX Sensitivity: -96dBm TX Current: 22mA
RX Current: 15mA Standby Current: 1uA
Antenna Type: PCB Antenna Chipset: Nrf52810 By Nordic Conductor
Protocol: BLE5.0 Max Reach: 160 Meter
I/O: 36
High Light:

On Chip Nfc Tag Nordic RF Module

,

BLE5.0 BlueTooth Plugin Module

,

Nordic RF Module BLE5.0

On-Chip Nfc Tag For Out-Of-Band (Oob) Pairing Cansec Ble52810SA-A Nordic NRF52810-QFAA Blue Tooth Plugin Module For IoT

On Chip Nfc Tag Nordic RF Module BLE5.0 BlueTooth Plugin Module BLE52810SA-A 0
Parameter
Min
Typ
Max
Unit
Operating Voltage
1.7
-
3.6
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode
-
0.5
-
uA

Receive mode
-
15
-
mA

Transmit Mode
-
22
-
mA
TX Power (For Carrier)
-
3
-
dBm
RX Sensitivity (For Lora Modulation)
-
-
-96
dBm
Distance
160
m



On-Chip Nfc Tag For Out-Of-Band (OOB) Pairing Cansec Ble52810SA-A Nordic NRF52810-QFAA Blue Tooth Plugin Module For IoT

The BLE52810 module is based on nRF52810 SoC which is a powerful, highly flexible ultra-low power multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT and 2.4GHz ultra-low-power wireless applications.

"The nRF52810 system on chip (SoC) is the baseline member of the nRF52 Series SoC family. It meets the challenge of bringing advanced Bluetooth LE features and protocol concurrency to applications at a price point that makes adding Bluetooth LE connectivity to an application compelling. It is an ideal candidate for less complex applications and also as a Bluetooth LE connectivity processor in larger applications." Nordic Semiconductor


Key Feature

- Single-chip, highly flexible, 2.4GHz multi-protocol SoC

- 32-bit ARM Cortex-M4 Processor

- 1.7v to 3.6v operation

- Support concurrent Bluetooth low energy / ANTprotocol operation

- On-Chip NFC tag for Out-of-Band (OOB) Pairing

- Up to +3dBm output power

- -96dBm sensitivity, Bluetooth low energy

- Thread-safe and run-time protected

- Event-driven API

- 2 data rates (2Mbps/1Mbps)

- PPI - maximum flexibility

- Power-efficient applications and code simplification

- Automated power management system with automatic power management of each peripheral

- Configurable I/O mapping for analog and digital I/O

- 3 x Master/ Slave SPI

- 2 x Two-wire interface (i2c)

- UART (RTS/CTS)

- 3 x PWM

- AES HW encryption

- 12-bit ADC

- Real-Time Counter (RTC)

- Digital microphone interface (PDM)


Application:
Internet of Things related device
Wearables
Smart Home Sensors
Voice-command smart remotes

Product Code:
BLE - 52810 - SA - A
Bluetooth - nRF52810 - SA: Strip antenna - PCB version A

On Chip Nfc Tag Nordic RF Module BLE5.0 BlueTooth Plugin Module BLE52810SA-A 1



On Chip Nfc Tag Nordic RF Module BLE5.0 BlueTooth Plugin Module BLE52810SA-A 2
On Chip Nfc Tag Nordic RF Module BLE5.0 BlueTooth Plugin Module BLE52810SA-A 3



On Chip Nfc Tag Nordic RF Module BLE5.0 BlueTooth Plugin Module BLE52810SA-A 4

On Chip Nfc Tag Nordic RF Module BLE5.0 BlueTooth Plugin Module BLE52810SA-A 5

On Chip Nfc Tag Nordic RF Module BLE5.0 BlueTooth Plugin Module BLE52810SA-A 6

On Chip Nfc Tag Nordic RF Module BLE5.0 BlueTooth Plugin Module BLE52810SA-A 7

On Chip Nfc Tag Nordic RF Module BLE5.0 BlueTooth Plugin Module BLE52810SA-A 8

On Chip Nfc Tag Nordic RF Module BLE5.0 BlueTooth Plugin Module BLE52810SA-A 9
