Product Details:
|
| Size: | 20*30*3mm | TX Power: | 868MHz:12.5dBm /2.4G:3dBm |
|---|---|---|---|
| RX Sensitivity: | 868MHz:-96dBm /2.4G:-96dBm | TX Current: | 868MHz:41mA /2.4G:11.1mA |
| RX Current: | 868MHz:8.5mA /2.4G:8.5mA | Standby Current: | 3μA |
| Antenna Type: | Chip Antenna/IPEX Connector | Chipset: | Cc2652 By TI |
| High Light: | ZigBee 3.0 Module,ZigBee Ble Module TI CC2652,zigbee 868mhz module |
||

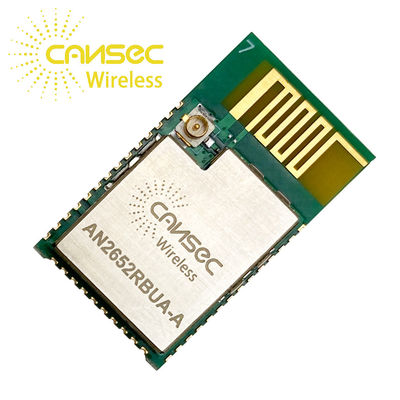

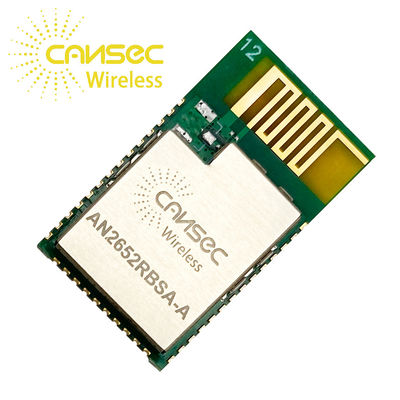

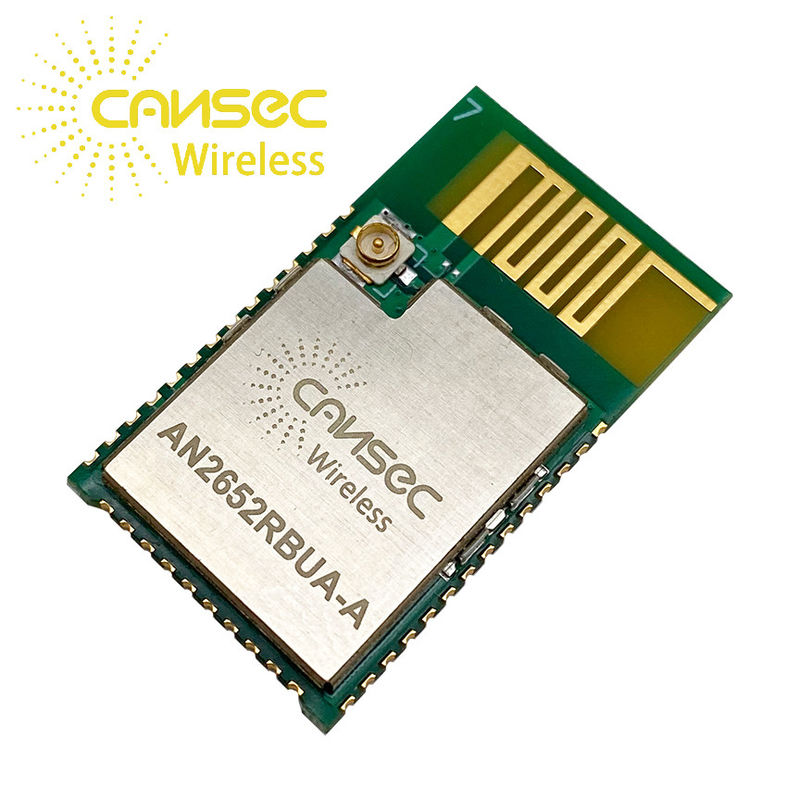

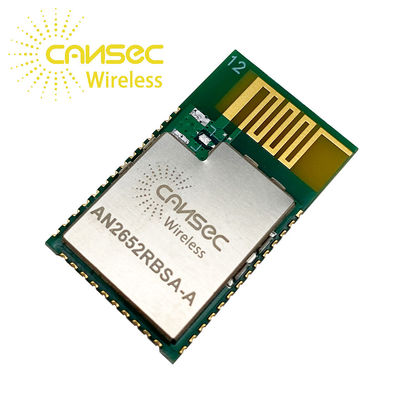

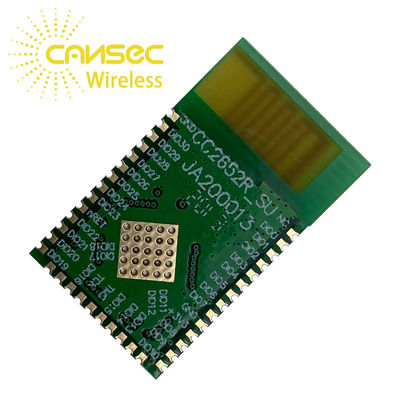

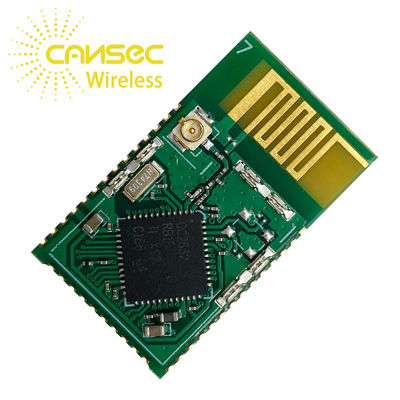

AN2652RB ZigBee 3.0 Thread BLE Multi-Protocols Module with TI CC2652 chipset
| Parameter | Min | Typ | Max | Unit | |
| Operating Voltage | 1.8 | - | 3.8 | V | |
| Operating Temperature | -20 | - | +70 | ℃ | |
|
Current Consumption |
Sleep Mode | - | 1 | uA | |
| Receive mode | - | 6.9 | - | mA | |
| Transmit Mode | - | 9.6 | - | mA | |
| TX Power (For Carrier) | - | 4 | dBm | ||
| RX Sensitivity (For Lora Modulation) | - | - | -97 | dBm | |
| Distance | 150 | m | |||
AN2652RB ZigBee 3.0 Thread BLE Multi-Protocols Module with TI CC2652 chipset
The CC2652R device is a multi-protocol wireless 2.4GHz MCU for Thread, Zigbee®, low-power Bluetooth® 5, IEEE 802.15.4g, IPv6-capable smart objects (6LoWPAN), Wi-SUN®, and proprietary systems, including TI 15.4-Stack.
The CC2652R device is a member of the SimpleLink™ MCU platform for cost-effective, ultra-low power, 2.4GHz and sub-1GHz RF devices. Very low active RF and microcontroller (MCU) current and sleep currents below 1μA and parity-protected RAM retention of up to 80KB provide excellent battery life and support energy harvesting on small coin cells Long-running work in the application.
