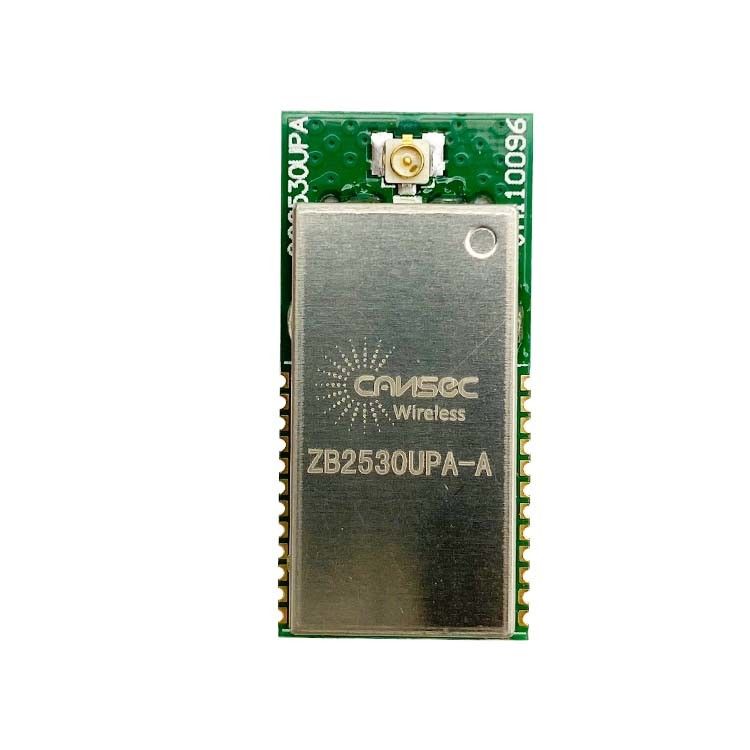

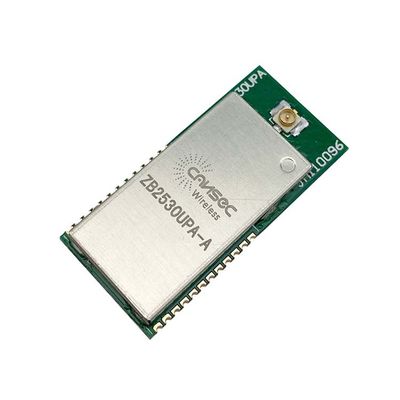

ZB2530UPA-A Ti CC2530 ZigBee IO Module Smart Door Lock

ZB2530UPA-A Ti CC2530 ZigBee IO Module Smart Door Lock
ZB2530UPA-A Ti CC2530 ZigBee IO Module Smart Door Lock ZB2530UPA-A Ti CC2530 ZigBee IO Module Smart Door Lock

Large Image :  ZB2530UPA-A Ti CC2530 ZigBee IO Module Smart Door Lock

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: ZB2530UPA-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 3.48$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

ZB2530UPA-A Ti CC2530 ZigBee IO Module Smart Door Lock

Description
Size: 31.6×15×3mm TX Power: 20dBm
RX Sensitivity: -97dBm TX Current: 150mA
RX Current: 32mA Standby Current: 2.5uA
Antenna Type: PCB Antenna Chipset: Cc2530
High Light:

CC2530 ZigBee IO Module

,

Ti ZigBee IO Module

,

ZB2530UPA-A ZigBee Module

ZB2530UPA-A Ti CC2530 ZigBee IO Module Smart Door Lock 0

FCC Approved Cansec Long Range Module IoT Solutions ZB2530UPA-A Ti CC2530 Zigbee IO Module Smart Door Lock

Parameter
Min
Max
Unit
Operating Voltage
2.0
3.6
V
TX Power
-
20
dBm
RX Sensitivity
-
-97
dBm
Standby Current
-
2.5
uA
Operating Frequency
2405
2483.5
MHz
Operating Temperature
-30
85
°C



FCC Approved Cansec Long Range Module IoT Solutions ZB2530UPA-A Ti CC2530 Zigbee IO Module Smart Door Lock



1. The CC2530 is TI's second-generation ZigBee® / IEEE 802.15.4 RF System-on-Chip (SoC) for the 2.4 GHz unlicensed ISM band. This chip enables industrial-grade applications by offering state-of-theart selectivity/co-existence, excellent link budget, and low voltage operation. The CC2531 is identical to the CC2530 with the addition of a USB interface.

2. CC2591 is a range extender for 2.4-GHz RF transceivers, transmitters and SoC products from Texas Instruments. CC2591 increases the link budget by providing a Power Amplifier (PA) for higher output power and a Low Noise Amplifier (LNA) for improved receiver sensitivity. CC2591 further contains RF switches, RF matching, and a balun for a seamless interface with the CC2530. This allows for simple design of high performance wireless applications.
3. This application note describes how to implement the CC2530 and the CC2591 in the same design. It further describes the expected performance from this combination as well as important factors to consider with respect to the layout and regulatory requirements. The combined CC2530 and CC2591 solution is suitable for systems targeting compliance with FCC CFR47 Part 15.
4. The RF front end of CC2530 is the same as the ones being used in CC2531. The presented results in this application note are therefore also valid for CC2531.


ZB2530UPA-A Ti CC2530 ZigBee IO Module Smart Door Lock 1

ZB2530UPA-A Ti CC2530 ZigBee IO Module Smart Door Lock 2

ZB2530UPA-A Ti CC2530 ZigBee IO Module Smart Door Lock 3

ZB2530UPA-A Ti CC2530 ZigBee IO Module Smart Door Lock 4

ZB2530UPA-A Ti CC2530 ZigBee IO Module Smart Door Lock 5ZB2530UPA-A Ti CC2530 ZigBee IO Module Smart Door Lock 6

ZB2530UPA-A Ti CC2530 ZigBee IO Module Smart Door Lock 7

ZB2530UPA-A Ti CC2530 ZigBee IO Module Smart Door Lock 8

ZB2530UPA-A Ti CC2530 ZigBee IO Module Smart Door Lock 9
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
