Product Details:
|
| Size: | 15*22.8*2.8mm | TX Power: | 3dBm |
|---|---|---|---|
| RX Sensitivity: | -96dBm | TX Current: | 22mA |
| RX Current: | 15mA | Standby Current: | 1uA |
| Antenna Type: | PCB Antenna | Chipset: | Nrf52810 |
| Working Tempurature: | -30~+85°C | Working Voltage: | 1.7~3.6V |
| Distance: | 160 Meter | ||
| High Light: | NRF52810 Bluetooth Transmitter Module,Nordic Bluetooth Transmitter Module,Nordic Transmitter Module |
||

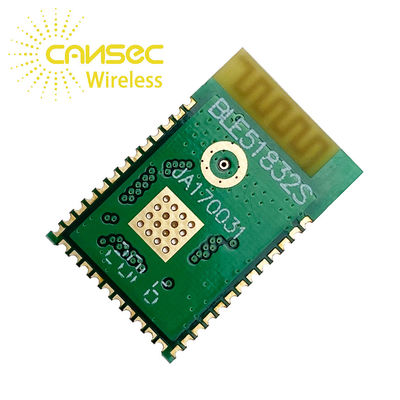

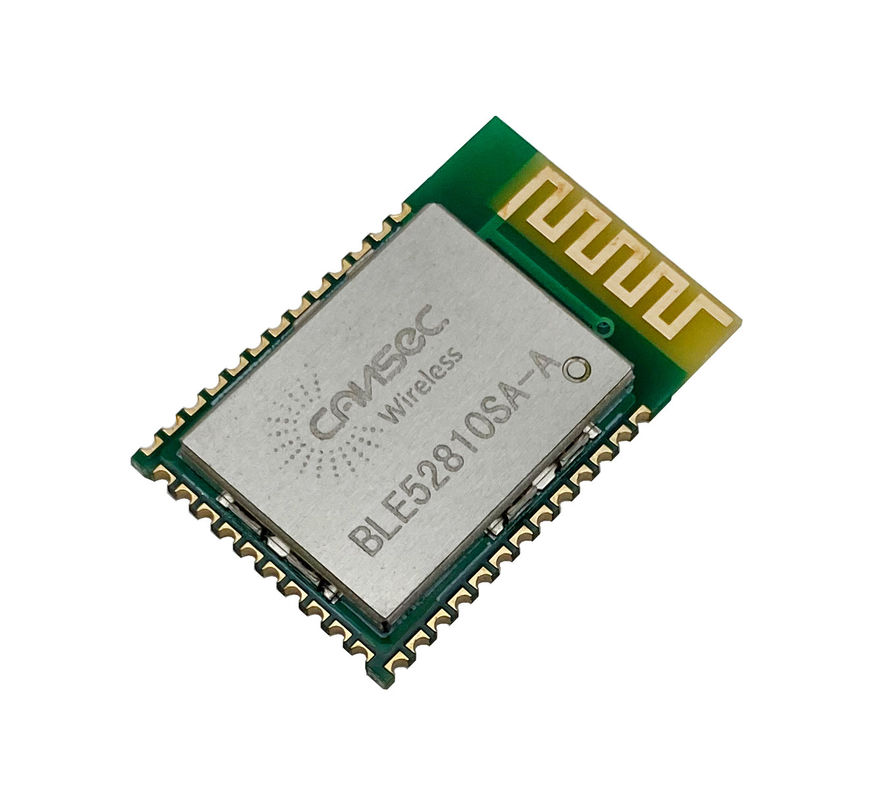

Pcb Antenna IoT Industrial Solution Cansec Blue Tooth Send Transmitter Module Nordic NRF52810-QFAA
Pcb Antenna IoT Industrial Solution Cansec Blue Tooth Send Transmitter Module Nordic NRF52810-QFAA
1. The BLE52810 module is based on nRF52810 SoC which is a powerful, highly flexible ultra-low power multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT and 2.4GHz ultra-low-power wireless applications.
Feature Highlight
- Single-chip, highly flexible, 2.4GHz multi-protocol SoC
- 32-bit ARM Cortex-M4 Processor
- 1.7v to 3.6v operation
- Support concurrent Bluetooth low energy / ANTprotocol operation
- On-Chip NFC tag for Out-of-Band (OOB) Pairing
- Up to +3dBm output power
- -96dBm sensitivity, Bluetooth low energy
- Thread-safe and run-time protected
- Event-driven API
- 2 data rates (2Mbps/1Mbps)
- PPI - maximum flexibility
- Power-efficient applications and code simplification
- Automated power management system with automatic power management of each peripheral
- Configurable I/O mapping for analog and digital I/O
- 3 x Master/ Slave SPI
- 2 x Two-wire interface (i2c)
- UART (RTS/CTS)
- 3 x PWM
- AES HW encryption
- 12-bit ADC
- Real-Time Counter (RTC)
- Digital microphone interface (PDM)
