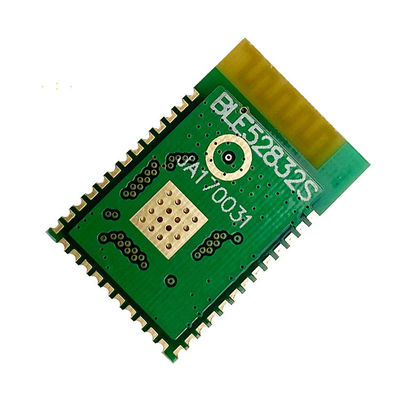

Nordic NRF52832-QFAA Bluetooth Low Energy Module BLE52832SA-A

Nordic NRF52832-QFAA Bluetooth Low Energy Module BLE52832SA-A
Nordic NRF52832-QFAA Bluetooth Low Energy Module BLE52832SA-A

Large Image :  Nordic NRF52832-QFAA Bluetooth Low Energy Module BLE52832SA-A

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: BLE52832SA-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 3.43$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year
Contact Now

Nordic NRF52832-QFAA Bluetooth Low Energy Module BLE52832SA-A

Description
Size: 15*22.8*2.8mm TX Power: 3dBm
RX Sensitivity: -96dBm TX Current: 22mA
RX Current: 15mA Standby Current: 1uA
Antenna Type: Chip Antenna Chipset: Nrf52832
Highlight:

NRF52832-QFAA Bluetooth Low Energy Module

,

Nordic Bluetooth Low Energy Module

,

BLE52832SA-A nordic ble module

Nordic NRF52832-QFAA Bluetooth Low Energy Module BLE52832SA-A 0

Cansec Smart IoT Module BLE52832SA-A Nordic NRF52832-QFAA Blue Tooth Modules Price For Smart Home IoT Beacon



Parameter
Min
Typ
Max
Unit
Operating Voltage
1.7
-
3.6
V
Operating Temperature
-20
-
+70
℃
Current
Consumption
Sleep Mode
-
1
-
uA

Receive mode
-
15
-
mA

Transmit Mode
-
22
-
mA
TX Power (For Carrier)
-
-
3
dBm
RX Sensitivity (For Lora Modulation)
-
-
-96
dBm
Distance
160
m



Cansec Smart IoT Module BLE52832SA-A Nordic NRF52832-QFAA Blue Tooth Modules Price For Smart Home IoT Beacon

1. The BLE52832 module is based on nRF52832 SoC which is a powerful, highly flexible ultra-low power multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT and 2.4GHz ultra low-power wireless applications.
2. The nRF52832 SoC is built around a 32-bit ARM® Cortex™-M4F CPU with 512kB + 64kB RAM.
3. The embedded 2.4GHz transceiver supports Bluetooth Low Energy, ANT and proprietary 2.4 GHz protocol stack.
4. It is on air compatible with the nRF51 Series, nRF24L and nRF24AP Series products from Nordic Semiconductor.

Application
  • Internet of Things (IoT)
  • Wearables
  • SmartHome sensors
  • Connected white goods
  • Computer peripherals
  • Voice-command smart remotes
  • A4WP ‘Rezence’ wireless charging
  • Beacons
  • Sports and fitness sensors and hubs
  • Connected health products
  • Smart watches
  • RC Toys
  • Interactive games
  • Building automation and sensor networks
Nordic NRF52832-QFAA Bluetooth Low Energy Module BLE52832SA-A 1

Nordic NRF52832-QFAA Bluetooth Low Energy Module BLE52832SA-A 2

Nordic NRF52832-QFAA Bluetooth Low Energy Module BLE52832SA-A 3Nordic NRF52832-QFAA Bluetooth Low Energy Module BLE52832SA-A 4

Nordic NRF52832-QFAA Bluetooth Low Energy Module BLE52832SA-A 5

Nordic NRF52832-QFAA Bluetooth Low Energy Module BLE52832SA-A 6Nordic NRF52832-QFAA Bluetooth Low Energy Module BLE52832SA-A 7Nordic NRF52832-QFAA Bluetooth Low Energy Module BLE52832SA-A 8Nordic NRF52832-QFAA Bluetooth Low Energy Module BLE52832SA-A 9

FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
