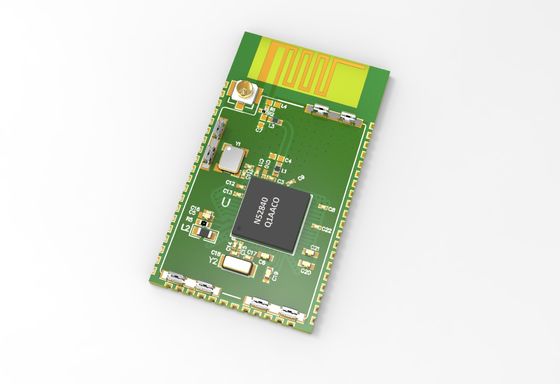

5V 2.4Ghz Nordic Bluetooth Module Ipex Connector Smart IoT BLE52840SA-B

5V 2.4Ghz Nordic Bluetooth Module Ipex Connector Smart IoT BLE52840SA-B
5V 2.4Ghz Nordic Bluetooth Module Ipex Connector Smart IoT BLE52840SA-B 5V 2.4Ghz Nordic Bluetooth Module Ipex Connector Smart IoT BLE52840SA-B

Large Image :  5V 2.4Ghz Nordic Bluetooth Module Ipex Connector Smart IoT BLE52840SA-B

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: BLE52840SA-B
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 5.14$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year
Contact Now

5V 2.4Ghz Nordic Bluetooth Module Ipex Connector Smart IoT BLE52840SA-B

Description
Size: 18.6*33.4*2.8mm TX Power: 6dBm
RX Sensitivity: -103dBm TX Current: 36mA
RX Current: 4.6mA Standby Current: 1.5uA
Antenna Type: Strip Antenna Or IPEX Connector Chipset: Nrf52840
High Light:

2.4Ghz Nordic Bluetooth Module

,

5v Nordic Bluetooth Module

,

BLE52840SA-B nordic ble module

5V 2.4Ghz Nordic Bluetooth Module Ipex Connector Smart IoT BLE52840SA-B 0

5V Cansec 2.4Ghz Ipex Connector Smart IoT Module BLE52840SA-B Nordic NRF52840 Blue Tooth Modules Price



Parameter
Min
Typ
Max
Unit
Operating Voltage
1.7
3.3
5.5
V
Operating Temperature
-20
-
+70
℃
Current
Consumption
Sleep Mode
-
1.5
-
uA

Receive mode
-
4.6
-
mA

Transmit Mode (@6dBm)
-
36
-
mA
TX Power (For Carrier)
-
-
6
dBm
RX Sensitivity (For Lora Modulation)
-
-
-103
dBm
Distance
180
m



5V Cansec 2.4Ghz Ipex Connector Smart IoT Module BLE52840SA-B Nordic NRF52840 Blue Tooth Modules Price

1. The BLE52840 module is designed based on nRF52840
2. The nRF52840 is fully multi-protocol capable with full protocol concurrency. It has protocol support for Bluetooth 5, Bluetooth mesh, Thread, Zigbee, 802.15.4, ANT and 2.4 GHz proprietary stacks.
3. The nRF52840 is built around the 32-bit ARM® Cortex™-M4 CPU with floating point unit running at 64 MHz.
4. It has NFC-A Tag for use in simplified pairing and payment solutions.
5. The ARM TrustZone® CryptoCell cryptographic unit is included on-chip and brings an extensive range of cryptographic options that execute highly efficiently independent of the CPU.
6. It has numerous digital peripherals and interfaces such as high speed SPI and QSPI for interfacing to external flash and displays, PDM and I2S for digital microphones and audio, and a full speed USB device for data transfer and power supply for battery recharging.
7. Exceptionally low energy consumption is achieved using a sophisticated on-chip adaptive power management system.
What is Bluetooth?
Bluetooth is a universal radio interface in the 2.45GHz frequency band that enables portable electronic devices to connect and communicate wirelessly via short-range, ad hoc networks. Each unit can simultaneously communicate with up to sever other units per piconet. Moreover, each unit can simultaneously belong to several piconets.

5V 2.4Ghz Nordic Bluetooth Module Ipex Connector Smart IoT BLE52840SA-B 1

5V 2.4Ghz Nordic Bluetooth Module Ipex Connector Smart IoT BLE52840SA-B 2

5V 2.4Ghz Nordic Bluetooth Module Ipex Connector Smart IoT BLE52840SA-B 3

5V 2.4Ghz Nordic Bluetooth Module Ipex Connector Smart IoT BLE52840SA-B 4

5V 2.4Ghz Nordic Bluetooth Module Ipex Connector Smart IoT BLE52840SA-B 5

5V 2.4Ghz Nordic Bluetooth Module Ipex Connector Smart IoT BLE52840SA-B 6

5V 2.4Ghz Nordic Bluetooth Module Ipex Connector Smart IoT BLE52840SA-B 7

5V 2.4Ghz Nordic Bluetooth Module Ipex Connector Smart IoT BLE52840SA-B 8

5V 2.4Ghz Nordic Bluetooth Module Ipex Connector Smart IoT BLE52840SA-B 9

5V 2.4Ghz Nordic Bluetooth Module Ipex Connector Smart IoT BLE52840SA-B 10
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
