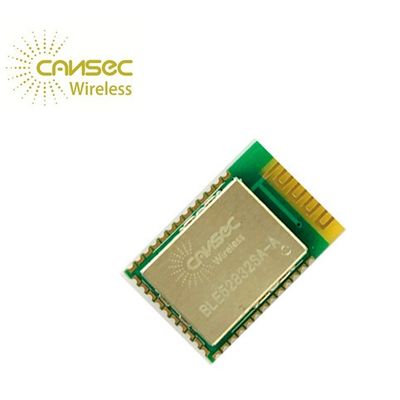

3dBm Nordic NRF52832 Ble 5.0 BLE52832SA-A Thread Safe And Run Time Protected

3dBm Nordic NRF52832 Ble 5.0 BLE52832SA-A Thread Safe And Run Time Protected
3dBm Nordic NRF52832 Ble 5.0 BLE52832SA-A Thread Safe And Run Time Protected

Large Image :  3dBm Nordic NRF52832 Ble 5.0 BLE52832SA-A Thread Safe And Run Time Protected

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: BLE52832SA-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 3.43$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

3dBm Nordic NRF52832 Ble 5.0 BLE52832SA-A Thread Safe And Run Time Protected

Description
Size: 15*22.8*2.8mm TX Power: 3dBm
RX Sensitivity: -96dBm TX Current: 22mA
RX Current: 15mA Standby Current: 1uA
Antenna Type: PCB Antenna Chipset: Nrf52832 By Nordic
Protocol: BLE5
High Light:

Nordic NRF52832 Ble 5.0

,

BLE52832SA-A

,

3dBm NRF52832 Ble 5.0

3dBm Nordic NRF52832 Ble 5.0 BLE52832SA-A Thread Safe And Run Time Protected 0

Thread Safe And Run-Time Protected Ble Low Energy IoT Module Cansec BLE52832SA-A Nordic NRF52832 5 Ble Module



Parameter
Min
Typ
Max
Unit
Operating Voltage
1.7
-
3.6
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode
-
1
-
uA

Receive mode
-
15
-
mA

Transmit Mode
-
22
-
mA
TX Power (For Carrier)
-
-
3
dBm
RX Sensitivity (For Lora Modulation)
-
-
-96
dBm
Distance
160
m



Thread Safe And Run-Time Protected Ble Low Energy IoT Module Cansec BLE52832SA-A Nordic NRF52832 5 Ble Module

1. The BLE52832 module is based on nRF52832 SoC which is a powerful, highly flexible ultra-low power multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT and 2.4GHz ultra low-power wireless applications.

2. The nRF52832 SoC is built around a 32-bit ARM® Cortex™-M4F CPU with 512kB + 64kB RAM.
3. The embedded 2.4GHz transceiver supports Bluetooth Low Energy, ANT and proprietary 2.4 GHz protocol stack.
4. It is on air compatible with the nRF51 Series, nRF24L and nRF24AP Series products from Nordic Semiconductor.
Feature Highlight

- Single-chip, highly flexible, 2.4 GHz

multi-protocol SoC

- 32-bit ARM Cortex-M4F Processor

- 1.7v to 3.6v operation

- 512kB flash + 64kB RAM

- Supports concurrent Bluetooth low

energy/ANT protocol operation

- On-chip NFC tag for Out-of-Band (OOB)

Pairing

- Up to +4dBm output power

- -96dBm sensitivity, Bluetooth Low Energy

- Thread-safe and run-time protected

- Event-driven API

- 2 data rates (2Mbps/1Mbps)

- PPI - maximum flexibility for

- power-efficient applications and code

simplification

- Automated power management system with automatic power management of each peripheral

- Configurable I/O mapping for analog and

digital I/O

- 3 x Master/Slave SPI

- 2 x Two-wire interface (I²C)

- UART (RTS/CTS)

- 3 x PWM

- AES HW encryption

- 12-bit ADC

- Real-Time Counter (RTC)

- Digital microphone interface (PDM)

3dBm Nordic NRF52832 Ble 5.0 BLE52832SA-A Thread Safe And Run Time Protected 1

3dBm Nordic NRF52832 Ble 5.0 BLE52832SA-A Thread Safe And Run Time Protected 2

3dBm Nordic NRF52832 Ble 5.0 BLE52832SA-A Thread Safe And Run Time Protected 33dBm Nordic NRF52832 Ble 5.0 BLE52832SA-A Thread Safe And Run Time Protected 4

3dBm Nordic NRF52832 Ble 5.0 BLE52832SA-A Thread Safe And Run Time Protected 5

3dBm Nordic NRF52832 Ble 5.0 BLE52832SA-A Thread Safe And Run Time Protected 63dBm Nordic NRF52832 Ble 5.0 BLE52832SA-A Thread Safe And Run Time Protected 73dBm Nordic NRF52832 Ble 5.0 BLE52832SA-A Thread Safe And Run Time Protected 83dBm Nordic NRF52832 Ble 5.0 BLE52832SA-A Thread Safe And Run Time Protected 9

FAQ

Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.

Bluetooth® wireless technology is the air interface intended to replace the cables connecting portable and fixed electronic equipment. Bluetooth device manufacturers have the flexibility to include optional core specification features to optimize and differentiate product offers.

Bluetooth is equated with the implementation specified by the Bluetooth Core Specification group of standards maintained by the Bluetooth Special Interest Group (SIG) industry consortium. Communications Toolbox™ Library for the Bluetooth Protocol functionality enables you to model Bluetooth Low Energy (BLE) communications system links, as specified in the Core System Package [Low Energy Controller volume], Specification Volume 6. It also enables you to explore variations on implementations for future evolution of the standard.
