Wireless Cc2652 Zigbee Multiprotocol Tx Module For Electricity Meters

Wireless Cc2652 Zigbee Multiprotocol Tx Module For Electricity Meters
Wireless Cc2652 Zigbee Multiprotocol Tx Module For Electricity Meters

Large Image :  Wireless Cc2652 Zigbee Multiprotocol Tx Module For Electricity Meters

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: AN2652RBUA-A / AN2652RBSA-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 4.40$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

Wireless Cc2652 Zigbee Multiprotocol Tx Module For Electricity Meters

Description
Protocol: ZigBee3.0 / BLE5 / Sub-GHz Name: Wireless Cc2652 Zigbee Multiprotocol Tx Module For Electricity Meters
TX Power: 868MHz:12.5dBm /2.4G:3dBm RX Sensitivity: 868MHz:-96dBm /2.4G:-96dBm
TX Current: 868MHz:41mA /2.4G:11.1mA RX Current: 868MHz:8.5mA /2.4G:8.5mA
Standby Current: 3μA Antenna Type: PCB Antenna/IPEX Connector
Chipset: Cc2652 By TI I/O: 29
High Light:

cc2652 zigbee multiprotocol tx module

,

electricity meters multiprotocol tx module

,

cc2652 zigbee multi protocol module

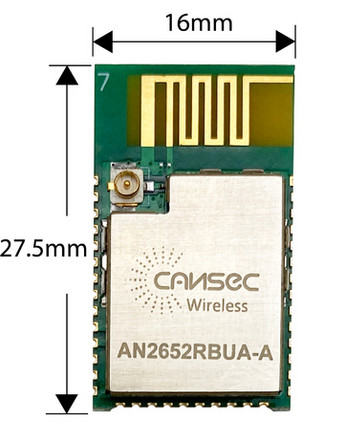

Wireless Cc2652 Zigbee Multiprotocol Tx Module For Electricity Meters 0
CC2652 PCB antenna cheap multiprotocol low power multiprotocol BLE zigbee multi protocol module

Wireless AN2652RBUA-A smart home products wireless rf transceiver module



brand Cansec Wireless
model AN2652RBUA-A / AN2652RBSA-A
Protocol ZigBee3.0 / BLE5 / Sub-GHz
TX Power 868MHz:12.5dBm /2.4G:3dBm
RX sensitivity 868MHz:-96dBm /2.4G:-96dBm
TX current 868MHz:41mA /2.4G:11.1mA
RX current 868MHz:8.5mA /2.4G:8.5mA
Standby current 3μA
Antenna type PCB Antenna/IPEX Connector
Chipset cc2652 by TI
I/O 29
feature low power



Parameter Min Typ Max Unit
Operating Voltage 1.8 - 3.8 V
Operating Temperature -20 - +70

Current

Consumption

Sleep Mode - 1   uA
Receive mode - 6.9 - mA
Transmit Mode - 9.6 - mA
TX Power (For Carrier) -   4 dBm
RX Sensitivity (For Lora Modulation) - - -97 dBm
Distance 150 m


The CC2652R device is a multi-protocol wireless 2.4GHz MCU for Thread, Zigbee®, low-power Bluetooth® 5, IEEE 802.15.4g, IPv6-capable smart objects (6LoWPAN), Wi-SUN®, and proprietary systems, including TI 15.4-Stack.
The CC2652R device is a member of the SimpleLink™ MCU platform for cost-effective, ultra-low power, 2.4GHz and sub-1GHz RF devices. Very low active RF and microcontroller (MCU) current and sleep currents below 1μA and parity-protected RAM retention of up to 80KB provide excellent battery life and support energy harvesting on small coin cells Long-running work in the application.

Applications


• Smart Grid and Automatic Meter Reading
– Water, Gas, and Electricity Meters
– Heat Cost Allocators
– Gateways
• Wireless Sensor Networks
– Long-Range Sensor Applications
• Industrial
– Asset Tracking and Management
– Factory Automation
– Remote Display
• Wireless Healthcare Applications
• Energy Harvesting Applications
• Electronic Shelf Label (ESL)
• Home and Building Automation
– Wireless Alarms and Security Systems
– Locks
– Lightning Control
– Motion Detectors
– Connected Appliances
– HVAC
– Garage Door Openers

Wireless AN2652RBUA-A smart home products wireless rf transceiver module

Wireless Cc2652 Zigbee Multiprotocol Tx Module For Electricity Meters 1
Wireless Cc2652 Zigbee Multiprotocol Tx Module For Electricity Meters 2

Wireless Cc2652 Zigbee Multiprotocol Tx Module For Electricity Meters 3

Wireless Cc2652 Zigbee Multiprotocol Tx Module For Electricity Meters 4
Wireless Cc2652 Zigbee Multiprotocol Tx Module For Electricity Meters 5
Wireless Cc2652 Zigbee Multiprotocol Tx Module For Electricity Meters 6

Wireless Cc2652 Zigbee Multiprotocol Tx Module For Electricity Meters 7
