Cc2652 Multi Protocol Module For Smart Grid And Automatic Meter Reading

Cc2652 Multi Protocol Module For Smart Grid And Automatic Meter Reading
Cc2652 Multi Protocol Module For Smart Grid And Automatic Meter Reading

Large Image :  Cc2652 Multi Protocol Module For Smart Grid And Automatic Meter Reading

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: AN2652RBUA-A / AN2652RBSA-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 4.40$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

Cc2652 Multi Protocol Module For Smart Grid And Automatic Meter Reading

Description
Protocol: ZigBee3.0 / BLE5 / Sub-GHz Name: Cc2652 Multi Protocol Module For Smart Grid And Automatic Meter Reading
TX Power: 868MHz:12.5dBm /2.4G:3dBm RX Sensitivity: 868MHz:-96dBm /2.4G:-96dBm
TX Current: 868MHz:41mA /2.4G:11.1mA RX Current: 868MHz:8.5mA /2.4G:8.5mA
Standby Current: 3μA Antenna Type: PCB Antenna/IPEX Connector
Chipset: Cc2652 By TI I/O: 29
High Light:

cc2652 multi protocol module

,

smart grid multi protocol module

,

cc2652 multiprotocol tx module

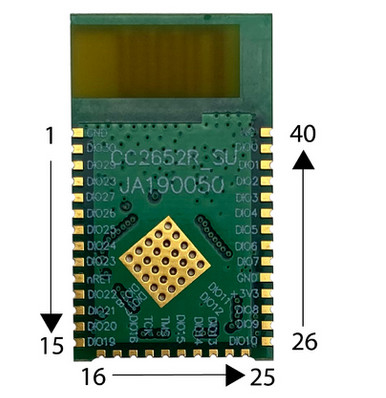

Cc2652 Multi Protocol Module For Smart Grid And Automatic Meter Reading 0

Cc2652 Multi Protocol Module For Smart Grid And Automatic Meter Reading


CC2652 PCB antenna cheap multiprotocol low power multiprotocol BLE zigbee multi protocol module

Wireless AN2652RBUA-A smart home products wireless rf transceiver module



The CC2652R device is a multi-protocol wireless 2.4GHz MCU for Thread, Zigbee®, low-power Bluetooth® 5, IEEE 802.15.4g, IPv6-capable smart objects (6LoWPAN), Wi-SUN®, and proprietary systems, including TI 15.4-Stack.
The CC2652R device is a member of the SimpleLink™ MCU platform for cost-effective, ultra-low power, 2.4GHz and sub-1GHz RF devices. Very low active RF and microcontroller (MCU) current and sleep currents below 1μA and parity-protected RAM retention of up to 80KB provide excellent battery life and support energy harvesting on small coin cells Long-running work in the application.



Parameter Min Typ Max Unit
Operating Voltage 1.8 - 3.8 V
Operating Temperature -20 - +70

Current

Consumption

Sleep Mode - 1   uA
Receive mode - 6.9 - mA
Transmit Mode - 9.6 - mA
TX Power (For Carrier) -   4 dBm
RX Sensitivity (For Lora Modulation) - - -97 dBm
Distance 150 m



Applications


• Smart Grid and Automatic Meter Reading
– Water, Gas, and Electricity Meters
– Heat Cost Allocators
– Gateways
• Wireless Sensor Networks
– Long-Range Sensor Applications
• Industrial
– Asset Tracking and Management
– Factory Automation
– Remote Display
• Wireless Healthcare Applications
• Energy Harvesting Applications
• Electronic Shelf Label (ESL)
• Home and Building Automation
– Wireless Alarms and Security Systems
– Locks
– Lightning Control
– Motion Detectors
– Connected Appliances
– HVAC
– Garage Door Openers

Wireless AN2652RBUA-A smart home products wireless rf transceiver module

Cc2652 Multi Protocol Module For Smart Grid And Automatic Meter Reading 1
Cc2652 Multi Protocol Module For Smart Grid And Automatic Meter Reading 2

Cc2652 Multi Protocol Module For Smart Grid And Automatic Meter Reading 3

Cc2652 Multi Protocol Module For Smart Grid And Automatic Meter Reading 4
Cc2652 Multi Protocol Module For Smart Grid And Automatic Meter Reading 5
Cc2652 Multi Protocol Module For Smart Grid And Automatic Meter Reading 6

Cc2652 Multi Protocol Module For Smart Grid And Automatic Meter Reading 7
