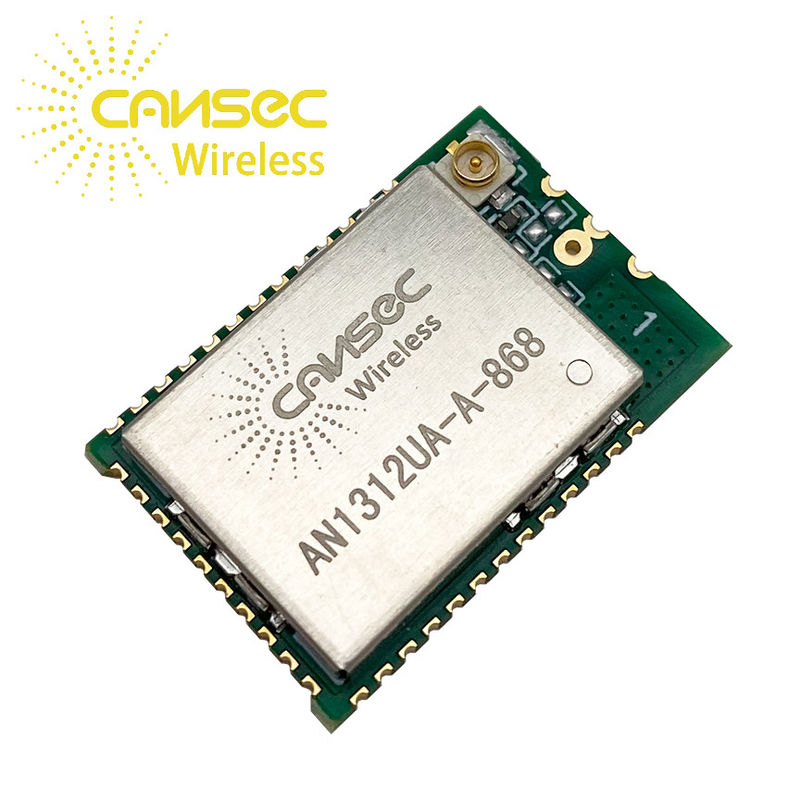

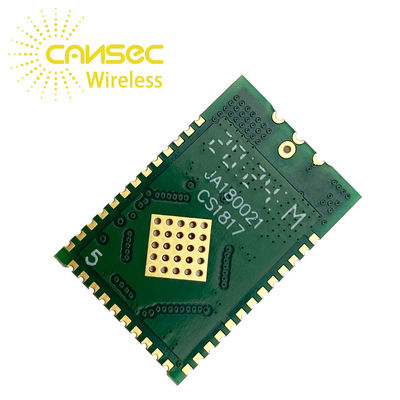

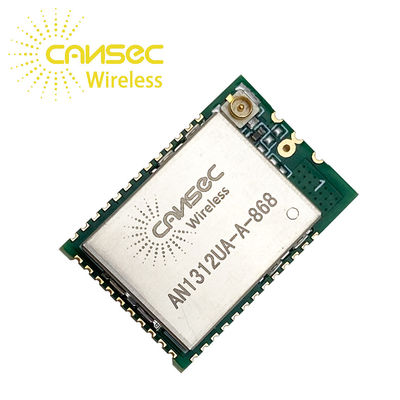

Chipset CC1312 Sub GHz Module AN1312UA-A 22mA TX Current

Chipset CC1312 Sub GHz Module AN1312UA-A 22mA TX Current
Chipset CC1312 Sub GHz Module AN1312UA-A 22mA TX Current Chipset CC1312 Sub GHz Module AN1312UA-A 22mA TX Current Chipset CC1312 Sub GHz Module AN1312UA-A 22mA TX Current

Large Image :  Chipset CC1312 Sub GHz Module AN1312UA-A 22mA TX Current

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: AN1312UA-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 5.46$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 5~8 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year
Contact Now

Chipset CC1312 Sub GHz Module AN1312UA-A 22mA TX Current

Description
Size: 15*22.8*2.8mm TX Power: 3dBm
RX Sensitivity: -96dBm TX Current: 22mA
RX Current: 15mA Standby Current: 1uA
Antenna Type: IPEX Connector Chipset: CC1312
High Light:

Chipset Cc1312 Sub GHz Module

,

Sub GHz Module AN1312UA-A

,

22mA CC1312 Module

AN1312UA-A Sub GHz module with Texas Instruments cc1312 chipset

Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
-
3.8
V
Operating Temperature
-20
-
+70
℃
Current
Consumption
Sleep Mode
-
1
-
uA
Receive mode
-
8
-
mA
Transmit Mode
-
27
-
mA
TX Power (For Carrier)
-

12
dBm
RX Sensitivity (For Lora Modulation)
-
-
-121
dBm
Distance
434 / 470MHz:400-500
868 / 915MHz:600-800
m



AN1312UA-A Sub GHz module with Texas Instruments cc1312 chipset



1. The AN1312 module is designed based on CC1312R. The CC1312R device is a Sub-1GHz wireless MCU targeting Wireless M-Bus, IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), KNX RF, Wi-SUN®, and proprietary systems, including theTI15.4-Stack.

2. The CC1312R device is a member of the SimpleLink™ MCU platform of cost-effective, ultra-low power,2.4-GHz and Sub-1 GHz RF devices. Very low active RF and microcontroller (MCU) currents, in addition to sub-μA sleep current with up to 80KB of parity protected RAM retention, provide excellent battery lifetime and allow operation on small coin-cell batteries and in energy-harvesting applications.
3. The CC1312R device combines a flexible, very low-power RF transceiver with a powerful 48-MHz Arm® Cortex®-M4F CPU in a platform supporting multiple physical layers and RF standards. A dedicated Radio Controller (Arm® Cortex®-M0) handles low-level RF protocol commands that are stored in ROM or RAM, thus ensuring ultra-low power and great flexibility.
The low power consumption of the CC1312R device does not come at the expense of RF performance; the CC1312R device has excellent sensitivity and robustness (selectivity and blocking) performance.

4. The CC1312R device is a highly integrated, true single-chip solution incorporating a complete RF system and an on-chip DC/DC converter. Sensors can be handled in a very low-power manner by a programmable, autonomous ultra-low power Sensor Controller CPU with 4KB of SRAM for program and data. The Sensor Controller, with its fast wake-up and ultra-low-power 2 MHz mode is designed for sampling, buffering, and processing both analogue and digital.



Chipset CC1312 Sub GHz Module AN1312UA-A 22mA TX Current 0

Chipset CC1312 Sub GHz Module AN1312UA-A 22mA TX Current 1

Chipset CC1312 Sub GHz Module AN1312UA-A 22mA TX Current 2

Chipset CC1312 Sub GHz Module AN1312UA-A 22mA TX Current 3

Chipset CC1312 Sub GHz Module AN1312UA-A 22mA TX Current 4

Chipset CC1312 Sub GHz Module AN1312UA-A 22mA TX Current 5

Chipset CC1312 Sub GHz Module AN1312UA-A 22mA TX Current 6

Chipset CC1312 Sub GHz Module AN1312UA-A 22mA TX Current 7

Chipset CC1312 Sub GHz Module AN1312UA-A 22mA TX Current 8
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
