S2SPI ST Spirit 2 Wireless IoT Module Sub GHz 434M CE Approved

S2SPI ST Spirit 2 Wireless IoT Module Sub GHz 434M CE Approved
S2SPI ST Spirit 2 Wireless IoT Module Sub GHz 434M CE Approved

Large Image :  S2SPI ST Spirit 2 Wireless IoT Module Sub GHz 434M CE Approved

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: S2SPI-HA-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 2.68$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 5~8 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

S2SPI ST Spirit 2 Wireless IoT Module Sub GHz 434M CE Approved

Description

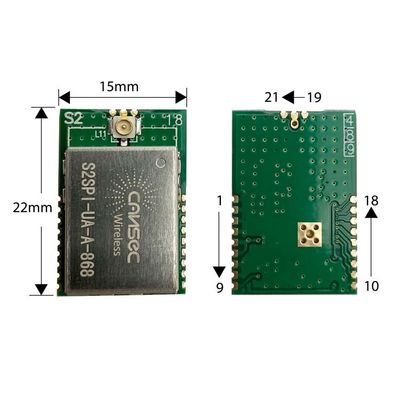

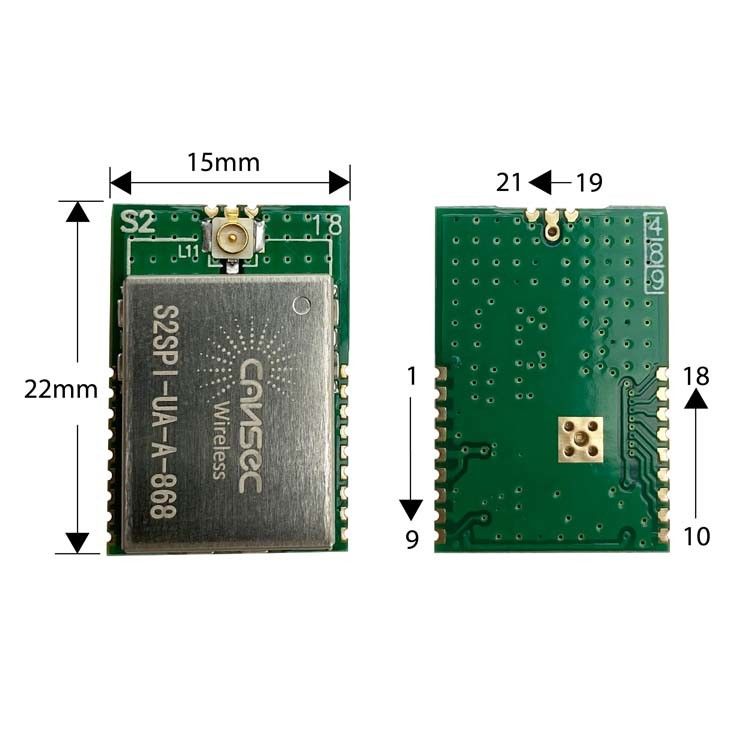

Size: 15mm*22mm*3.2mm TX Power: 14dBm
RX Sensitivity: -130dBm TX Current: 40mA
RX Current: 9mA Standby Current: 1uA
Antenna Type: IPEX Connector Chipset: S2-LP By ST
Working Voltage: 1.8~3.6V Range: 230 Meter
High Light:

ST Spirit 2 Wireless IoT Module

,

S2SPI Wireless IoT Module

,

IoT Module Sub GHz 434M

M-Bus Support Cansec CE Approved S2SPI ST-Spirit 2 Module Sub-GHz 434M//868M/915M Wireless IoT Control Module

S2SPI ST Spirit 2 Wireless IoT Module Sub GHz 434M CE Approved 0

868MHz

Parameter Min Typ Max Unit
Operating Voltage 1.8 - 3.6 V
Operating Temperature -20 - +70

Current

Consumption

Sleep Mode - - 1 uA
Receive mode - 8 9 mA
Transmit Mode - 38 40 mA
TX Power (For Carrier) - - 14 dBm
RX Sensitivity (For Lora Modulation) - - -130 dBm
Distance

HA:110

UA:230

m



434MHz

Parameter Min Typ Max Unit
Operating Voltage 1.8 - 3.6 V
Operating Temperature -20 - +70

Current

Consumption

Sleep Mode - - 1 uA
Receive mode - 8.2 9 mA
Transmit Mode - 21 24 mA
TX Power (For Carrier) - - 14 dBm
RX Sensitivity (For Lora Modulation) - - -130 dBm
Distance

HA:110

UA:230

m





M-Bus Support Cansec CE Approved S2SPI ST-Spirit 2 Module Sub-GHz 434M//868M/915M Wireless IoT Control Module



Description

S2SPI-HA/UA/NA-A Module is designed based on S2-LP. S2-LP is a high performance ultra-low power RF transceiver, intended for RF wireless applications in the sub-1 GHz band. It is designed to operate in both the license-free ISM and SRD frequency bands at 433, 868 and 920 MHz, but can also be programmed to operate at other additional frequencies in the 430-470MHz, 860-940 MHz bands.

The S2-LP can be used in systems with channel spacing of 12.5/25 kHz enabling. The narrowband operations. The S2-LP shows an RF link budget higher than 140dB for long communication ranges and meets the regulatory requirements applicable in territories worldwide, including Europe, Japan, China and the USA.



Feature Highlight
  • Frequency bands:- 430-470 MHz - 860-940 MHz
  • Modulation schemes:- 2(G)FSK, 4(G)FSK - OOK, ASK
  • Air data rate from 0.3 to 500 kbps
  • Ultra-low power consumption:- 8 mA RX - 10 mA TX @ +10 dBm
  • Excellent performance of receiver sensitivity: down to -130 dBm
  • Excellent receiver selectivity and blocking
  • Programmable RF output power up to +16 dBm
  • Bit rate from 0.3 to 500 kbps
  • Programmable RX digital filter
  • Programmable channel spacing
  • Fast startup and frequency synthesizer settling time
  • Automatic frequency offset compensation, AGC and symbol timing recovery
  • More than 140 dB RF link budget
  • Battery indicator and low battery detector
  • RX and TX FIFO buffers
  • 4 wires SPI interface
  • Automatic packet acknowledgment and retransmission
  • Embedded timeout protocol engine
  • Antenna diversity algorithm
  • Fully integrated ultra-low power RC oscillator
  • Wake-up driven by internal timer or external event
  • Digital real time RSSI
  • Flexible packet length with dynamic payload length
  • Programmable preamble and SYNC word quality filtering and detection
  • Embedded CSMA/CA engine based on listen-before-talk systems
  • IEEE 802.15.4g hardware packet support with whitening, FEC, CRC and dual SYNC word detection
  • Wireless M-BUS supported
  • Enables operations in the SIGFOX™ networks
  • Operating temperature range:-20 °C to +70 °C

S2SPI ST Spirit 2 Wireless IoT Module Sub GHz 434M CE Approved 1

S2SPI ST Spirit 2 Wireless IoT Module Sub GHz 434M CE Approved 2

S2SPI ST Spirit 2 Wireless IoT Module Sub GHz 434M CE Approved 3

S2SPI ST Spirit 2 Wireless IoT Module Sub GHz 434M CE Approved 4

S2SPI ST Spirit 2 Wireless IoT Module Sub GHz 434M CE Approved 5S2SPI ST Spirit 2 Wireless IoT Module Sub GHz 434M CE Approved 6

S2SPI ST Spirit 2 Wireless IoT Module Sub GHz 434M CE Approved 7

S2SPI ST Spirit 2 Wireless IoT Module Sub GHz 434M CE Approved 8

S2SPI ST Spirit 2 Wireless IoT Module Sub GHz 434M CE Approved 9

S2SPI ST Spirit 2 Wireless IoT Module Sub GHz 434M CE Approved 10
