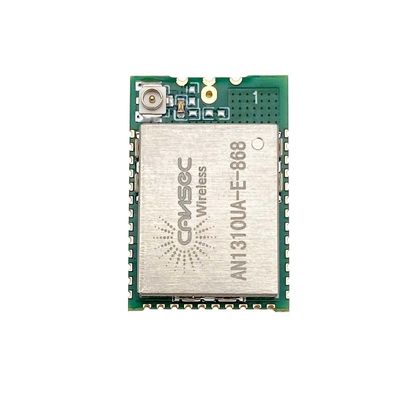

AN1310UA-E Sub GHz Module 13dBm Texas Instruments CC1310 Module

AN1310UA-E Sub GHz Module 13dBm Texas Instruments CC1310 Module
AN1310UA-E Sub GHz Module 13dBm Texas Instruments CC1310 Module AN1310UA-E Sub GHz Module 13dBm Texas Instruments CC1310 Module AN1310UA-E Sub GHz Module 13dBm Texas Instruments CC1310 Module

Large Image :  AN1310UA-E Sub GHz Module 13dBm Texas Instruments CC1310 Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: AN1310UA-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 4.12$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 5~8 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year
Contact Now

AN1310UA-E Sub GHz Module 13dBm Texas Instruments CC1310 Module

Description

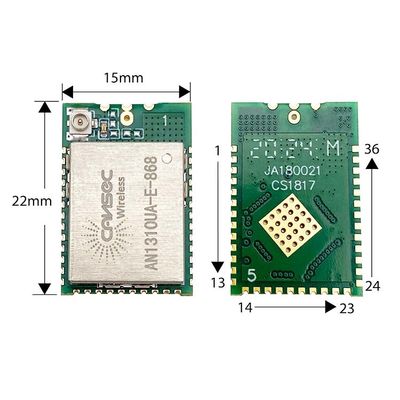

Size: 15mm*22mm*3.2mm TX Power: 13dBm
RX Sensitivity: -124dBm TX Current: 25mA
RX Current: 5.5mA Standby Current: 1uA
Antenna Type: IPEX Connector Chipset: CC1310
High Light:

AN1310UA-E Sub GHz Module

,

Sub GHz Module 13dBm

,

Texas Instruments CC1310 Module

AN1310UA-E Sub GHz module with Texas Instruments cc1310 chipset

AN1310UA-E Sub GHz Module 13dBm Texas Instruments CC1310 Module 0



Vbat=3.3V Fquency=434/470MHz
Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
-
3.8
V
Operating Temperature
-20
-
+70
℃


Current Consumption
Sleep Mode
-
-
1
uA
Receive mode
-
5.5
-
mA
Transmit Mode (For Carrier &&UFL Connector)
-
35
38
mA
TX Power (For Carrier)
-
13
14
dBm
RX Sensitivity
-
-
-124
dBm
Distance(434M)
400
m
Vbat=3.3V Fquency=868/915MHz
Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
-
3.8
V
Operating Temperature
-20
-
+70
℃


Current Consumption
Sleep Mode
-
-
1
uA
Receive mode
-
5.5
-
mA
Transmit Mode (For Carrier &&UFL Connector)
-
34
36
mA
TX Power (For Carrier)
-
13
14
dBm
RX Sensitivity
-
-
-115
dBm
Distance(868M)
700
m





AN1310UA-E Sub GHz module with Texas Instruments cc1310 chipset

1. The AN1310 module is designed based on CC1310F128. The CC1310 device is the first part in a Sub-1-GHz family of cost-effective, ultra low power wireless MCUs. The CC1310 device combines a flexible, very low power RF transceiver with a powerful 48-MHz Cortex-M3 microcontroller in a platform supporting multiple physical layers and RF standards. A dedicated Radio Controller (Cortex-M0) handles low-level RF protocol commands that are stored in ROM or RAM, thus ensuring ultra low power and flexibility. The low-power consumption of the CC1310 device does not come at the expense of RF performance; the CC1310 device has excellent sensitivity and robustness (selectivity and blocking) performance.
2. The CC1310 device is a highly integrated, true single-chip solution incorporating a complete RF system and an on-chip DC-DC converter.
3. Sensors can be handled in a very low-power manner by a dedicated autonomous ultra low power MCU that can be configured to handle analogue and digital sensors; thus the main MCU (Cortex-M3) is able to maximize sleep time.
4. The CC1310 power and clock management and radio systems require specific configuration and handling by software to operate correctly. This has been implemented in the TI RTOS, and it is therefore recommended that this software framework is used for all application development on the device. The complete TI-RTOS and device drivers are offered in source code free of charge.



AN1310UA-E Sub GHz Module 13dBm Texas Instruments CC1310 Module 1

AN1310UA-E Sub GHz Module 13dBm Texas Instruments CC1310 Module 2



AN1310UA-E Sub GHz Module 13dBm Texas Instruments CC1310 Module 3

AN1310UA-E Sub GHz Module 13dBm Texas Instruments CC1310 Module 4

AN1310UA-E Sub GHz Module 13dBm Texas Instruments CC1310 Module 5

AN1310UA-E Sub GHz Module 13dBm Texas Instruments CC1310 Module 6

AN1310UA-E Sub GHz Module 13dBm Texas Instruments CC1310 Module 7

AN1310UA-E Sub GHz Module 13dBm Texas Instruments CC1310 Module 8

AN1310UA-E Sub GHz Module 13dBm Texas Instruments CC1310 Module 9

AN1310UA-E Sub GHz Module 13dBm Texas Instruments CC1310 Module 10
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
