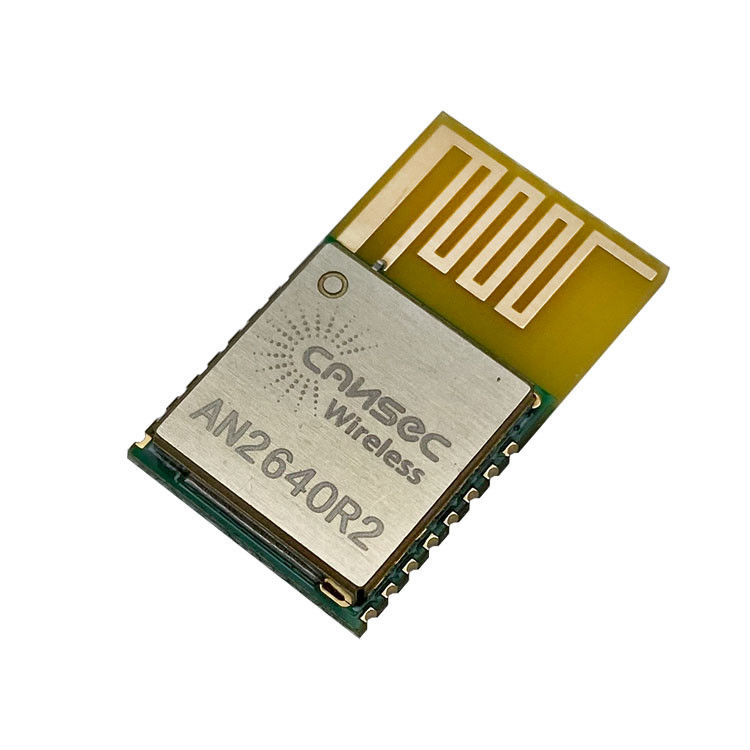

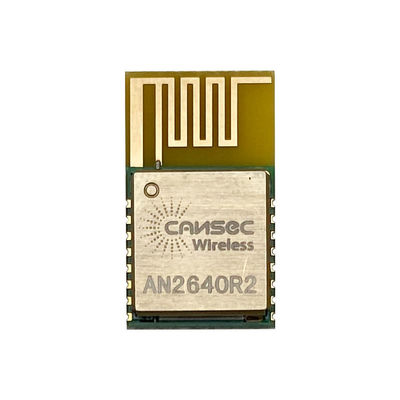

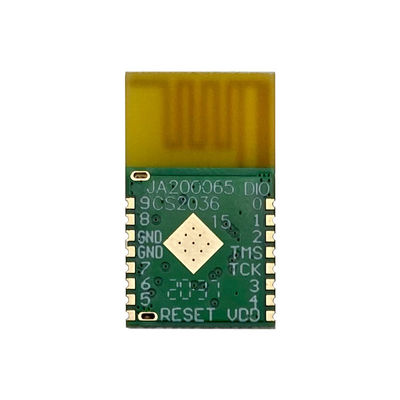

Cansec Wireless AN2640R2SA-K Ti CC2640R2 Module 12mA TX Current

Large Image : Cansec Wireless AN2640R2SA-K Ti CC2640R2 Module 12mA TX Current

Product Details:

Place of Origin:	Beijing
Brand Name:	Cansec Wireless
Model Number:	AN2640R2SA-K

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	USD 2.78$ per piece
Packaging Details:	Box for 1000 pieces Package size: 403420 cm Gross weight: 5.000 kg
Delivery Time:	3~6 weeks
Payment Terms:	T/T
Supply Ability:	2000000 pieces per year

Contact Now

Cansec Wireless AN2640R2SA-K Ti CC2640R2 Module 12mA TX Current

Description

Size:	12×20×2.7mm	TX Power:	3.7dBm
RX Sensitivity:	-97dBm	TX Current:	12mA
RX Current:	9mA	Standby Current:	1uA
Antenna Type:	PCB Antenna	Chipset:	Cc2640r2
High Light:	Cansec Wireless AN2640R2SA-K , Ti CC2640R2 Module , 12mA Ti CC2640R2

Cansec Wireless AN2640R2SA-K Ti CC2640R2 Module 12mA TX Current 0

Cansec Wireless AN2640R2SA-K Ti CC2640R2 Module 12mA TX Current

Parameter		Min	Typ	Max	Unit
Operating Voltage		1.8	-	3.8	V
Operating Temperature		-40	-	+85	°C
Current Consumption	Sleep Mode	-	0.1		uA
	Receive mode(@LDO mode)	-	9	-	mA
	Transmit Mode	-	12	-	mA
TX Power		-	3.7	5	dBm
RX Sensitivity		-	-90	-97	dBm
Distance		60			m

Cansec Wireless AN2640R2SA-K Ti CC2640R2 Module 12mA TX Current 1

1. AN2640R2SA‐K Module is designed based on CC2640R2 Bluetooth Smart (Bluetooth® 4.2 and Bluetooth 5) System‐on‐Chip, fully supports the single-mode Bluetooth Low Energy operation.2. The module provides the ability to either put your entire application into the integrated ARM Cortex M3 microcontroller or use the module in Network Processor mode in conjunction with the microcontroller of your choice.

Cansec Wireless AN2640R2SA-K Ti CC2640R2 Module 12mA TX Current 8

Cansec Wireless AN2640R2SA-K Ti CC2640R2 Module 12mA TX Current 9

FAQ

Q1: Are you a factory or trade company?

A1: We are a professional factory with 25 years experience.

Q2: Can you accept OEM/ODM?

A2: Sure, we have rich OEM&ODM experience.

Q3: Do you have quality assurance?

A3; Each of our products has undergone quality testing and has two years of free after-sales service.
