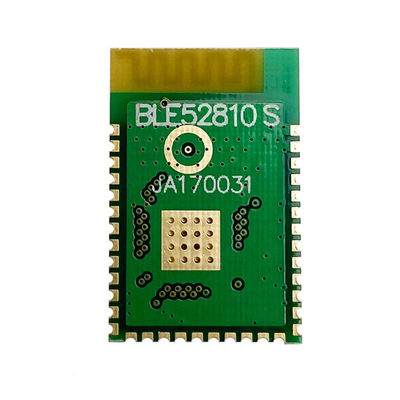

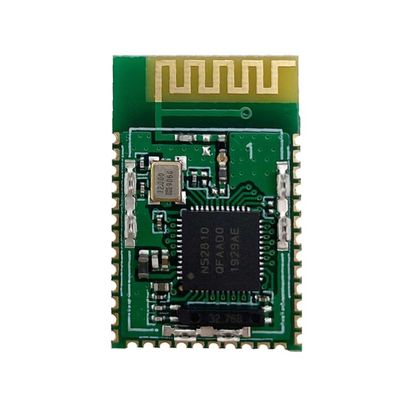

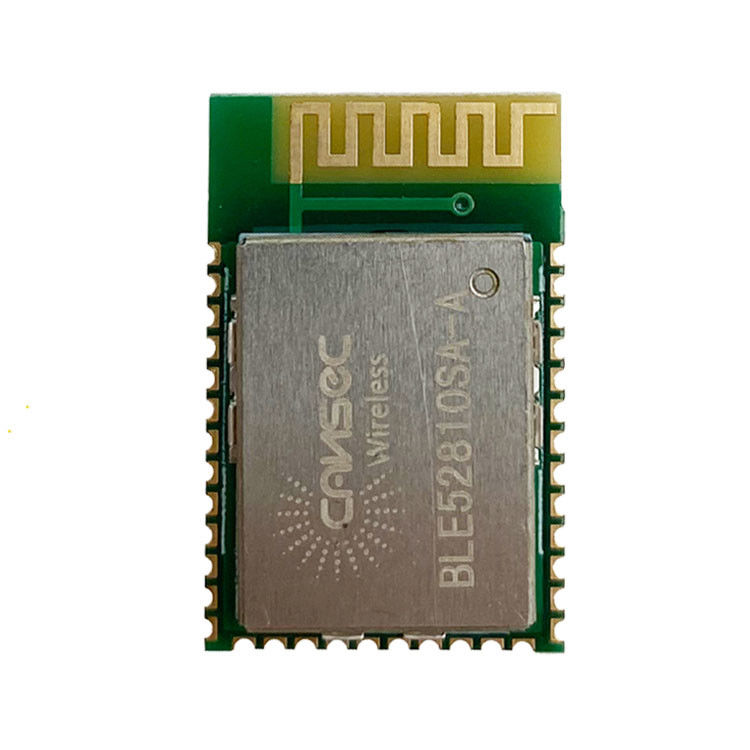

BLE Nordic NRF52810 Module 1uA Cansec Wireless BLE52810SA-A

BLE Nordic NRF52810 Module 1uA Cansec Wireless BLE52810SA-A
BLE Nordic NRF52810 Module 1uA Cansec Wireless BLE52810SA-A BLE Nordic NRF52810 Module 1uA Cansec Wireless BLE52810SA-A BLE Nordic NRF52810 Module 1uA Cansec Wireless BLE52810SA-A

Large Image :  BLE Nordic NRF52810 Module 1uA Cansec Wireless BLE52810SA-A

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: BLE52810SA-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 3.11$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year
Contact Now

BLE Nordic NRF52810 Module 1uA Cansec Wireless BLE52810SA-A

Description
Size: 15*22.8*2.8mm TX Power: 3dBm
RX Sensitivity: -96dBm TX Current: 22mA
RX Current: 15mA Standby Current: 1uA
Antenna Type: PCB Antenna Chipset: Nordic Nrf52810
Crystal: 32 MHz/32.768KHz Application: Smart Home/ IoT Related Products
High Light:

BLE Nordic NRF52810 Module

,

Cansec Wireless BLE52810SA-A

,

Nordic NRF52810 Module 1uA

BLE52810SA-A BLE module with Nordic nrf52810 chipset

BLE Nordic NRF52810 Module 1uA Cansec Wireless BLE52810SA-A 0
Parameter
Min
Typ
Max
Unit
Operating Voltage
1.7
-
3.6
V
Operating Temperature
-20
-
+70
℃
Current
Consumption
Sleep Mode
-
0.5
-
uA

Receive mode
-
15
-
mA

Transmit Mode
-
22
-
mA



TX Power (For Carrier)
-
3
-
dBm
RX Sensitivity (For Lora Modulation)
-
-
-96
dBm
Distance
160
m



BLE52810SA-A BLE module with Nordic nrf52810 chipset

1. The BLE52810 module is based on nRF52810 SoC which is a powerful, highly flexible ultra-low power multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT and 2.4GHz ultra low-power wireless applications.

2. The nRF52810 SoC is built around a 32-bit ARM® Cortex™-M4F CPU with 192kB + 24kB RAM.
3. The embedded 2.4GHz transceiver supports Bluetooth Low Energy, ANT and proprietary 2.4 GHz protocol stack.
4. It is on air compatible with the nRF51 Series, nRF24L and nRF24AP Series products from Nordic Semiconductor.


bluetooth 5.0 module bluetooth mesh module 5.0 mini bluetooth module wireless bluetooth module bluetooth low energy module bluetooth module with range of 55hz - 20khz bluetooth module kit custom low power bluetooth 5 module bluetooth module wireless bluetooth 5 module 5v bluetooth module bluetooth modul 12v small size bluetooth module bluetooth data module rx bluetooth receiver module input 12volt 5.1 bluetooth module bluetooth transmitter module bluetooth and usb module low power bluetooth module bluetooth plugin module bluetooth module 5.1 bluetooth chip module bluetooth 3.0 modul custom bluetooth module bluetooth module ce

BLE Nordic NRF52810 Module 1uA Cansec Wireless BLE52810SA-A 1



BLE Nordic NRF52810 Module 1uA Cansec Wireless BLE52810SA-A 2
BLE Nordic NRF52810 Module 1uA Cansec Wireless BLE52810SA-A 3



BLE Nordic NRF52810 Module 1uA Cansec Wireless BLE52810SA-A 4

BLE Nordic NRF52810 Module 1uA Cansec Wireless BLE52810SA-A 5

BLE Nordic NRF52810 Module 1uA Cansec Wireless BLE52810SA-A 6

BLE Nordic NRF52810 Module 1uA Cansec Wireless BLE52810SA-A 7

BLE Nordic NRF52810 Module 1uA Cansec Wireless BLE52810SA-A 8

BLE Nordic NRF52810 Module 1uA Cansec Wireless BLE52810SA-A 9
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
