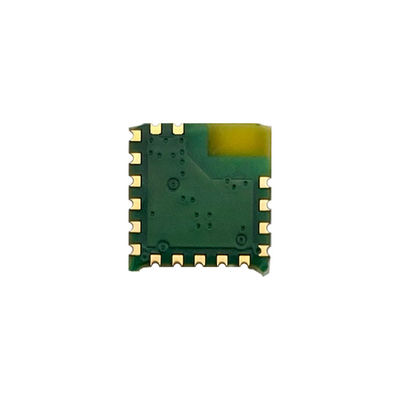

Cansec Wireless RTS Module NRF51822-CEAA Bluetooth 4.2 Module

Cansec Wireless RTS Module NRF51822-CEAA Bluetooth 4.2 Module
Cansec Wireless RTS Module NRF51822-CEAA Bluetooth 4.2 Module Cansec Wireless RTS Module NRF51822-CEAA Bluetooth 4.2 Module

Large Image :  Cansec Wireless RTS Module NRF51822-CEAA Bluetooth 4.2 Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: WD822D
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 3.11$ per piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year
Contact Now

Cansec Wireless RTS Module NRF51822-CEAA Bluetooth 4.2 Module

Description
Chipset: Nrf51822 Application: IoT
Size: 8*8*1.7mm Operating Voltage: 2.1-3.6V
TX Power: 3dBm RX Sensitivity: -93dBm
Sleep Current Consumption: 1μA
Highlight:

Cansec Wireless RTS Module

,

Wireless RTS Module NRF51822

,

NRF51822-CEAA Bluetooth 4.2 Module

Cansec Wireless WB822D Nordic NRF51822-CEAA 4.2 Ble Module

Cansec Wireless RTS Module NRF51822-CEAA Bluetooth 4.2 Module 0
Parameter
Min
Typ
Max
Unit
Operating Voltage
2.1
-
3.6
V
Operating Temperature
-20
-
+70
℃
Current
Consumption
Sleep Mode
-
1
-
uA

Receive mode
-
15
-
mA

Transmit Mode @output power max
-
13
-
mA
TX Power (For Carrier)
-
-
3
dBm
RX Sensitivity (For Lora Modulation)
-
-
-93
dBm
Distance
30
m





Cansec Wireless WB822D Nordic NRF51822-CEAA 4.2 Ble Module



1. WB822D Module is designed based on nRF51822 RF SoC chip of NORDIC company.

2. nRF51822 is an ultra-low-power 2.4GHz wireless System on Chip (SoC) integrating the nRF51 series 2.4GHz transceiver, a 32bit ARM Cortex-M0 CPU, flash memory, and analogue and digital peripherals.
3. nRF51822 can support Bluetooth low energy and a range of proprietary 2.4GHz protocols, such as Gazell from Nordic Semiconductor.



Cansec Wireless RTS Module NRF51822-CEAA Bluetooth 4.2 Module 1


Cansec Wireless RTS Module NRF51822-CEAA Bluetooth 4.2 Module 2
Cansec Wireless RTS Module NRF51822-CEAA Bluetooth 4.2 Module 3
Cansec Wireless RTS Module NRF51822-CEAA Bluetooth 4.2 Module 4

Cansec Wireless RTS Module NRF51822-CEAA Bluetooth 4.2 Module 5

Cansec Wireless RTS Module NRF51822-CEAA Bluetooth 4.2 Module 6

Cansec Wireless RTS Module NRF51822-CEAA Bluetooth 4.2 Module 7

Cansec Wireless RTS Module NRF51822-CEAA Bluetooth 4.2 Module 8

Cansec Wireless RTS Module NRF51822-CEAA Bluetooth 4.2 Module 9
Cansec Wireless RTS Module NRF51822-CEAA Bluetooth 4.2 Module 10
Cansec Wireless RTS Module NRF51822-CEAA Bluetooth 4.2 Module 11
Cansec Wireless RTS Module NRF51822-CEAA Bluetooth 4.2 Module 12
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
