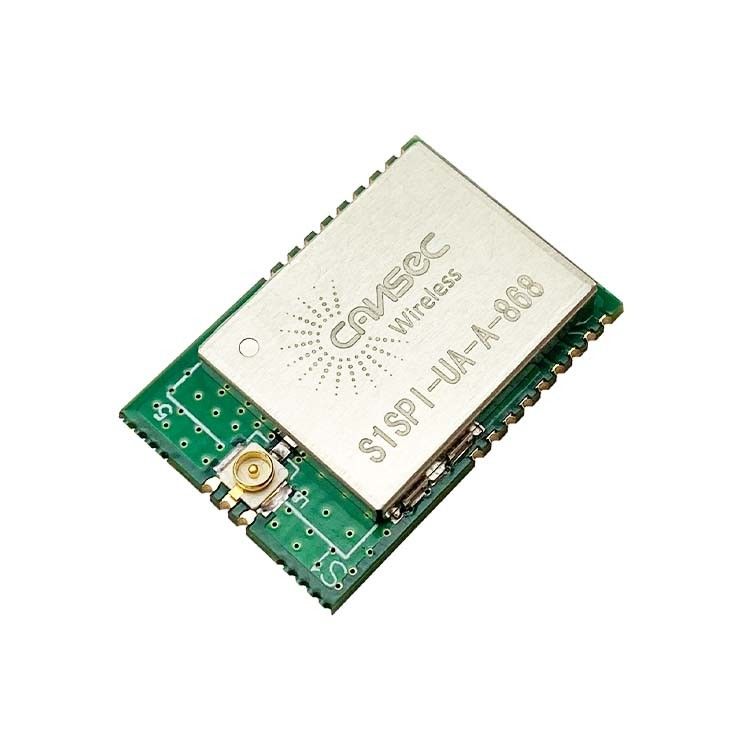

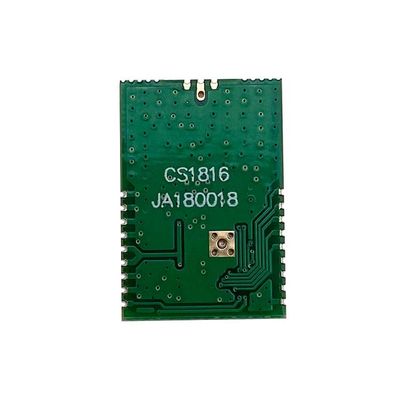

S1SPI-UA-A 1uA Sub GHz Module 14dBm With ST Spirit-1 Chipset

S1SPI-UA-A 1uA Sub GHz Module 14dBm With ST Spirit-1 Chipset
S1SPI-UA-A 1uA Sub GHz Module 14dBm With ST Spirit-1 Chipset S1SPI-UA-A 1uA Sub GHz Module 14dBm With ST Spirit-1 Chipset S1SPI-UA-A 1uA Sub GHz Module 14dBm With ST Spirit-1 Chipset

Large Image :  S1SPI-UA-A 1uA Sub GHz Module 14dBm With ST Spirit-1 Chipset

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: S1SPI-UA-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 2.36$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 5~8 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

S1SPI-UA-A 1uA Sub GHz Module 14dBm With ST Spirit-1 Chipset

Description

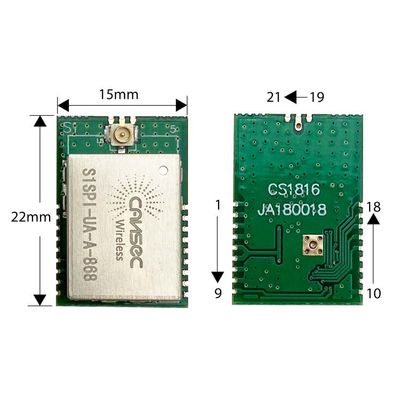

Size: 15mm*22mm*3.2mm TX Power: 14dBm
RX Sensitivity: -118dBm TX Current: 50mA
RX Current: 12mA Standby Current: 1uA
Antenna Type: IPEX Connector Chipset: Spirit-1 By ST
Highlight:

1uA Sub GHz Module

,

S1SPI-UA-A Sub GHz Module

,

14dBm Spirit 1 ST Module

S1SPI-UA-A Sub GHz module with ST Spirit-1 chipset

S1SPI-UA-A 1uA Sub GHz Module 14dBm With ST Spirit-1 Chipset 0

Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
-
3.6
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode
-
-
1
uA

Receive mode
-
9.5
12
mA

Transmit Mode
-
44
47.5
mA
TX Power (For Carrier)
-
-
14
dBm
RX Sensitivity (For Lora Modulation)
-
-
-118
dBm
Distance
HA:110
UA:230
m
434MHz
Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
-
3.6
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode
-
-
1
uA

Receive mode
-
9.6
10
mA

Transmit Mode
-
49
57
mA
TX Power (For Carrier)
-
-
14
dBm
RX Sensitivity (For Lora Modulation)
-
-
-118
dBm
Distance
HA:110
UA:230
m

S1SPI-UA-A Sub GHz module with ST Spirit-1 chipset

S1SPI-HA/UA/NA-A Module is designed based on Spirit1. The Spirit1 is a very low-power RF transceiver, intended for RF wireless applications in the sub-1 GHz band. It is designed to operate both in the license-free ISM and SRD frequency bands at 169, 315, 433, 868, and 915 MHz, but can also be programmed to operate at other additional frequencies in the 300-348 MHz, 387-470MHz, and 779-956 MHz bands. The air data rate is programmable from1 to 500 kbps, and the Spirit1 can be used in systems with channel spacing of 12.5/25 kHz, complying with the EN 300 220 standard. It uses a very small number of discrete external components and integrates a configurable baseband modem, which supports data management, modulation, and demodulation. The data management handles the data in the proprietary fully programmable packet format also allows the M-Bus standard compliance format (all performance classes). However, Spirit-1 can perform cyclic redundancy checks on the data as well as FEC encoding/decoding on the packets. The Spirit1 provides an optional automatic acknowledgement, retransmission, and timeout protocol engine in order to reduce overall system costs by handling all the high-speed link-layer operations.

Moreover, the Spirit1 supports an embedded CSMA/CA engine. An AES 128-bit encryption co- processor is available for secure data transfer. The Spirit1 fully supports antenna diversity with an integrated antenna switching control algorithm. The Spirit1 supports different modulation schemes: 2- FSK, GFSK, OOK, ASK, and MSK. Transmitted/received data bytes are buffered in two different three- level FIFOs (TX FIFO and RX FIFO), accessible via the SPI interface for host processing

S1SPI-UA-A 1uA Sub GHz Module 14dBm With ST Spirit-1 Chipset 1

S1SPI-UA-A 1uA Sub GHz Module 14dBm With ST Spirit-1 Chipset 2

S1SPI-UA-A 1uA Sub GHz Module 14dBm With ST Spirit-1 Chipset 3

S1SPI-UA-A 1uA Sub GHz Module 14dBm With ST Spirit-1 Chipset 4

S1SPI-UA-A 1uA Sub GHz Module 14dBm With ST Spirit-1 Chipset 5

S1SPI-UA-A 1uA Sub GHz Module 14dBm With ST Spirit-1 Chipset 6

S1SPI-UA-A 1uA Sub GHz Module 14dBm With ST Spirit-1 Chipset 7

S1SPI-UA-A 1uA Sub GHz Module 14dBm With ST Spirit-1 Chipset 8

S1SPI-UA-A 1uA Sub GHz Module 14dBm With ST Spirit-1 Chipset 9

S1SPI-UA-A 1uA Sub GHz Module 14dBm With ST Spirit-1 Chipset 10
