S2SPI-UA-A 14dBm Sub GHz Module ST Spirit 2 915MHz Module

S2SPI-UA-A 14dBm Sub GHz Module ST Spirit 2 915MHz Module
S2SPI-UA-A 14dBm Sub GHz Module ST Spirit 2 915MHz Module S2SPI-UA-A 14dBm Sub GHz Module ST Spirit 2 915MHz Module

Large Image :  S2SPI-UA-A 14dBm Sub GHz Module ST Spirit 2 915MHz Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: S2SPI-HA-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 2.68$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 5~8 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

S2SPI-UA-A 14dBm Sub GHz Module ST Spirit 2 915MHz Module

Description

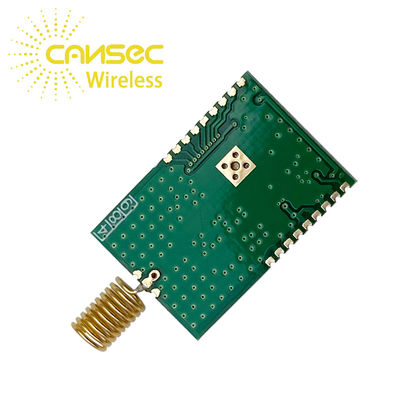

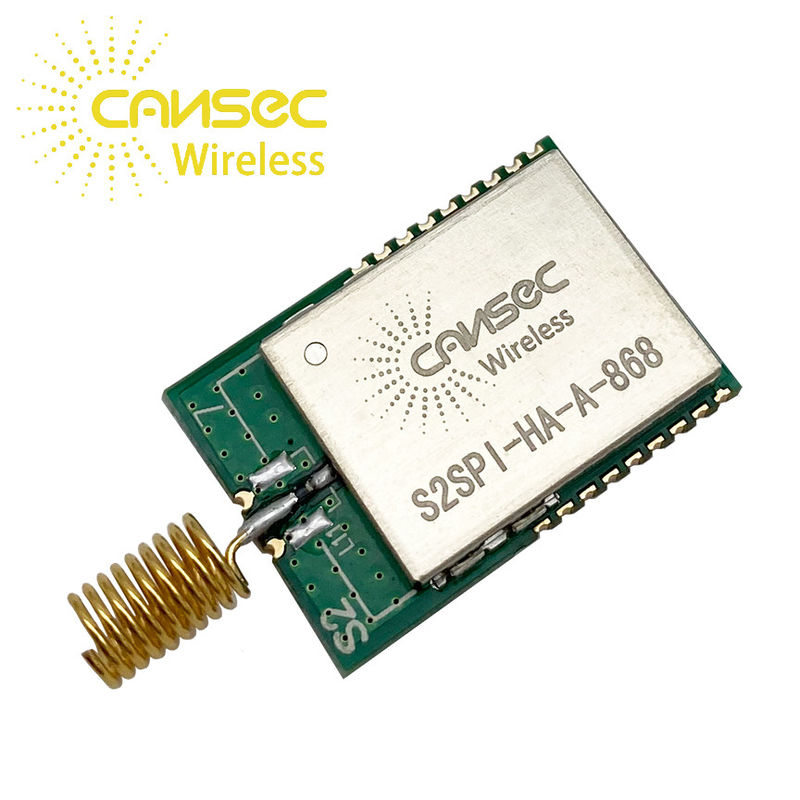

Size: 15mm*22 (antenna+10) Mm*3.2mm TX Power: 14dBm
RX Sensitivity: -130dBm TX Current: 24mA
RX Current: 9.6mA Standby Current: 1uA
Antenna Type: Helix Antenna Chipset: Spirit-2 By ST
I/O: 21 Frequency: 434/470/868/915MHz
Application: Smart Home/ Sensor/ Smart Meters
High Light:

S2SPI-UA-A Sub GHz Module

,

14dBm Sub GHz Module

,

ST Spirit 2 915MHz Module

Cansec Wireless S2SPI-HA-A ST SPIRIT1 QTR 434M/470M/868M/915M smart home IoT Solution Low Power Consumption Sub-G module

S2SPI-UA-A Sub GHz module with ST Spirit-2 chipset

S2SPI-UA-A 14dBm Sub GHz Module ST Spirit 2 915MHz Module 0

868MHz
Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
-
3.6
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode
-
-
1
uA
Receive mode
-
8
9
mA
Transmit Mode
-
38
40
mA
TX Power (For Carrier)
-
-
14
dBm
RX Sensitivity (For Lora Modulation)
-
-
-130
dBm
Distance
HA:110
UA:230
m
434MHz
Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
-
3.6
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode
-
-
1
uA
Receive mode
-
8.2
9
mA
Transmit Mode
-
21
24
mA
TX Power (For Carrier)
-
-
14
dBm
RX Sensitivity (For Lora Modulation)
-
-
-130
dBm
Distance
HA:110
UA:230
m

S2SPI-UA-A Sub GHz module with ST Spirit-2 chipset

1. S2SPI-HA/UA/NA-A Module is designed based on S2-LP. S2-LP is a high performance ultra-low power RF transceiver, intended for RF wireless applications in the sub-1 GHz band. It is designed to operate in both the license-free ISM and SRD frequency bands at 433, 868 and 920 MHz, but can also be programmed to operate at other additional frequencies in the 430-470MHz, 860-940 MHz bands.
2. The S2-LP can be used in systems with channel spacing of 12.5/25 kHz enabling. The narrow band operations. The S2-LP shows an RF link budget higher than 140dB for long communication ranges and meets the regulatory requirements applicable in territories worldwide, including Europe, Japan, China and the USA.

S2SPI-UA-A 14dBm Sub GHz Module ST Spirit 2 915MHz Module 1
Pad Number Name Pin Type Description
1 SDO Digital out SPI slave data output
2 SDI Digital in SPI slave data input
3 SCLK Digital in SPI slave clock input
4 CSn Digital in SPI chip select
5 GPIO0 Digital I/O General purpose I/O that may be configured through the SPI registers to perform various functions
6 GPIO1 Digital I/O General purpose I/O that may be configured through the SPI registers to perform various functions
7 GPIO2 Digital I/O General purpose I/O that may be configured through the SPI registers to perform various functions
8 GPIO3 Digital I/O General purpose I/O that may be configured through the SPI registers to perform various functions
9 GND Ground pin Connect to GND
10 SDN Digital in

Shutdown input pin. SDN should be =

‘0’ in all modes, but SHUTDOWN mode

11 GND Ground pin Connect to GND
12 GND Ground pin Connect to GND
13 VCC Power Supply 1.8 V to 3.6 V power
14 VCC Power Supply 1.8 V to 3.6 V power
15 GND Ground pin Connect to GND
16 GND Ground pin Connect to GND
17 GND Ground pin Connect to GND
18 GND Ground pin Connect to GND
19 GND Ground pin Connect to GND
20 ANT Antenna Interface Connect to an external Antenna
21 GND Ground pin Connect to GND

S2SPI-UA-A 14dBm Sub GHz Module ST Spirit 2 915MHz Module 2

S2SPI-UA-A 14dBm Sub GHz Module ST Spirit 2 915MHz Module 3

S2SPI-UA-A 14dBm Sub GHz Module ST Spirit 2 915MHz Module 4



S2SPI-UA-A 14dBm Sub GHz Module ST Spirit 2 915MHz Module 5

S2SPI-UA-A 14dBm Sub GHz Module ST Spirit 2 915MHz Module 6

S2SPI-UA-A 14dBm Sub GHz Module ST Spirit 2 915MHz Module 7

S2SPI-UA-A 14dBm Sub GHz Module ST Spirit 2 915MHz Module 8

S2SPI-UA-A 14dBm Sub GHz Module ST Spirit 2 915MHz Module 9

S2SPI-UA-A 14dBm Sub GHz Module ST Spirit 2 915MHz Module 10
