Cansec Wireless AN2642RSA-A Ti CC2642R Module -105dBm RX Sensitivity

Cansec Wireless AN2642RSA-A Ti CC2642R Module -105dBm RX Sensitivity
Cansec Wireless AN2642RSA-A Ti CC2642R Module -105dBm RX Sensitivity Cansec Wireless AN2642RSA-A Ti CC2642R Module -105dBm RX Sensitivity Cansec Wireless AN2642RSA-A Ti CC2642R Module -105dBm RX Sensitivity

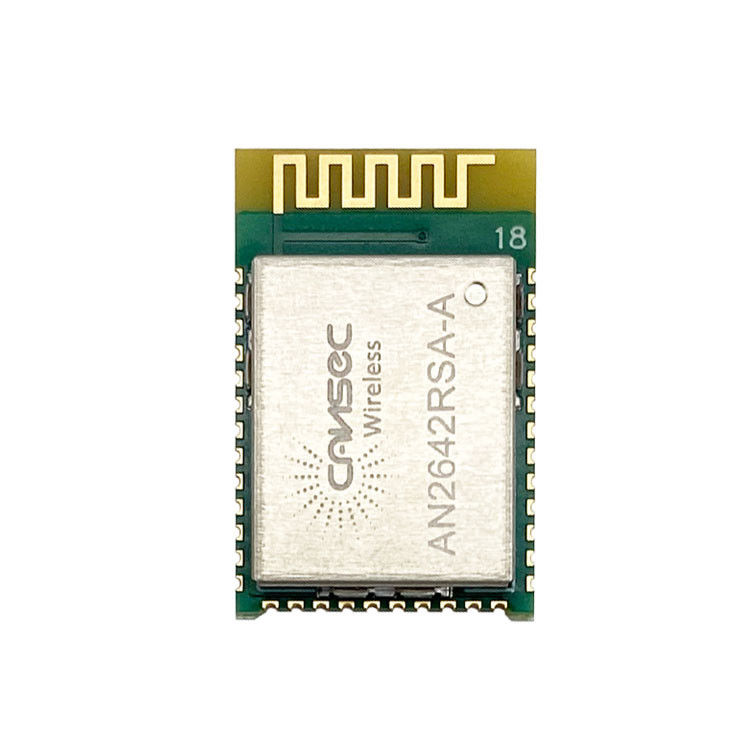

Large Image :  Cansec Wireless AN2642RSA-A Ti CC2642R Module -105dBm RX Sensitivity

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: AN2642RSA-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 4.07$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year
Contact Now

Cansec Wireless AN2642RSA-A Ti CC2642R Module -105dBm RX Sensitivity

Description
Size: 15mm*23.2mm*3mm TX Power: 4dBm
RX Sensitivity: -105dBm TX Current: 9.6mA
RX Current: 6.9mA Standby Current: 1μA
Antenna Type: PCB Antenna Chipset: CC2642R1FRGZR Bi TI
Highlight:

Cansec Wireless AN2642RSA-A

,

Ti CC2642R Module

,

CC2642R Module -105dBm

Cansec Wireless AN2642RSA-A Ti CC2642R Module -105dBm RX Sensitivity 0

Cansec Wireless AN2642RSA-A Ti CC2642R Ble Module



Parameter
Min
Max
Unit
Operating Voltage
1.8
3.8
V
Operating Temperature
-40
85
℃
TX Power

+5
dBm
RX Sensitivity

-105
dBm
StorageTemperature
-40
150
℃
1. AN2642RSA-A Module is designed based on CC2642R Bluetooth Smart(BLE4&5) System-on-Chip, fully supports the single-mode Bluetooth Low Energy operation.
2. The module provides the ability to either put your entire application into the integrated 48-MHz Arm Cortex M4F microcontroller or use the module in Network Processor mode in conjunction with the microcontroller of your choice.

Cansec Wireless AN2642RSA-A Ti CC2642R Module -105dBm RX Sensitivity 1

Cansec Wireless AN2642RSA-A Ti CC2642R Module -105dBm RX Sensitivity 2

Cansec Wireless AN2642RSA-A Ti CC2642R Module -105dBm RX Sensitivity 3

Cansec Wireless AN2642RSA-A Ti CC2642R Module -105dBm RX Sensitivity 4

Cansec Wireless AN2642RSA-A Ti CC2642R Module -105dBm RX Sensitivity 5

Cansec Wireless AN2642RSA-A Ti CC2642R Module -105dBm RX Sensitivity 6

Cansec Wireless AN2642RSA-A Ti CC2642R Module -105dBm RX Sensitivity 7Cansec Wireless AN2642RSA-A Ti CC2642R Module -105dBm RX Sensitivity 8

Cansec Wireless AN2642RSA-A Ti CC2642R Module -105dBm RX Sensitivity 9

Cansec Wireless AN2642RSA-A Ti CC2642R Module -105dBm RX Sensitivity 10

Cansec Wireless AN2642RSA-A Ti CC2642R Module -105dBm RX Sensitivity 11
FAQ

Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
