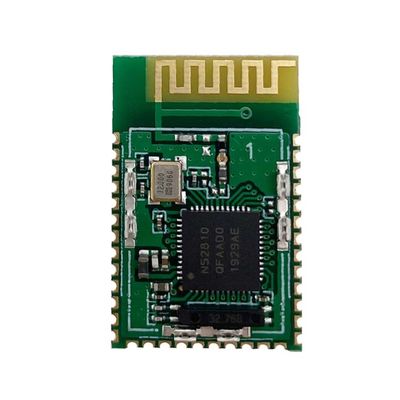

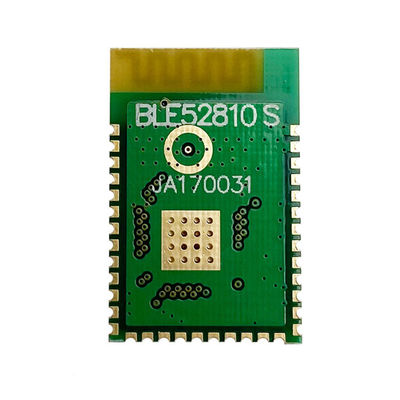

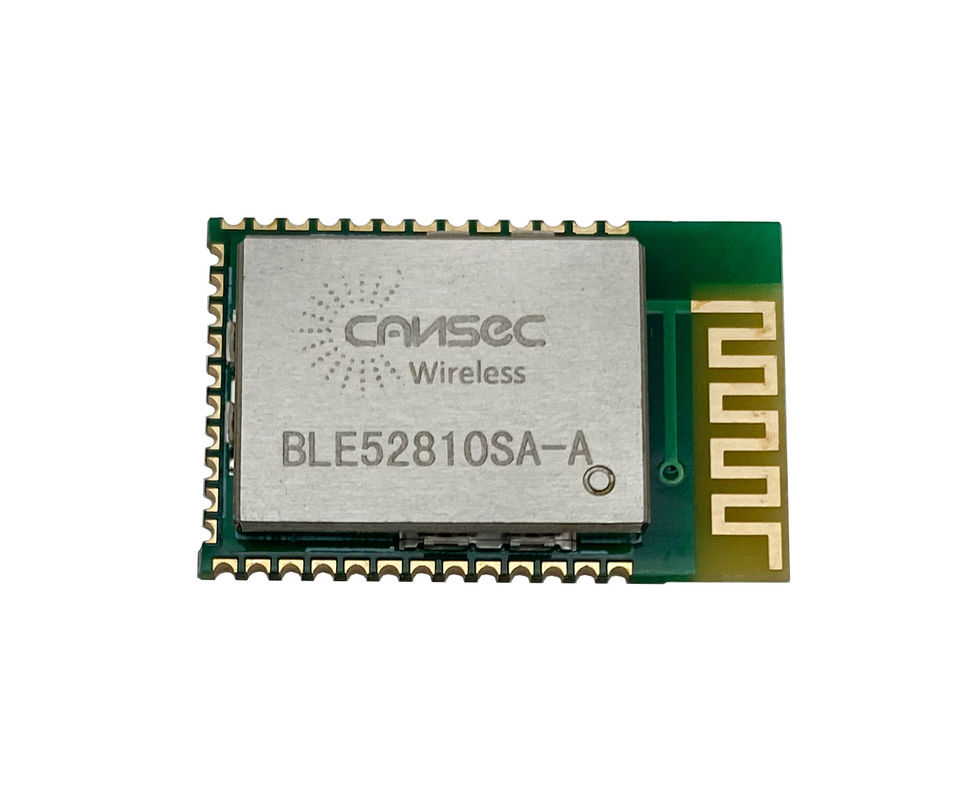

3dBm NRF52810 Nordic RF Module PCB Antenna Ble 5.0 Module

3dBm NRF52810 Nordic RF Module PCB Antenna Ble 5.0 Module
3dBm NRF52810 Nordic RF Module PCB Antenna Ble 5.0 Module 3dBm NRF52810 Nordic RF Module PCB Antenna Ble 5.0 Module 3dBm NRF52810 Nordic RF Module PCB Antenna Ble 5.0 Module

Large Image :  3dBm NRF52810 Nordic RF Module PCB Antenna Ble 5.0 Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: BLE52810SA-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 3.11$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year
Contact Now

3dBm NRF52810 Nordic RF Module PCB Antenna Ble 5.0 Module

Description
Size: 15*22.8*2.8mm TX Power: 3dBm
RX Sensitivity: -96dBm TX Current: 22mA
RX Current: 15mA Standby Current: 1uA
Antenna: PCB Antenna Chipset: Nrf52810
I/O: 36 Application: IoT Related Device
High Light:

NRF52810 Nordic RF Module

,

PCB Antenna Ble 5.0 Module

,

3dBm Nordic RF Module

Custom Low Power Blue Tooth Module IoT Solution Cansec Ble52810SA-A Nordic NRF52810-QFAA Ble 5.0 Module

Parameter
Min
Typ
Max
Unit
Operating Voltage
1.7
-
3.6
V
Operating Temperature
-20
-
+70
℃
Current
Consumption
Sleep Mode
-
0.5
-
uA

Receive mode
-
15
-
mA

Transmit Mode
-
22
-
mA
TX Power (For Carrier)
-
3
-
dBm
RX Sensitivity (For Lora Modulation)
-
-
-96
dBm
Distance
160
m



Custom Low Power Blue Tooth Module IoT Solution Cansec Ble52810SA-A Nordic NRF52810-QFAA Ble 5.0 Module



The BLE52810 module is based on nRF52810 SoC which is a powerful, highly flexible ultra-low power multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT and 2.4GHz ultra-low-power wireless applications.

The nRF52810 SoC is built around a 32-bit ARM® Cortex™-M4F CPU with 192kB + 24kB RAM.

The embedded 2.4GHz transceiver supports Bluetooth Low Energy, ANT and proprietary 2.4 GHz protocol stack.
It is on air compatible with the nRF51 Series, nRF24L and nRF24AP Series products from Nordic Semiconductor.

" The nRF52810 system on chip (SoC) is the baseline member of the nRF52 Series SoC family. It meets the challenge of bringing advanced Bluetooth LE features and protocol concurrency to applications at a price point that makes adding Bluetooth LE connectivity to an application compelling. It is an ideal candidate for less complex applications and also as a Bluetooth LE connectivity processor in larger applications.
The nRF52810 has protocol support for Bluetooth LE, including the high-speed 2 Mbps feature. It also supports ANT and 2.4 GHz proprietary protocols. It is extremely power efficient and is our smallest SoC (together with nRF52811) with its 2.482 x 2.464 mm CSP package.

It is built around an Arm® Cortex™-M4 CPU running at 64 MHz. It has numerous digital peripherals and interfaces such as PDM, PWM, UART, SPI and TWI. It also has a capable 12-bit ADC. Exceptionally low energy consumption is achieved using a sophisticated on-chip adaptive power management system."
Nordic Condoctor

3dBm NRF52810 Nordic RF Module PCB Antenna Ble 5.0 Module 0



3dBm NRF52810 Nordic RF Module PCB Antenna Ble 5.0 Module 1
3dBm NRF52810 Nordic RF Module PCB Antenna Ble 5.0 Module 2



3dBm NRF52810 Nordic RF Module PCB Antenna Ble 5.0 Module 3

3dBm NRF52810 Nordic RF Module PCB Antenna Ble 5.0 Module 4

3dBm NRF52810 Nordic RF Module PCB Antenna Ble 5.0 Module 5

3dBm NRF52810 Nordic RF Module PCB Antenna Ble 5.0 Module 6

3dBm NRF52810 Nordic RF Module PCB Antenna Ble 5.0 Module 7

3dBm NRF52810 Nordic RF Module PCB Antenna Ble 5.0 Module 8
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
