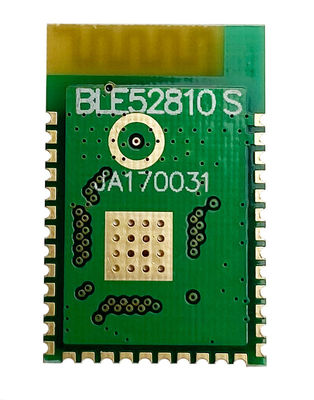

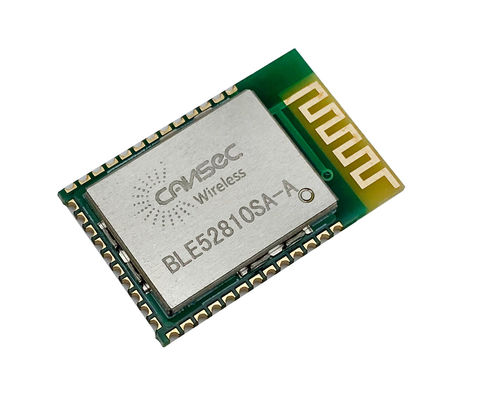

1.7v To 3.6v Low Power Bluetooth Module Thread Safe And Run Time Protected BLE52810SA-A

1.7v To 3.6v Low Power Bluetooth Module Thread Safe And Run Time Protected BLE52810SA-A
1.7v To 3.6v Low Power Bluetooth Module Thread Safe And Run Time Protected BLE52810SA-A 1.7v To 3.6v Low Power Bluetooth Module Thread Safe And Run Time Protected BLE52810SA-A

Large Image :  1.7v To 3.6v Low Power Bluetooth Module Thread Safe And Run Time Protected BLE52810SA-A

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: BLE52810SA-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 3.11$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

1.7v To 3.6v Low Power Bluetooth Module Thread Safe And Run Time Protected BLE52810SA-A

Description
Size: 15*22.8*2.8mm TX Power: 3dBm
RX Sensitivity: -96dBm TX Current: 22mA
RX Current: 15mA Standby Current: 1uA
Antenna Type: PCB Board Antenna Chipset And: Nrf52810 By Nordic
Operating Volatage: 1.7v To 3.6v Operating Temputure: -30 To +80 °C
Protocol: Bluetooth 5
High Light:

3.6v Low Power Bluetooth Module

,

1.7v Low Power Bluetooth Module

,

3dBm ultra low power bluetooth module

Thread Safe And Run-Time Protected Low-Power Blue Tooth Module Wireless Cansec Ble52810SA-A Nordic NRF52810

1.7v To 3.6v Low Power Bluetooth Module Thread Safe And Run Time Protected BLE52810SA-A 0
Parameter
Min
Typ
Max
Unit
Operating Voltage
1.7
-
3.6
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode
-
0.5
-
uA

Receive mode
-
15
-
mA

Transmit Mode
-
22
-
mA
TX Power (For Carrier)
-
3
-
dBm
RX Sensitivity (For Lora Modulation)
-
-
-96
dBm
Distance
160
m



Thread Safe And Run-Time Protected Low-Power Blue Tooth Module Wireless Cansec Ble52810SA-A Nordic NRF52810

The BLE52810 module is based on nRF52810 SoC which is a powerful, highly flexible ultra-low power multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT and 2.4GHz ultra low-power wireless applications.



Feature Highlight

- Single-chip, highly flexible, 2.4GHz multi-protocol SoC

- 32-bit ARM Cortex-M4 Processor

- 1.7v to 3.6v operation

- Support concurrent Bluetooth low energy / ANTprotocol operation

- On-Chip NFC tag for Out-of-Band (OOB) Pairing

- Up to +3dBm output power

- -96dBm sensitivity, Bluetooth low energy

- Thread-safe and run-time protected

- Event-driven API

- 2 data rates (2Mbps/1Mbps)

- PPI - maximum flexibility

- Power-efficient applications and code simplification

- Automated power management system with automatic power management of each peripheral

- Configurable I/O mapping for analog and digital I/O

- 3 x Master/ Slave SPI

- 2 x Two-wire interface (i2c)

- UART (RTS/CTS)

- 3 x PWM

- AES HW encryption

- 12-bit ADC

- Real-Time Counter (RTC)

- Digital microphone interface (PDM)


Application:
Internet of Things
Wearables
Smart Home Sensors
Voice-command smart remotes
Computer Peripherals
Smartwatches
RC toys
Interactive games
Building automation and sensor network

1.7v To 3.6v Low Power Bluetooth Module Thread Safe And Run Time Protected BLE52810SA-A 1



1.7v To 3.6v Low Power Bluetooth Module Thread Safe And Run Time Protected BLE52810SA-A 2
1.7v To 3.6v Low Power Bluetooth Module Thread Safe And Run Time Protected BLE52810SA-A 3



1.7v To 3.6v Low Power Bluetooth Module Thread Safe And Run Time Protected BLE52810SA-A 4

1.7v To 3.6v Low Power Bluetooth Module Thread Safe And Run Time Protected BLE52810SA-A 5

1.7v To 3.6v Low Power Bluetooth Module Thread Safe And Run Time Protected BLE52810SA-A 6

1.7v To 3.6v Low Power Bluetooth Module Thread Safe And Run Time Protected BLE52810SA-A 7

1.7v To 3.6v Low Power Bluetooth Module Thread Safe And Run Time Protected BLE52810SA-A 8

1.7v To 3.6v Low Power Bluetooth Module Thread Safe And Run Time Protected BLE52810SA-A 9
