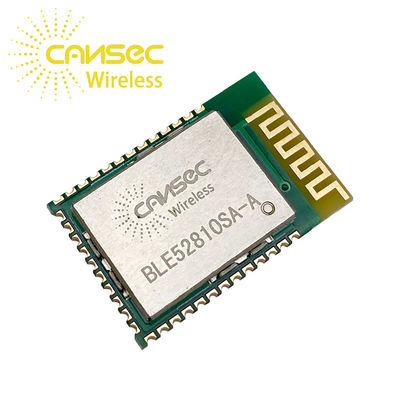

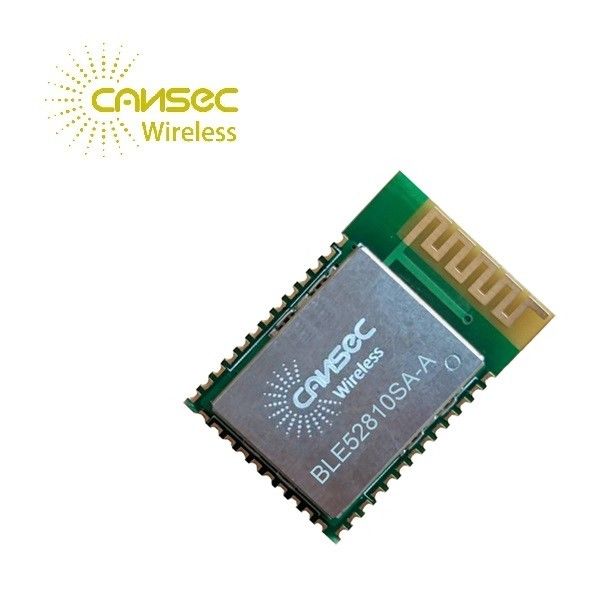

Smart Ble Beacon Module Nordic NRF52810 Bluetooth Transmitter And Receiver Module

Smart Ble Beacon Module Nordic NRF52810 Bluetooth Transmitter And Receiver Module
Smart Ble Beacon Module Nordic NRF52810 Bluetooth Transmitter And Receiver Module Smart Ble Beacon Module Nordic NRF52810 Bluetooth Transmitter And Receiver Module

Large Image :  Smart Ble Beacon Module Nordic NRF52810 Bluetooth Transmitter And Receiver Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: BLE52810SA-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 3.11$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year
Contact Now

Smart Ble Beacon Module Nordic NRF52810 Bluetooth Transmitter And Receiver Module

Description
Size: 15*22.8*2.8mm TX Power: 3dBm
RX Sensitivity: -96dBm TX Current: 22mA
RX Current: 15mA Standby Current: 1uA
Antenna Type: Strip Antenna Chipset: Nrf52810 Chipset
I/O: 30
Highlight:

Smart Ble Beacon Module

,

Ble Beacon Module Nordic

,

NRF52810 Bluetooth Transmitter And Receiver Module

Cansec Smart Home IoT Beacon Ble Smart Module Nordic NRF52810 Blue Tooth Transmitter And Receiver Module

Smart Ble Beacon Module Nordic NRF52810 Bluetooth Transmitter And Receiver Module 0
Parameter
Min
Typ
Max
Unit
Operating Voltage
1.7
-
3.6
V
Operating Temperature
-20
-
+70
℃
Current
Consumption
Sleep Mode
-
0.5
-
uA

Receive mode
-
15
-
mA

Transmit Mode
-
22
-
mA
TX Power (For Carrier)
-
3
-
dBm
RX Sensitivity (For Lora Modulation)
-
-
-96
dBm
Distance
160
m



Cansec Smart Home IoT Beacon Ble Smart Module Nordic NRF52810 Blue Tooth Transmitter And Receiver Module

1. The BLE52810 module is based on nRF52810 SoC which is a powerful, highly flexible ultra-low power multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT and 2.4GHz ultra low-power wireless applications.

2. The nRF52810 SoC is built around a 32-bit ARM® Cortex™-M4F CPU with 192kB + 24kB RAM.
3. The embedded 2.4GHz transceiver supports Bluetooth Low Energy, ANT and proprietary 2.4 GHz protocol stack.
4. It is on air compatible with the nRF51 Series, nRF24L and nRF24AP Series products from Nordic Semiconductor.


ble bluetooth led module nrf52832 ble module ble bluetooth module bluetooth module 5.0 ble nrf52832 ble 5.0 module bluetooth ble 4.0 module ble 5.0 module nrf52840 module ble customized ble module ble mesh module ble cc2640 module ble module nfr51822 ble module nrf52832 ble transceiver module ble module cc2530 ble receiver module ble module cc2640 ble board module ble smart module ble module nrf52840 ble nrf52832 module ble 5.1 module ble 4.0 module ble module shield usb module ble wifi ble module nfr 51822 bluetooth module pcb ble Bluetooth bluetooth 5 ble module module ble cc2541 low power ble module ble low energy module wifi ble combo module ble 5.0 module fcc approved

Smart Ble Beacon Module Nordic NRF52810 Bluetooth Transmitter And Receiver Module 1



Smart Ble Beacon Module Nordic NRF52810 Bluetooth Transmitter And Receiver Module 2
Smart Ble Beacon Module Nordic NRF52810 Bluetooth Transmitter And Receiver Module 3



Smart Ble Beacon Module Nordic NRF52810 Bluetooth Transmitter And Receiver Module 4

Smart Ble Beacon Module Nordic NRF52810 Bluetooth Transmitter And Receiver Module 5

Smart Ble Beacon Module Nordic NRF52810 Bluetooth Transmitter And Receiver Module 6

Smart Ble Beacon Module Nordic NRF52810 Bluetooth Transmitter And Receiver Module 7

Smart Ble Beacon Module Nordic NRF52810 Bluetooth Transmitter And Receiver Module 8

Smart Ble Beacon Module Nordic NRF52810 Bluetooth Transmitter And Receiver Module 9
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
