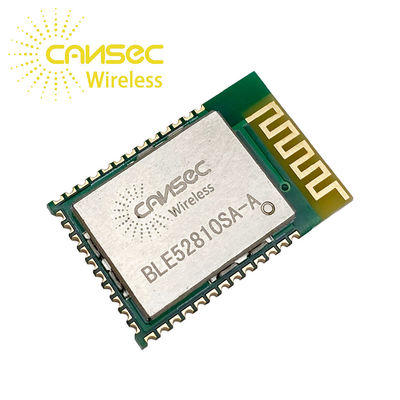

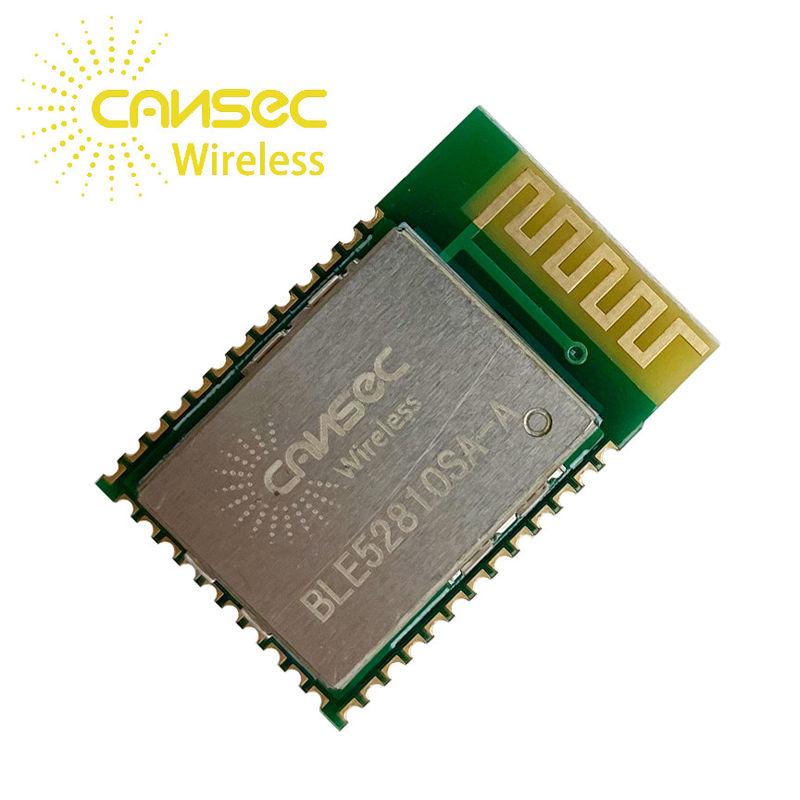

Multiprotocol Soc BlueTooth Chip Nordic RF Module Transmitter And Receiver BLE52810SA-A

Multiprotocol Soc BlueTooth Chip Nordic RF Module Transmitter And Receiver BLE52810SA-A
Multiprotocol Soc BlueTooth Chip Nordic RF Module Transmitter And Receiver BLE52810SA-A Multiprotocol Soc BlueTooth Chip Nordic RF Module Transmitter And Receiver BLE52810SA-A

Large Image :  Multiprotocol Soc BlueTooth Chip Nordic RF Module Transmitter And Receiver BLE52810SA-A

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: BLE52810SA-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 3.11$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

Multiprotocol Soc BlueTooth Chip Nordic RF Module Transmitter And Receiver BLE52810SA-A

Description
Size: 15*22.8*2.8mm TX Power: 3dBm
RX Sensitivity: -96dBm TX Current: 22mA
RX Current: 15mA Standby Current: 1uA
Antenna Type: Chip Antenna Chipset: Nrf52810 By Nordic
High Light:

BlueTooth Chip Nordic RF Module

,

Multiprotocol Soc Nordic RF Module

,

3dBm bluetooth chip module

Cansec Ultra-Low Power Multiprotocol Soc Blue Tooth Chip Module Blue Tooth Rechargeable Data Module Transmitter And Receiver

Multiprotocol Soc BlueTooth Chip Nordic RF Module Transmitter And Receiver BLE52810SA-A 0
Parameter
Min
Typ
Max
Unit
Operating Voltage
1.7
-
3.6
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode
-
0.5
-
uA

Receive mode
-
15
-
mA

Transmit Mode
-
22
-
mA
TX Power (For Carrier)
-
3
-
dBm
RX Sensitivity (For Lora Modulation)
-
-
-96
dBm
Distance
160
m



Cansec Ultra-Low Power Multiprotocol Soc Blue Tooth Chip Module Blue Tooth Rechargeable Data Module Transmitter And Receiver



1. The BLE52810 module is based on nRF52810 SoC which is a powerful, highly flexible ultra-low power multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT and 2.4GHz ultra low-power wireless applications.

2. The nRF52810 SoC is built around a 32-bit ARM® Cortex™-M4F CPU with 192kB + 24kB RAM.
3. The embedded 2.4GHz transceiver supports Bluetooth Low Energy, ANT and proprietary 2.4 GHz protocol stack.
4. It is on air compatible with the nRF51 Series, nRF24L and nRF24AP Series products from Nordic Semiconductor.

ble module for vingard locks bluetooth module ble wifi ble module ble speaker module ble module audio ble 5 module ble earphone module jl ble module a3 ble audio module ble 5 decoder module holyiot tinyble nordic nrf52832 ble module generic wifi-bt-ble mcu module ble 5.0 module bloothoot modules ble for locks ble module spp2.0 smt ble module jdy67 ble module ble audio module nordic ble module bluetooth module 4.0 ble a3 ble earphone module

Multiprotocol Soc BlueTooth Chip Nordic RF Module Transmitter And Receiver BLE52810SA-A 1



Multiprotocol Soc BlueTooth Chip Nordic RF Module Transmitter And Receiver BLE52810SA-A 2
Multiprotocol Soc BlueTooth Chip Nordic RF Module Transmitter And Receiver BLE52810SA-A 3



Multiprotocol Soc BlueTooth Chip Nordic RF Module Transmitter And Receiver BLE52810SA-A 4

Multiprotocol Soc BlueTooth Chip Nordic RF Module Transmitter And Receiver BLE52810SA-A 5

Multiprotocol Soc BlueTooth Chip Nordic RF Module Transmitter And Receiver BLE52810SA-A 6

Multiprotocol Soc BlueTooth Chip Nordic RF Module Transmitter And Receiver BLE52810SA-A 7

Multiprotocol Soc BlueTooth Chip Nordic RF Module Transmitter And Receiver BLE52810SA-A 8

Multiprotocol Soc BlueTooth Chip Nordic RF Module Transmitter And Receiver BLE52810SA-A 9
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
