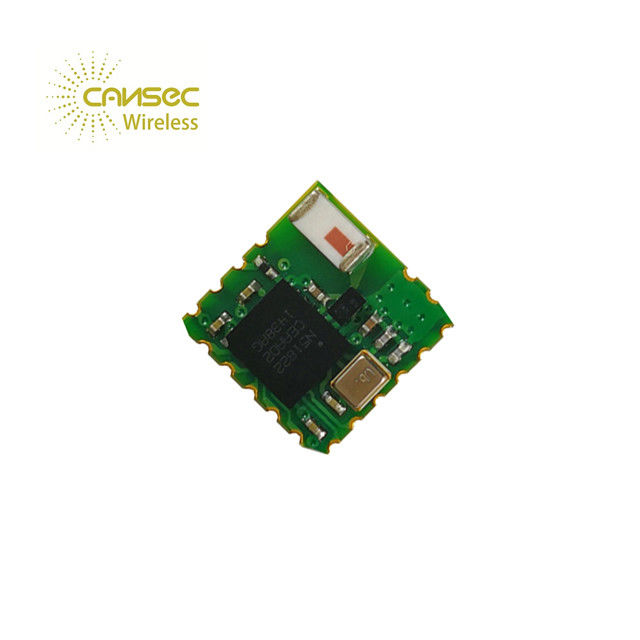

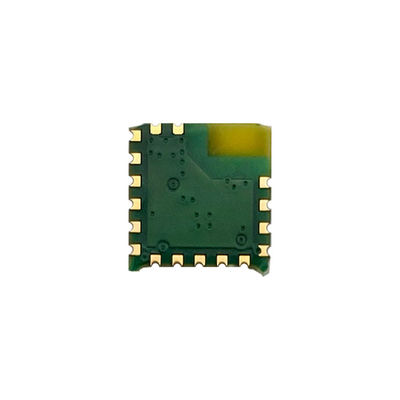

Nordic 3dBm NRF51822 RTS Module BlueTooth 4.2 Wireless IoT Module

Nordic 3dBm NRF51822 RTS Module BlueTooth 4.2 Wireless IoT Module
Nordic 3dBm NRF51822 RTS Module BlueTooth 4.2 Wireless IoT Module Nordic 3dBm NRF51822 RTS Module BlueTooth 4.2 Wireless IoT Module

Large Image :  Nordic 3dBm NRF51822 RTS Module BlueTooth 4.2 Wireless IoT Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: WD822D
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 3.11$ per piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year
Contact Now

Nordic 3dBm NRF51822 RTS Module BlueTooth 4.2 Wireless IoT Module

Description
Chipset: Nrf51822 Application: IoT
Size: 8*8*1.7mm Operating Voltage: 2.1-3.6V
TX Power: 3dBm RX Sensitivity: -93dBm
Sleep Current Consumption: 1μA Antenna: Chip Antenna
High Light:

BlueTooth 4.2 Wireless IoT Module

,

NRF51822 RTS Module

,

3dBm RTS Module

Cansec Wearable WB822D Wireless IoT Module Nordic NRF51822-CEAA Small Blue Tooth 4.2 Module

Nordic 3dBm NRF51822 RTS Module BlueTooth 4.2 Wireless IoT Module 0
Parameter
Min
Typ
Max
Unit
Operating Voltage
2.1
-
3.6
V
Operating Temperature
-20
-
+70
℃
Current
Consumption
Sleep Mode
-
1
-
uA

Receive mode
-
15
-
mA

Transmit Mode @output power max
-
13
-
mA
TX Power (For Carrier)
-
-
3
dBm
RX Sensitivity (For Lora Modulation)
-
-
-93
dBm
Distance
30
m



Cansec Wearable WB822D Wireless IoT Module Nordic NRF51822-CEAA Small Blue Tooth 4.2 Module



1. WB822D Module is designed based on nRF51822 RF SoC chip of NORDIC company.

2. nRF51822 is an ultra-low-power 2.4GHz wireless System on Chip (SoC) integrating the nRF51 series 2.4GHz transceiver, a 32bit ARM Cortex-M0 CPU, flash memory, and analogue and digital peripherals.
3. nRF51822 can support Bluetooth low energy and a range of proprietary 2.4GHz protocols, such as Gazell from Nordic Semiconductor.

The present invention relates to a method and a device for forming a substitute communication means by using Bluetooth low energy (LE). According to the present invention, provided are the method and the device, the method comprising the steps of: receiving an advertising message including substitute communication means information and service information from a second device, wherein the substitute communication means information includes information of a substitute communication means supported by the second device, and the service information includes information of at least one service, which can be provided by the second device through the substitute communication means; transmitting, to the second device, a filling out request message for requesting the activation of the substitute communication means and the at least one service; and receiving a response message as a response to the filling out request message.



Nordic 3dBm NRF51822 RTS Module BlueTooth 4.2 Wireless IoT Module 1


Nordic 3dBm NRF51822 RTS Module BlueTooth 4.2 Wireless IoT Module 2
Nordic 3dBm NRF51822 RTS Module BlueTooth 4.2 Wireless IoT Module 3
Nordic 3dBm NRF51822 RTS Module BlueTooth 4.2 Wireless IoT Module 4

Nordic 3dBm NRF51822 RTS Module BlueTooth 4.2 Wireless IoT Module 5

Nordic 3dBm NRF51822 RTS Module BlueTooth 4.2 Wireless IoT Module 6

Nordic 3dBm NRF51822 RTS Module BlueTooth 4.2 Wireless IoT Module 7

Nordic 3dBm NRF51822 RTS Module BlueTooth 4.2 Wireless IoT Module 8

Nordic 3dBm NRF51822 RTS Module BlueTooth 4.2 Wireless IoT Module 9
Nordic 3dBm NRF51822 RTS Module BlueTooth 4.2 Wireless IoT Module 10
Nordic 3dBm NRF51822 RTS Module BlueTooth 4.2 Wireless IoT Module 11
Nordic 3dBm NRF51822 RTS Module BlueTooth 4.2 Wireless IoT Module 12
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
