Nordic NRF51822 Bluetooth Ble 4.2 Module Small Wearable Cansec WB822D

Nordic NRF51822 Bluetooth Ble 4.2 Module Small Wearable Cansec WB822D
Nordic NRF51822 Bluetooth Ble 4.2 Module Small Wearable Cansec WB822D Nordic NRF51822 Bluetooth Ble 4.2 Module Small Wearable Cansec WB822D

Large Image :  Nordic NRF51822 Bluetooth Ble 4.2 Module Small Wearable Cansec WB822D

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: WD822D
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 3.11$ per piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year
Contact Now

Nordic NRF51822 Bluetooth Ble 4.2 Module Small Wearable Cansec WB822D

Description
Chipset: Nrf51822 Application: IoT
Size: 8*8*1.7mm Operating Voltage: 2.1-3.6V
TX Power: 3dBm RX Sensitivity: -93dBm
Sleep Current Consumption: 1μA
High Light:

NRF51822 Bluetooth Ble 4.2 Module

,

Nordic NRF51822 Ble 4.2 Module

,

Wearable Cansec WB822D

Small Size Wearable Cansec 2.4Ghz IoT Control Module WB822D Nordic NRF51822-CEAA 4.2 Ble Module

Nordic NRF51822 Bluetooth Ble 4.2 Module Small Wearable Cansec WB822D 0
Parameter
Min
Typ
Max
Unit
Operating Voltage
2.1
-
3.6
V
Operating Temperature
-20
-
+70
℃
Current
Consumption
Sleep Mode
-
1
-
uA

Receive mode
-
15
-
mA

Transmit Mode @output power max
-
13
-
mA
TX Power (For Carrier)
-
-
3
dBm
RX Sensitivity (For Lora Modulation)
-
-
-93
dBm
Distance
30
m



Small Size Wearable Cansec 2.4Ghz IoT Control Module WB822D Nordic NRF51822-CEAA 4.2 Ble Module

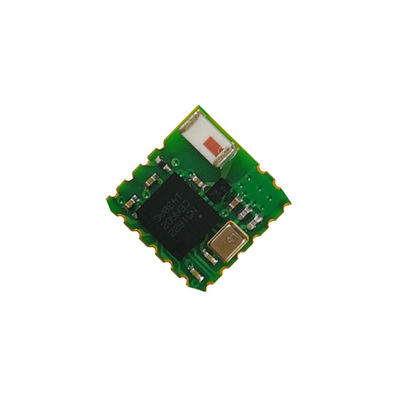

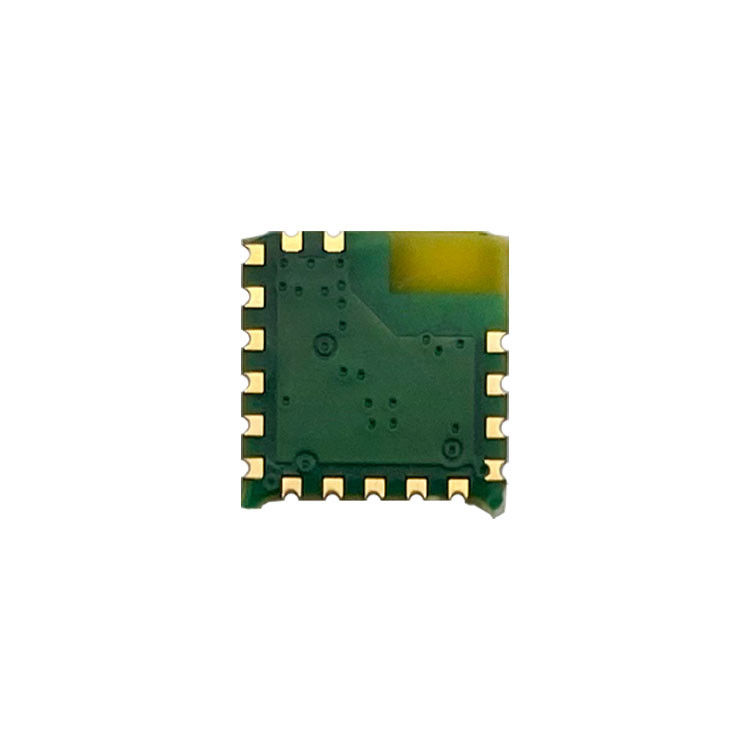

1. WB822D Module is designed based on nRF51822 RF SoC chip of NORDIC company.

2. nRF51822 is an ultra-low-power 2.4GHz wireless System on Chip (SoC) integrating the nRF51 series 2.4GHz transceiver, a 32bit ARM Cortex-M0 CPU, flash memory, and analogue and digital peripherals.
3. nRF51822 can support Bluetooth low energy and a range of proprietary 2.4GHz protocols, such as Gazell from Nordic Semiconductor.



Nordic NRF51822 Bluetooth Ble 4.2 Module Small Wearable Cansec WB822D 1


Nordic NRF51822 Bluetooth Ble 4.2 Module Small Wearable Cansec WB822D 2
Nordic NRF51822 Bluetooth Ble 4.2 Module Small Wearable Cansec WB822D 3
Nordic NRF51822 Bluetooth Ble 4.2 Module Small Wearable Cansec WB822D 4

Nordic NRF51822 Bluetooth Ble 4.2 Module Small Wearable Cansec WB822D 5

Nordic NRF51822 Bluetooth Ble 4.2 Module Small Wearable Cansec WB822D 6

Nordic NRF51822 Bluetooth Ble 4.2 Module Small Wearable Cansec WB822D 7

Nordic NRF51822 Bluetooth Ble 4.2 Module Small Wearable Cansec WB822D 8

Nordic NRF51822 Bluetooth Ble 4.2 Module Small Wearable Cansec WB822D 9
Nordic NRF51822 Bluetooth Ble 4.2 Module Small Wearable Cansec WB822D 10
Nordic NRF51822 Bluetooth Ble 4.2 Module Small Wearable Cansec WB822D 11
Nordic NRF51822 Bluetooth Ble 4.2 Module Small Wearable Cansec WB822D 12
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
