Product Details:
|
| Chipset: | Semtech LLCC68 | Application: | IoT |
|---|---|---|---|
| Size: | 13*19*2.9mm | Operating Temperature: | -20 - 70℃ |
| Operating Voltage: | 1.8-3.7V | Sleep Current Consumption: | 0.5μA |
| Frequency: | 434, 868, 915 MHz | ||
| High Light: | 4.8Km 433mhz Lora Module,0.5uA 433mhz Lora Module,Cansec Wireless Semtech LLCC68 |
||

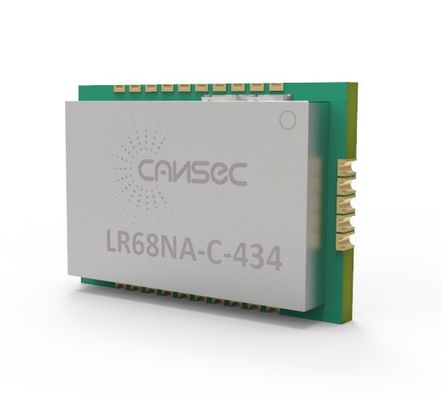

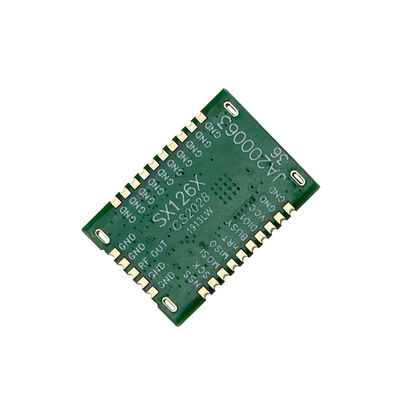

New Released 4.8Km LoRa IoT Module Cansec LR68Na-C 20dBm Cost Effective Semtech-Llcc68 LoRa 433 Mhz Module
New Released 4.8Km LoRa IoT Module Cansec LR68Na-C 20dBm Cost Effective Semtech-Llcc68 LoRa 433 Mhz Module
1. The LR68-NA-C module is sub-GHz radio transceivers that are ideal for long-range wireless applications. These devices support LoRa® modulation for LPWAN use cases and (G) FSK modulation for legacy use cases. The devices are highly configurable to meet different application requirements utilizing the global LoRaWAN® standard or proprietary protocols.
The LR68-NA-C is a half-duplex transceiver capable of low power operation in the 150-960 MHz ISM frequency band. The radio comprises four main blocks:
1.Analog Front End: the transmit and receive chains, as well as the data converter interface to ensuing digital blocks. The LR68NA-C transceiver is capable of delivering up to +21 dBm under the battery supply.
2.Digital Modem Bank: a range of modulation options is available in the LR68NA-C:
w LoRa® Rx/Tx, BW = 125 -250 - 500 kHz
w LoRa® SF = 5 - 6 - 7 - 8 - 9 for BW = 125 kHz
w LoRa® SF = 5 - 6 - 7 - 8 - 9 - 10 for BW = 250 kHz
w LoRa® SF = 5 - 6 - 7 - 8 - 9 - 10 - 11 for BW = 500 kHz
