IoT Nordic Ble 5.0 Bluetooth Low Energy Module Cansec BLE52832SA-A

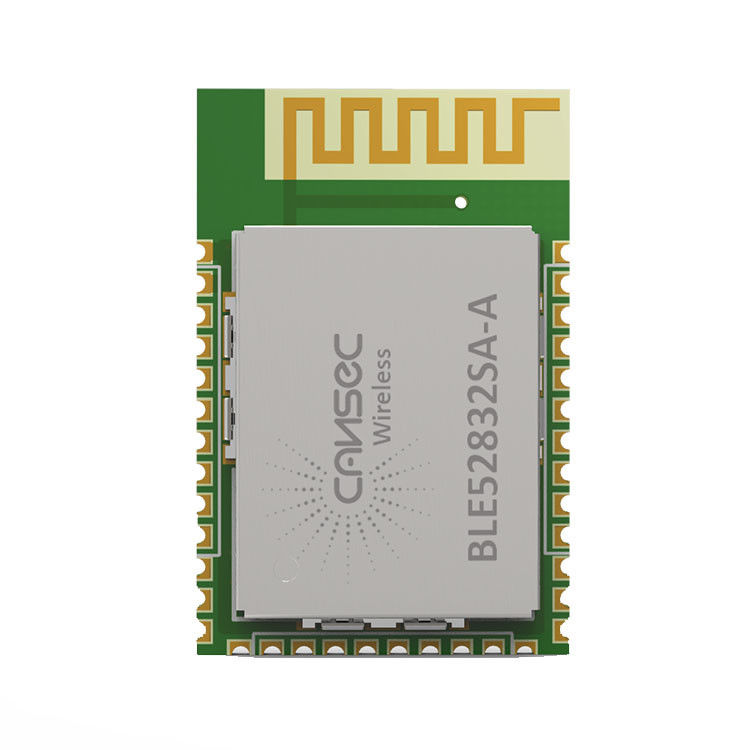

Large Image : IoT Nordic Ble 5.0 Bluetooth Low Energy Module Cansec BLE52832SA-A

Product Details:

Place of Origin:	Beijing
Brand Name:	Cansec Wireless
Model Number:	BLE52832SA-A

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	USD 3.43$ per piece
Packaging Details:	Box for 1000 pieces Package size: 403420 cm Gross weight: 5.000 kg
Delivery Time:	3~6 weeks
Payment Terms:	T/T
Supply Ability:	2000000 pieces per year

Contact Now

IoT Nordic Ble 5.0 Bluetooth Low Energy Module Cansec BLE52832SA-A

Description

Size:	1522.82.8mm	TX Power:	3dBm
RX Sensitivity:	-96dBm	TX Current:	22mA
RX Current:	15mA	Standby Current:	1uA
Antenna Type:	Chip Antenna	Chipset:	Nrf52832
High Light:	IoT Nordic Ble 5.0 , Ble 5.0 Bluetooth Low Energy Module , Cansec BLE52832SA-A

IoT Nordic Ble 5.0 Bluetooth Low Energy Module Cansec BLE52832SA-A 0

Long Range Pcb Antenna Multi Protocol Smart IoT Module Cansec BLE52832SA-A Nordic Ble 5.0 Module For Locks

Parameter		Min	Typ	Max	Unit
Operating Voltage		1.7	-	3.6	V
Operating Temperature		-20	-	+70	℃
Current Consumption	Sleep Mode	-	1	-	uA
	Receive mode	-	15	-	mA
	Transmit Mode	-	22	-	mA
TX Power (For Carrier)		-	-	3	dBm
RX Sensitivity (For Lora Modulation)		-	-	-96	dBm
Distance		160			m

Long Range Pcb Antenna Multi Protocol Smart IoT Module Cansec BLE52832SA-A Nordic Ble 5.0 Module For Locks

The BLE52832 module is based on nRF52832 SoC which is a powerful, highly flexible ultra-low power multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT and 2.4GHz ultra low-power wireless applications. 2. The nRF52832 SoC is built around a 32-bit ARM® Cortex™-M4F CPU with 512kB + 64kB RAM.
The embedded 2.4GHz transceiver supports Bluetooth Low Energy, ANT and proprietary 2.4 GHz protocol stack.
It is on air compatible with the nRF51 Series, nRF24L and nRF24AP Series products from Nordic Semiconductor.

FAQQ1: Are you a factory or trade company?

A1: We are a professional factory with 25 years experience.

Q2: Can you accept OEM/ODM?

A2: Sure, we have rich OEM&ODM experience.

Q3: Do you have quality assurance?

A3; Each of our products has undergone quality testing and has two years of free after-sales service.
