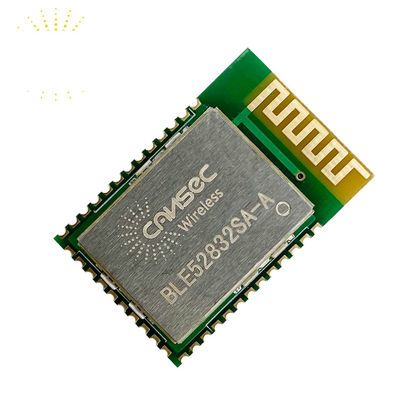

SOC PCB BLE Receiver Module Nordic BLE52832SA-A Ultra Low Power

SOC PCB BLE Receiver Module Nordic BLE52832SA-A Ultra Low Power
SOC PCB BLE Receiver Module Nordic BLE52832SA-A Ultra Low Power

Large Image :  SOC PCB BLE Receiver Module Nordic BLE52832SA-A Ultra Low Power

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: BLE52832SA-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 3.43$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year
Contact Now

SOC PCB BLE Receiver Module Nordic BLE52832SA-A Ultra Low Power

Description
Size: 15*22.8*2.8mm TX Power: 3dBm
RX Sensitivity: -96dBm TX Current: 22mA
RX Current: 15mA Standby Current: 1uA
Antenna Type: Chip Antenna Chipset: Nrf52832
High Light:

Soc Pcb Ble Receiver Module

,

Ble Receiver Module Nordic

,

Nordic BLE52832SA-A

SOC PCB BLE Receiver Module Nordic BLE52832SA-A Ultra Low Power 0

Customized Cansec Blue Tooth Receiver Module Highly Flexible Ultra-Low Power Soc Pcb Ble BLE52832SA-A Nordic



Parameter
Min
Typ
Max
Unit
Operating Voltage
1.7
-
3.6
V
Operating Temperature
-20
-
+70
℃
Current
Consumption
Sleep Mode
-
1
-
uA

Receive mode
-
15
-
mA

Transmit Mode
-
22
-
mA
TX Power (For Carrier)
-
-
3
dBm
RX Sensitivity (For Lora Modulation)
-
-
-96
dBm
Distance
160
m



Customized Cansec Blue Tooth Receiver Module Highly Flexible Ultra-Low Power Soc Pcb Ble BLE52832SA-A Nordic

1. The BLE52832 module is based on nRF52832 SoC which is a powerful, highly flexible ultra-low power multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT and 2.4GHz ultra low-power wireless applications.
2. The nRF52832 SoC is built around a 32-bit ARM® Cortex™-M4F CPU with 512kB + 64kB RAM.
3. The embedded 2.4GHz transceiver supports Bluetooth Low Energy, ANT and proprietary 2.4 GHz protocol stack.
4. It is on air compatible with the nRF51 Series, nRF24L and nRF24AP Series products from Nordic Semiconductor.
SOC PCB BLE Receiver Module Nordic BLE52832SA-A Ultra Low Power 1

SOC PCB BLE Receiver Module Nordic BLE52832SA-A Ultra Low Power 2

SOC PCB BLE Receiver Module Nordic BLE52832SA-A Ultra Low Power 3SOC PCB BLE Receiver Module Nordic BLE52832SA-A Ultra Low Power 4

SOC PCB BLE Receiver Module Nordic BLE52832SA-A Ultra Low Power 5

SOC PCB BLE Receiver Module Nordic BLE52832SA-A Ultra Low Power 6SOC PCB BLE Receiver Module Nordic BLE52832SA-A Ultra Low Power 7SOC PCB BLE Receiver Module Nordic BLE52832SA-A Ultra Low Power 8SOC PCB BLE Receiver Module Nordic BLE52832SA-A Ultra Low Power 9

FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
