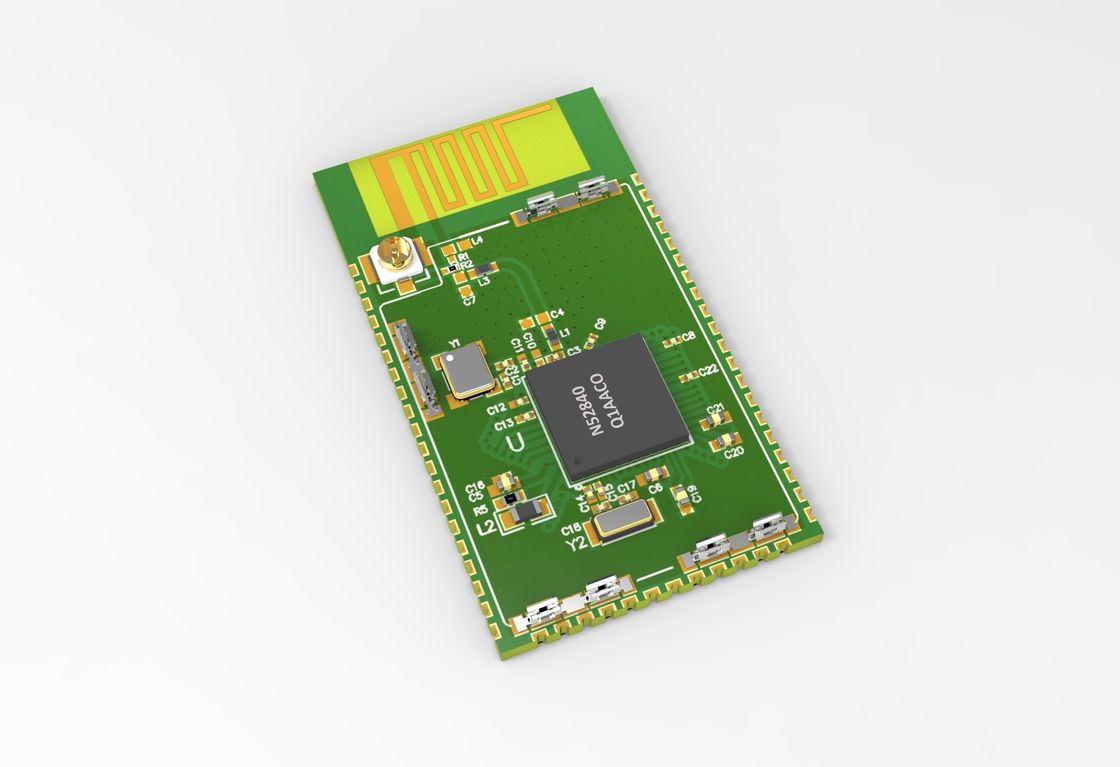

BLE52840SA-B Bluetooth Low Energy Module Nordic 52840 Pcb Ble

BLE52840SA-B Bluetooth Low Energy Module Nordic 52840 Pcb Ble
BLE52840SA-B Bluetooth Low Energy Module Nordic 52840 Pcb Ble

Large Image :  BLE52840SA-B Bluetooth Low Energy Module Nordic 52840 Pcb Ble

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: BLE52840SA-B
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 5.14$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year
Contact Now

BLE52840SA-B Bluetooth Low Energy Module Nordic 52840 Pcb Ble

Description
Size: 18.6*33.4*2.8mm TX Power: 6dBm
RX Sensitivity: -103dBm TX Current: 36mA
RX Current: 4.6mA Standby Current: 1.5uA
Antenna Type: Chip Antenna Chipset: Nrf52840
Highlight:

BLE52840SA-B Bluetooth Low Energy Module

,

Bluetooth Low Energy Module Nordic 52840

,

Nordic 52840 Pcb Ble

BLE52840SA-B Bluetooth Low Energy Module Nordic 52840 Pcb Ble 0

Rich Set Of Security Features Cansec BLE52840SA-B Ble Blue Tooth Led Module Nordic 52840 Pcb Ble Module



Parameter
Min
Typ
Max
Unit
Operating Voltage
1.7
3.3
5.5
V
Operating Temperature
-20
-
+70
℃
Current
Consumption
Sleep Mode
-
1.5
-
uA

Receive mode
-
4.6
-
mA

Transmit Mode (@6dBm)
-
36
-
mA
TX Power (For Carrier)
-
-
6
dBm
RX Sensitivity (For Lora Modulation)
-
-
-103
dBm
Distance
180
m



Rich Set Of Security Features Cansec BLE52840SA-B Ble Blue Tooth Led Module Nordic 52840 Pcb Ble Module

1. The BLE52840 module is designed based on nRF52840
2. The nRF52840 is fully multi-protocol capable with full protocol concurrency. It has protocol support for Bluetooth 5, Bluetooth mesh, Thread, Zigbee, 802.15.4, ANT and 2.4 GHz proprietary stacks.
3. The nRF52840 is built around the 32-bit ARM® Cortex™-M4 CPU with floating point unit running at 64 MHz.
4. It has NFC-A Tag for use in simplified pairing and payment solutions.
5. The ARM TrustZone® CryptoCell cryptographic unit is included on-chip and brings an extensive range of cryptographic options that execute highly efficiently independent of the CPU.
6. It has numerous digital peripherals and interfaces such as high speed SPI and QSPI for interfacing to external flash and displays, PDM and I2S for digital microphones and audio, and a full speed USB device for data transfer and power supply for battery recharging.
7. Exceptionally low energy consumption is achieved using a sophisticated on-chip adaptive power management system.

BLE52840SA-B Bluetooth Low Energy Module Nordic 52840 Pcb Ble 1

BLE52840SA-B Bluetooth Low Energy Module Nordic 52840 Pcb Ble 2

BLE52840SA-B Bluetooth Low Energy Module Nordic 52840 Pcb Ble 3

BLE52840SA-B Bluetooth Low Energy Module Nordic 52840 Pcb Ble 4

BLE52840SA-B Bluetooth Low Energy Module Nordic 52840 Pcb Ble 5

BLE52840SA-B Bluetooth Low Energy Module Nordic 52840 Pcb Ble 6

BLE52840SA-B Bluetooth Low Energy Module Nordic 52840 Pcb Ble 7

BLE52840SA-B Bluetooth Low Energy Module Nordic 52840 Pcb Ble 8

BLE52840SA-B Bluetooth Low Energy Module Nordic 52840 Pcb Ble 9

BLE52840SA-B Bluetooth Low Energy Module Nordic 52840 Pcb Ble 10
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.


1Ms/s symbol rate exploits maximum available channel bandwidth

Fast frequency hopping avoids interference

Adaptive output power minimizes interference

Short data packets maximize capacity during interference

Fast acknowledge allows low coding overhead for links

CVSD (Continuous Variable Slope Delta Modulation) voice coding enables

operation at high bit- error rates

Flexible packet types supports wide application range

Air interface tailored to minimize current consumption
