NRF52840 Ble Bluetooth Low Energy Module Multi Protocol BLE52840SA-B

Certification
China Beijing JiaAn Electronics Technology Co., Ltd., certification
China Beijing JiaAn Electronics Technology Co., Ltd., certification
Customer Reviews
BEA Inc. receives great customer service from the entire Cansec team. We appreciate the prompt responses and feedback to our questions and enquiries. Cansec immediately responds and tries to fix or improve any complaints or issues that we may have.

—— BEA Inc.

Thanks for JiaAn's cooperation and support as always, and hope to continue to maintain close cooperation and good collaborative work in the follow-up work.

—— Jingdong health (JDH)

Thank you for your valuable cooperation for many years.

—— UDEA

I'm Online Chat Now

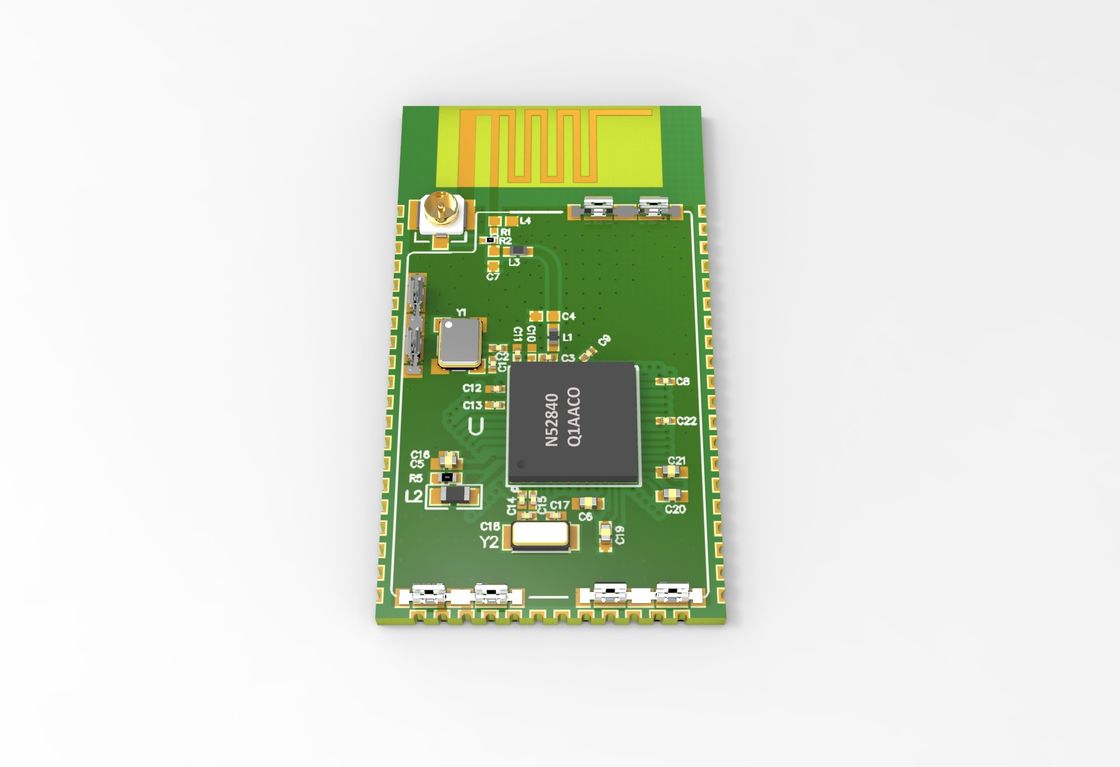

NRF52840 Ble Bluetooth Low Energy Module Multi Protocol BLE52840SA-B

NRF52840 Ble Bluetooth Low Energy Module Multi Protocol BLE52840SA-B
NRF52840 Ble Bluetooth Low Energy Module Multi Protocol BLE52840SA-B NRF52840 Ble Bluetooth Low Energy Module Multi Protocol BLE52840SA-B

Large Image :  NRF52840 Ble Bluetooth Low Energy Module Multi Protocol BLE52840SA-B

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: BLE52840SA-B
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 5.14$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

NRF52840 Ble Bluetooth Low Energy Module Multi Protocol BLE52840SA-B

Description
Size: 18.6*33.4*2.8mm TX Power: 6dBm
RX Sensitivity: -103dBm TX Current: 36mA
RX Current: 4.6mA Standby Current: 1.5uA
Antenna Type: Chip Antenna Chipset: Nrf52840
High Light:

Ble Bluetooth Low Energy Module

,

NRF52840 Bluetooth Low Energy Module

,

Multi Protocol BLE52840SA-B

NRF52840 Ble Bluetooth Low Energy Module Multi Protocol BLE52840SA-B 0

Ble Low Energy IoT Module Temperature Sensor Cansec Multi Protocol BLE52840SA-B Nordic NRF52840 5 Ble Module



Parameter
Min
Typ
Max
Unit
Operating Voltage
1.7
3.3
5.5
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode
-
1.5
-
uA

Receive mode
-
4.6
-
mA

Transmit Mode (@6dBm)
-
36
-
mA
TX Power (For Carrier)
-
-
6
dBm
RX Sensitivity (For Lora Modulation)
-
-
-103
dBm
Distance
180
m



Ble Low Energy IoT Module Temperature Sensor Cansec Multi Protocol BLE52840SA-B Nordic NRF52840 5 Ble Module

1. The BLE52840 module is designed based on nRF52840
2. The nRF52840 is fully multi-protocol capable with full protocol concurrency. It has protocol support for Bluetooth 5, Bluetooth mesh, Thread, Zigbee, 802.15.4, ANT and 2.4 GHz proprietary stacks.
3. The nRF52840 is built around the 32-bit ARM® Cortex™-M4 CPU with floating point unit running at 64 MHz.
4. It has NFC-A Tag for use in simplified pairing and payment solutions.
5. The ARM TrustZone® CryptoCell cryptographic unit is included on-chip and brings an extensive range of cryptographic options that execute highly efficiently independent of the CPU.
6. It has numerous digital peripherals and interfaces such as high speed SPI and QSPI for interfacing to external flash and displays, PDM and I2S for digital microphones and audio, and a full speed USB device for data transfer and power supply for battery recharging.
7. Exceptionally low energy consumption is achieved using a sophisticated on-chip adaptive power management system.

NRF52840 Ble Bluetooth Low Energy Module Multi Protocol BLE52840SA-B 1

NRF52840 Ble Bluetooth Low Energy Module Multi Protocol BLE52840SA-B 2

NRF52840 Ble Bluetooth Low Energy Module Multi Protocol BLE52840SA-B 3

NRF52840 Ble Bluetooth Low Energy Module Multi Protocol BLE52840SA-B 4

NRF52840 Ble Bluetooth Low Energy Module Multi Protocol BLE52840SA-B 5

NRF52840 Ble Bluetooth Low Energy Module Multi Protocol BLE52840SA-B 6

NRF52840 Ble Bluetooth Low Energy Module Multi Protocol BLE52840SA-B 7

NRF52840 Ble Bluetooth Low Energy Module Multi Protocol BLE52840SA-B 8

NRF52840 Ble Bluetooth Low Energy Module Multi Protocol BLE52840SA-B 9

NRF52840 Ble Bluetooth Low Energy Module Multi Protocol BLE52840SA-B 10
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.


Bluetooth low energy (Bluetooth LE or BLE) is a wireless technology which is aimed for a wide range of applications. Compared to previous Bluetooth technologies , BLE is intended to provide considerably reduced power consumption and lower cost, while maintaining a similar communication range with the devices.

Some of the Key features of Bluetooth low energy wireless technology include:

● This technology comes integrated with the Bluetooth 4.0 version.
● This technology is capable running on Ultra-low peak power consumption.
● It has got the ability to run for years on standard, coin-cell batteries.
● This technology comes for very Low cost as comes to other Bluetooth technologies.
● It has got a enhanced range of communication.
