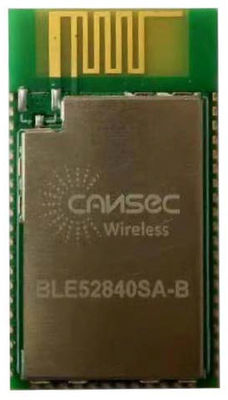

Flexible Power Management Wireless IoT Module Low Power Ble Module Cansec NRF52840 BLE52840SA-B Nordic

Flexible Power Management Wireless IoT Module Low Power Ble Module Cansec NRF52840 BLE52840SA-B Nordic
Flexible Power Management Wireless IoT Module Low Power Ble Module Cansec NRF52840 BLE52840SA-B Nordic

Large Image :  Flexible Power Management Wireless IoT Module Low Power Ble Module Cansec NRF52840 BLE52840SA-B Nordic

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: BLE52840SA-B
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 5.14$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

Flexible Power Management Wireless IoT Module Low Power Ble Module Cansec NRF52840 BLE52840SA-B Nordic

Description
Size: 18.6*33.4*2.8mm TX Power: 6dBm
RX Sensitivity: -103dBm TX Current: 36mA
RX Current: 4.6mA Standby Current: 1.5uA
Antenna Type: Chip Antenna Chipset: Nrf52840

Flexible Power Management Wireless IoT Module Low Power Ble Module Cansec NRF52840 BLE52840SA-B Nordic 0

Flexible Power Management Wireless IoT Module Low Power Ble Module Cansec NRF52840 BLE52840SA-B Nordic



Parameter
Min
Typ
Max
Unit
Operating Voltage
1.7
3.3
5.5
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode
-
1.5
-
uA

Receive mode
-
4.6
-
mA

Transmit Mode (@6dBm)
-
36
-
mA
TX Power (For Carrier)
-
-
6
dBm
RX Sensitivity (For Lora Modulation)
-
-
-103
dBm
Distance
180
m



Flexible Power Management Wireless IoT Module Low Power Ble Module Cansec NRF52840 BLE52840SA-B Nordic

1. The BLE52840 module is designed based on nRF52840
2. The nRF52840 is fully multi-protocol capable with full protocol concurrency. It has protocol support for Bluetooth 5, Bluetooth mesh, Thread, Zigbee, 802.15.4, ANT and 2.4 GHz proprietary stacks.
3. The nRF52840 is built around the 32-bit ARM® Cortex™-M4 CPU with floating point unit running at 64 MHz.
4. It has NFC-A Tag for use in simplified pairing and payment solutions.
5. The ARM TrustZone® CryptoCell cryptographic unit is included on-chip and brings an extensive range of cryptographic options that execute highly efficiently independent of the CPU.
6. It has numerous digital peripherals and interfaces such as high speed SPI and QSPI for interfacing to external flash and displays, PDM and I2S for digital microphones and audio, and a full speed USB device for data transfer and power supply for battery recharging.
7. Exceptionally low energy consumption is achieved using a sophisticated on-chip adaptive power management system.

Flexible Power Management Wireless IoT Module Low Power Ble Module Cansec NRF52840 BLE52840SA-B Nordic 1

Flexible Power Management Wireless IoT Module Low Power Ble Module Cansec NRF52840 BLE52840SA-B Nordic 2

Flexible Power Management Wireless IoT Module Low Power Ble Module Cansec NRF52840 BLE52840SA-B Nordic 3

Flexible Power Management Wireless IoT Module Low Power Ble Module Cansec NRF52840 BLE52840SA-B Nordic 4

Flexible Power Management Wireless IoT Module Low Power Ble Module Cansec NRF52840 BLE52840SA-B Nordic 5

Flexible Power Management Wireless IoT Module Low Power Ble Module Cansec NRF52840 BLE52840SA-B Nordic 6

Flexible Power Management Wireless IoT Module Low Power Ble Module Cansec NRF52840 BLE52840SA-B Nordic 7

Flexible Power Management Wireless IoT Module Low Power Ble Module Cansec NRF52840 BLE52840SA-B Nordic 8

Flexible Power Management Wireless IoT Module Low Power Ble Module Cansec NRF52840 BLE52840SA-B Nordic 9

Flexible Power Management Wireless IoT Module Low Power Ble Module Cansec NRF52840 BLE52840SA-B Nordic 10

FAQ

Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
