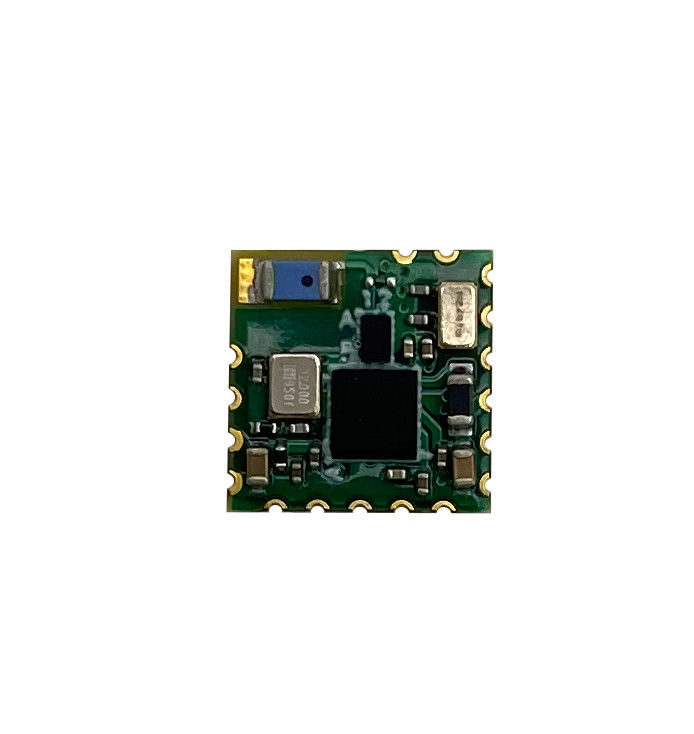

IoT BlueNRG-2 Cansec Wireless Bluetooth Low Energy Module

IoT BlueNRG-2 Cansec Wireless Bluetooth Low Energy Module
IoT BlueNRG-2 Cansec Wireless Bluetooth Low Energy Module

Large Image :  IoT BlueNRG-2 Cansec Wireless Bluetooth Low Energy Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: BLE234
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 3.11$ per piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year

IoT BlueNRG-2 Cansec Wireless Bluetooth Low Energy Module

Description
Chipset: BlueNRG 2 By ST Application: IoT
Size: 8*8*2mm Operating Voltage: 1.8-3.6V
TX Power: 6dBm RX Sensitivity: -88dBm
Sleep Current Consumption: 1μA
High Light:

BlueNRG-2 Bluetooth Low Energy Module

,

Cansec Wireless Bluetooth Low Energy Module

,

IoT wifi and bluetooth module



IoT BlueNRG-2 Cansec Wireless Bluetooth Low Energy Module 0

Wearable Smart Home Low Cost Ble Module Low Energy Cansec Ble234 St Bluenrg-234 Module IoT



Parameter
Min
Typ
Max
Unit
Operating Voltage
1.7
-
3.6
V
Operating Temperature
-30
-
85
°C
Current
Consumption
Rest
-
-
1
uA

Receive
-
7.7

mA

Transmit Mode (7dBm)
-
15.1

mA
TX Power
-
-
6
dBm
RX Sensitivity
-
-
-88
dBm



Wearable Smart Home Low Cost Ble Module Low Energy Cansec Ble234 St Bluenrg-234 Module IoT

1. BLE234CA module is designed based on ST company's BlueNRG-2.The BlueNRG-2 is a very low power Bluetooth low energy (BLE5.0) single-mode system-on-chip compliant with Bluetooth specification.
2. The BlueNRG-2 extends the features of award-winning BlueNRG network processor, enabling the usage of the embedded Cortex M0 for running the user application code.
3. The BlueNRG-2 includes 256 kB of programming Flash memory, 24 kB of static RAM memory with retention (two 12 kB banks) and SPI, UART, I2C standard communication interface peripherals. It also features multifunction timers, watchdog, RTC and DMA controller.
4. An ADC is available for interfacing with analog sensors, and for reading the measurement of the integrated battery monitor. A digital filter is available for processing a PDM stream.
5. The BlueNRG-2 offers the same excellent RF performance of the BlueNRG radio, and the integrated high efficiency DC/DC converter keeps the same ultra-low power characteristics, but the BlueNRG-2 improves the BlueNRG sleep mode current consumption allowing a further increase in the battery lifetime of the applications.
IoT BlueNRG-2 Cansec Wireless Bluetooth Low Energy Module 1
IoT BlueNRG-2 Cansec Wireless Bluetooth Low Energy Module 2
IoT BlueNRG-2 Cansec Wireless Bluetooth Low Energy Module 3
IoT BlueNRG-2 Cansec Wireless Bluetooth Low Energy Module 4

IoT BlueNRG-2 Cansec Wireless Bluetooth Low Energy Module 5

IoT BlueNRG-2 Cansec Wireless Bluetooth Low Energy Module 6

IoT BlueNRG-2 Cansec Wireless Bluetooth Low Energy Module 7

IoT BlueNRG-2 Cansec Wireless Bluetooth Low Energy Module 8

IoT BlueNRG-2 Cansec Wireless Bluetooth Low Energy Module 9
IoT BlueNRG-2 Cansec Wireless Bluetooth Low Energy Module 10
IoT BlueNRG-2 Cansec Wireless Bluetooth Low Energy Module 11
IoT BlueNRG-2 Cansec Wireless Bluetooth Low Energy Module 12
