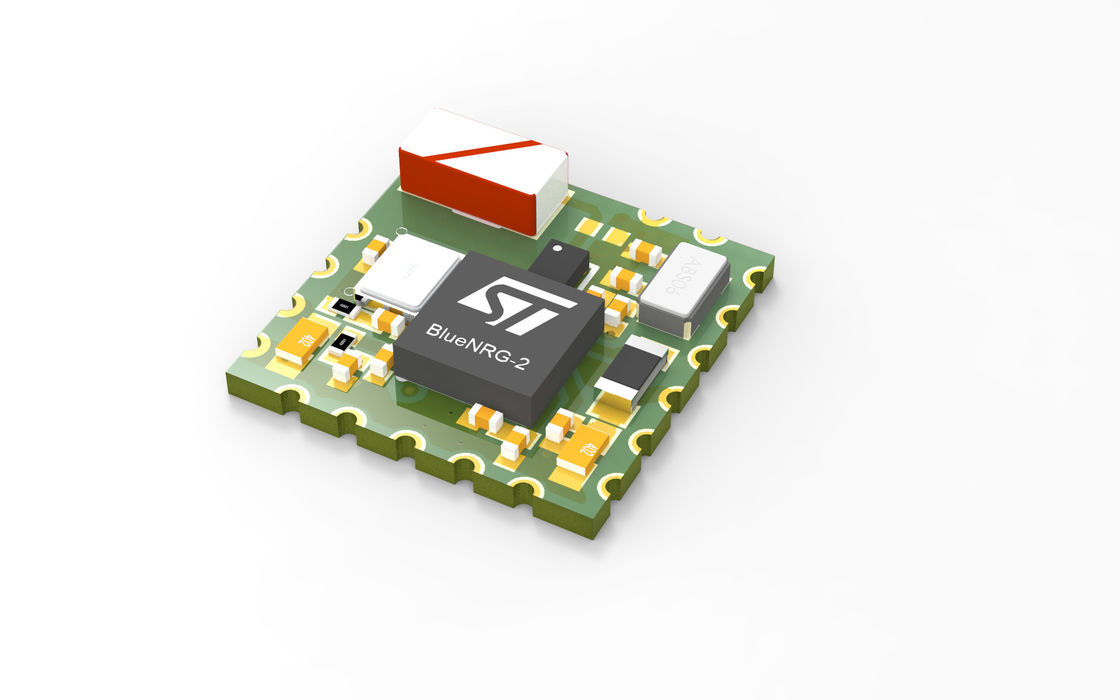

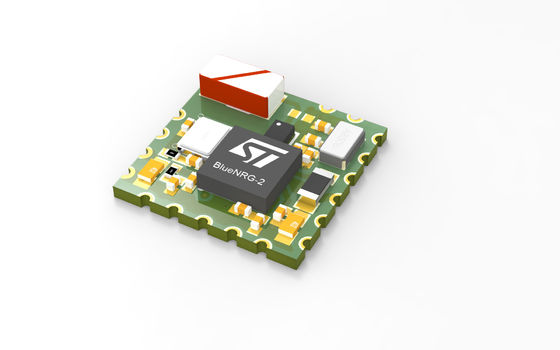

6dBm BlueNRG 234 ST Module Multi Protocol Ultra Small Low Power Bluetooth

6dBm BlueNRG 234 ST Module Multi Protocol Ultra Small Low Power Bluetooth
6dBm BlueNRG 234 ST Module Multi Protocol Ultra Small Low Power Bluetooth

Large Image :  6dBm BlueNRG 234 ST Module Multi Protocol Ultra Small Low Power Bluetooth

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: BLE234
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 3.11$ per piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year

6dBm BlueNRG 234 ST Module Multi Protocol Ultra Small Low Power Bluetooth

Description
Chipset: BlueNRG 2 By ST Application: IoT Devices, Fitness And Sports Equipment
Size: 8*8*2mm Operating Voltage: 1.8-3.6V
TX Power: 6dBm RX Sensitivity: -88dBm
Sleep Current Consumption: 1μA Flash& RAM: 256kB/24kB
I/O: 11 Protocal: BLE5 & Mesh
High Light:

BlueNRG 234 ST Module

,

6dBm ST Module

,

BlueNRG Low Power Bluetooth Module

6dBm BlueNRG 234 ST Module Multi Protocol Ultra Small Low Power Bluetooth 0

Ultra Small Size Low Power Blue Tooth Module IoT Solution Cansec Ble234 St Bluenrg-234 Multi-Protocol



Parameter
Min
Typ
Max
Unit
Operating Voltage
1.7
-
3.6
V
Operating Temperature
-30
-
85
°C
Current
Consumption
Rest
-
-
1
uA

Receive
-
7.7

mA

Transmit Mode (7dBm)
-
15.1

mA
TX Power
-
-
6
dBm
RX Sensitivity
-
-
-88
dBm



Ultra Small Size Low Power Blue Tooth Module IoT Solution Cansec Ble234 St Bluenrg-234 Multi-Protocol

Features
- Bluetooth low energy single mode system on chip compliant with Bluetooth 5.0 specifications:
Master, Slave and multiple simultaneous roles LE data packet length extension
- Operating supply voltage from 1.7 to 3.6V
- Integrated linear regulator and DC-DC step-down converter
- High performance, ultra-low power Cortex M0 32-bit based architecture core
- Programmable 256KB Flash
- 24KB RAM with retention (two 12 KB banks)
- UART interface
- SPI interface
- I2C interface
- 11 GPIOS
- 2 x multifunction timers
- 10 bit ADC
- Watchdog and RTC
- DMA controller
- PDM stream processor
- 32 MHz crystal oscillator
- Battery voltage monitor and temperature sensor (at the antenna connector)
- Excellent RF link budget (up to 96dB)
- Accurate RSSI to allow power control 8.3 mA TX current (@ -2dBm, 3V)
- Down to 1μA current consumption with active BLE stack (sleep mode)
- Average advertisement current consumption
- 15.34 μA (advertisement interval 1000ms), 1 year 8 month 19days with 230mAh battery (CR2032)
- Average connection current consumption 7.059 μA (connection interval 1000ms), 3 yeas 10 months and 12days with 230mA battery (CR2032)
- Pre-programmed bootloader via UART
- Up to +6 dBm available output power
6dBm BlueNRG 234 ST Module Multi Protocol Ultra Small Low Power Bluetooth 1
6dBm BlueNRG 234 ST Module Multi Protocol Ultra Small Low Power Bluetooth 2
6dBm BlueNRG 234 ST Module Multi Protocol Ultra Small Low Power Bluetooth 3
6dBm BlueNRG 234 ST Module Multi Protocol Ultra Small Low Power Bluetooth 4

6dBm BlueNRG 234 ST Module Multi Protocol Ultra Small Low Power Bluetooth 5

6dBm BlueNRG 234 ST Module Multi Protocol Ultra Small Low Power Bluetooth 6

6dBm BlueNRG 234 ST Module Multi Protocol Ultra Small Low Power Bluetooth 7

6dBm BlueNRG 234 ST Module Multi Protocol Ultra Small Low Power Bluetooth 8

6dBm BlueNRG 234 ST Module Multi Protocol Ultra Small Low Power Bluetooth 9
6dBm BlueNRG 234 ST Module Multi Protocol Ultra Small Low Power Bluetooth 10
6dBm BlueNRG 234 ST Module Multi Protocol Ultra Small Low Power Bluetooth 11
6dBm BlueNRG 234 ST Module Multi Protocol Ultra Small Low Power Bluetooth 12
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
