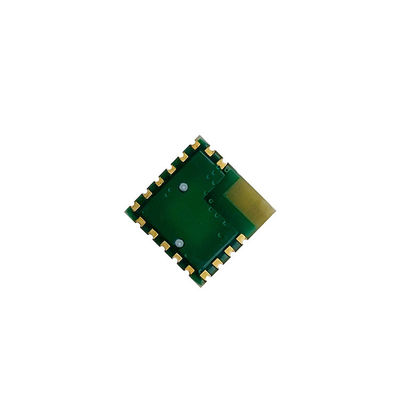

Chip Antenna 6dBm Bluetooth Low Energy Module BlueNRG 2 10M Range

Chip Antenna 6dBm Bluetooth Low Energy Module BlueNRG 2 10M Range
Chip Antenna 6dBm Bluetooth Low Energy Module BlueNRG 2 10M Range Chip Antenna 6dBm Bluetooth Low Energy Module BlueNRG 2 10M Range

Large Image :  Chip Antenna 6dBm Bluetooth Low Energy Module BlueNRG 2 10M Range

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: BLE234
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 3.11$ per piece
Packaging Details: Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 20000000 units per year

Chip Antenna 6dBm Bluetooth Low Energy Module BlueNRG 2 10M Range

Description
Chipset: BlueNRG 2 By ST Application: IoT Products, Wearable Devices
Size: 8*8*2mm Operating Voltage: 1.8-3.6V
TX Power: 6dBm RX Sensitivity: -88dBm
Sleep Current Consumption: 1μA Antenna: Chip Antenna
Range: 10M
Highlight:

6dBm Bluetooth Low Energy Module

,

Bluetooth Low Energy Module BlueNRG 2

,

10M small bluetooth module

Chip Antenna 6dBm Bluetooth Low Energy Module BlueNRG 2 10M Range 0

IoT Platform Solutions Cansec Blue Tooth Module St Bluenrg-234 Ble Module Ultra Small Size For Smart Home



Parameter
Min
Typ
Max
Unit
Operating Voltage
1.7
-
3.6
V
Operating Temperature
-30
-
85
°C
Current
Consumption
Rest
-
-
1
uA

Receive
-
7.7

mA

Transmit Mode (7dBm)
-
15.1

mA
TX Power
-
-
6
dBm
RX Sensitivity
-
-
-88
dBm



IoT Platform Solutions Cansec Blue Tooth Module St Bluenrg-234 Ble Module Ultra Small Size For Smart Home

Desciption

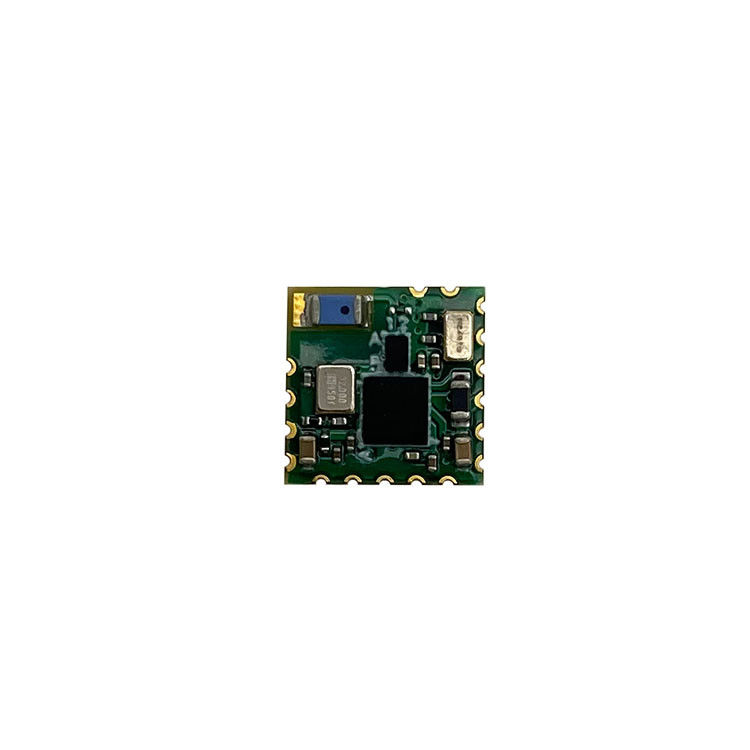

BLE234 is the Bluetooth Low Energy module based on ST company's BlueNRG-2 chipset,
a low power single-mode system on chip follows the Bluetooth specification.
Features of the BlueNRG-2 includes 256KB of programming Flash memory, 24KB of Static RAM memory with two 12KB banks and SPI, UART. I2C standard communication interface peripherals. Other features includes multifunction timers, watchdog, RTC and DMA controller.

Applications

Wearable equipment
Watches
Fitness
Consumer medical
Chip Antenna 6dBm Bluetooth Low Energy Module BlueNRG 2 10M Range 1
Chip Antenna 6dBm Bluetooth Low Energy Module BlueNRG 2 10M Range 2
Chip Antenna 6dBm Bluetooth Low Energy Module BlueNRG 2 10M Range 3
Chip Antenna 6dBm Bluetooth Low Energy Module BlueNRG 2 10M Range 4

Chip Antenna 6dBm Bluetooth Low Energy Module BlueNRG 2 10M Range 5

Chip Antenna 6dBm Bluetooth Low Energy Module BlueNRG 2 10M Range 6

Chip Antenna 6dBm Bluetooth Low Energy Module BlueNRG 2 10M Range 7

Chip Antenna 6dBm Bluetooth Low Energy Module BlueNRG 2 10M Range 8

Chip Antenna 6dBm Bluetooth Low Energy Module BlueNRG 2 10M Range 9
Chip Antenna 6dBm Bluetooth Low Energy Module BlueNRG 2 10M Range 10
Chip Antenna 6dBm Bluetooth Low Energy Module BlueNRG 2 10M Range 11
Chip Antenna 6dBm Bluetooth Low Energy Module BlueNRG 2 10M Range 12
