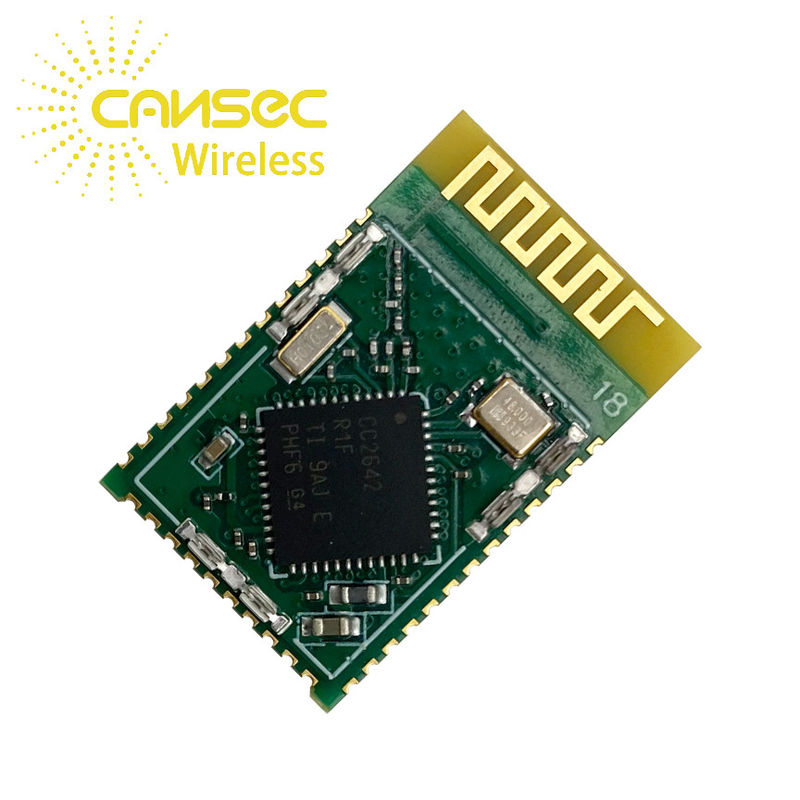

Ble5.1 CC2642R1FRGZR TI RF Module Beacon Long Range Ble Module

Ble5.1 CC2642R1FRGZR TI RF Module Beacon Long Range Ble Module
Ble5.1 CC2642R1FRGZR TI RF Module Beacon Long Range Ble Module

Large Image :  Ble5.1 CC2642R1FRGZR TI RF Module Beacon Long Range Ble Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: AN2642RSA-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 4.07$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 5-8 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

Ble5.1 CC2642R1FRGZR TI RF Module Beacon Long Range Ble Module

Description
Size: 15mm*23.2mm*3mm TX Power: 4dBm
RX Sensitivity: -105dBm TX Current: 9.6mA
RX Current: 6.9mA Standby Current: 1μA
Antenna Type: PCB Antenna Chipset: CC2642R1FRGZR Bi TI
High Light:

Ble5.1 TI RF Module

,

Beacon Long Range Ble Module

,

CC2642R1FRGZR TI RF Module

Ble5.1 CC2642R1FRGZR TI RF Module Beacon Long Range Ble Module 0

Cansec Smart IoT Module Ble5.1 AN2642RSA-A Long Range Beacon Blue Tooth Ble Module Ti CC2642R



Parameter
Min
Max
Unit
Operating Voltage
1.8
3.8
V
Operating Temperature
-40
85
TX Power

+5
dBm
RX Sensitivity

-105
dBm
StorageTemperature
-40
150

Cansec Smart IoT Module Ble5.1 AN2642RSA-A Long Range Beacon Blue Tooth Ble Module Ti CC2642R

1. AN2642RSA-A Module is designed based on CC2642R Bluetooth Smart(BLE4&5) System-on-Chip, fully supports the single-mode Bluetooth Low Energy operation.

2. The module provides the ability to either put your entire application into the integrated 48-MHz Arm Cortex M4F microcontroller or use the module in Network Processor mode in conjunction with the microcontroller of your choice.

Ble5.1 CC2642R1FRGZR TI RF Module Beacon Long Range Ble Module 1

Ble5.1 CC2642R1FRGZR TI RF Module Beacon Long Range Ble Module 2

Ble5.1 CC2642R1FRGZR TI RF Module Beacon Long Range Ble Module 3

Ble5.1 CC2642R1FRGZR TI RF Module Beacon Long Range Ble Module 4

Ble5.1 CC2642R1FRGZR TI RF Module Beacon Long Range Ble Module 5

Ble5.1 CC2642R1FRGZR TI RF Module Beacon Long Range Ble Module 6

Ble5.1 CC2642R1FRGZR TI RF Module Beacon Long Range Ble Module 7Ble5.1 CC2642R1FRGZR TI RF Module Beacon Long Range Ble Module 8

Ble5.1 CC2642R1FRGZR TI RF Module Beacon Long Range Ble Module 9

Ble5.1 CC2642R1FRGZR TI RF Module Beacon Long Range Ble Module 10

Ble5.1 CC2642R1FRGZR TI RF Module Beacon Long Range Ble Module 11
