Wireless IoT 4dBm TI RF Module 2.4Ghz Cansec AN2642RSA-A

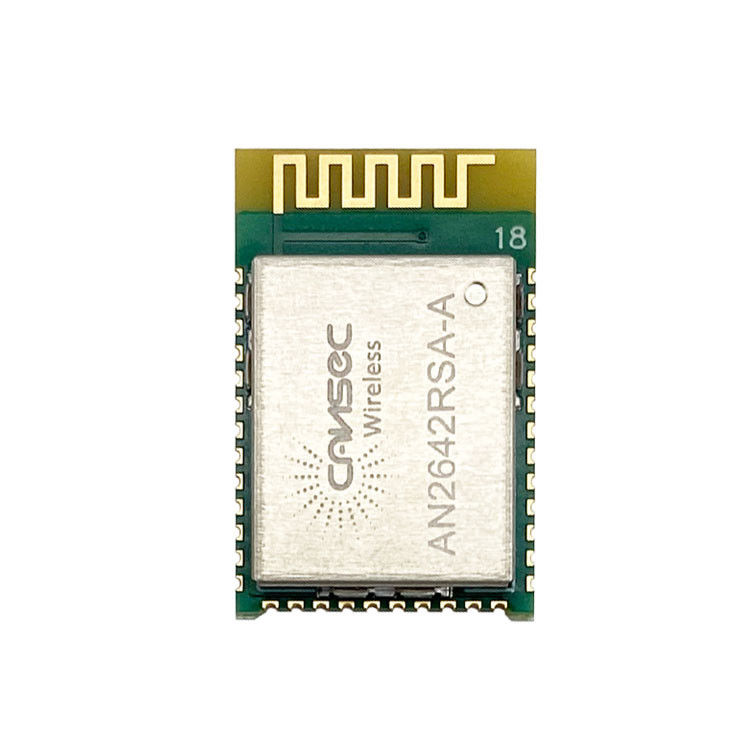

Large Image : Wireless IoT 4dBm TI RF Module 2.4Ghz Cansec AN2642RSA-A

Product Details:

Place of Origin:	Beijing
Brand Name:	Cansec Wireless
Model Number:	AN2642RSA-A

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	USD 4.07$ per piece
Packaging Details:	Box for 1000 pieces Package size: 403420 cm Gross weight: 5.000 kg
Delivery Time:	5-8 weeks
Payment Terms:	T/T
Supply Ability:	2000000 pieces per year

Contact Now

Wireless IoT 4dBm TI RF Module 2.4Ghz Cansec AN2642RSA-A

Description

Size:	15mm23.2mm3mm	TX Power:	4dBm
RX Sensitivity:	-105dBm	TX Current:	9.6mA
RX Current:	6.9mA	Standby Current:	1μA
Antenna Type:	PCB Antenna	Chipset:	CC2642R1FRGZR Bi TI
Highlight:	Wireless IoT TI RF Module , 2.4Ghz Cansec AN2642RSA-A , 4dBm TI RF Module

Wireless IoT 4dBm TI RF Module 2.4Ghz Cansec AN2642RSA-A 0

Cost Effective Cansec AN2642RSA-A 2.4Ghz Wireless IoT Module Ti CC2642R Blue Tooth Module

Parameter	Min	Max	Unit
Operating Voltage	1.8	3.8	V
Operating Temperature	-40	85	℃
TX Power		+5	dBm
RX Sensitivity		-105	dBm
StorageTemperature	-40	150	℃

Cost Effective Cansec AN2642RSA-A 2.4Ghz Wireless IoT Module Ti CC2642R Blue Tooth Module
1. AN2642RSA-A Module is designed based on CC2642R Bluetooth Smart(BLE4&5) System-on-Chip, fully supports the single-mode Bluetooth Low Energy operation.
2. The module provides the ability to either put your entire application into the integrated 48-MHz Arm Cortex M4F microcontroller or use the module in Network Processor mode in conjunction with the microcontroller of your choice.

Wireless IoT 4dBm TI RF Module 2.4Ghz Cansec AN2642RSA-A 1

Wireless IoT 4dBm TI RF Module 2.4Ghz Cansec AN2642RSA-A 2

Wireless IoT 4dBm TI RF Module 2.4Ghz Cansec AN2642RSA-A 3

Wireless IoT 4dBm TI RF Module 2.4Ghz Cansec AN2642RSA-A 4

Wireless IoT 4dBm TI RF Module 2.4Ghz Cansec AN2642RSA-A 5

Wireless IoT 4dBm TI RF Module 2.4Ghz Cansec AN2642RSA-A 6

Wireless IoT 4dBm TI RF Module 2.4Ghz Cansec AN2642RSA-A 7

Wireless IoT 4dBm TI RF Module 2.4Ghz Cansec AN2642RSA-A 9

Wireless IoT 4dBm TI RF Module 2.4Ghz Cansec AN2642RSA-A 10

FAQ

Q1: Are you a factory or trade company?

A1: We are a professional factory with 25 years experience.

Q2: Can you accept OEM/ODM?

A2: Sure, we have rich OEM&ODM experience.

Q3: Do you have quality assurance?

A3; Each of our products has undergone quality testing and has two years of free after-sales service.
