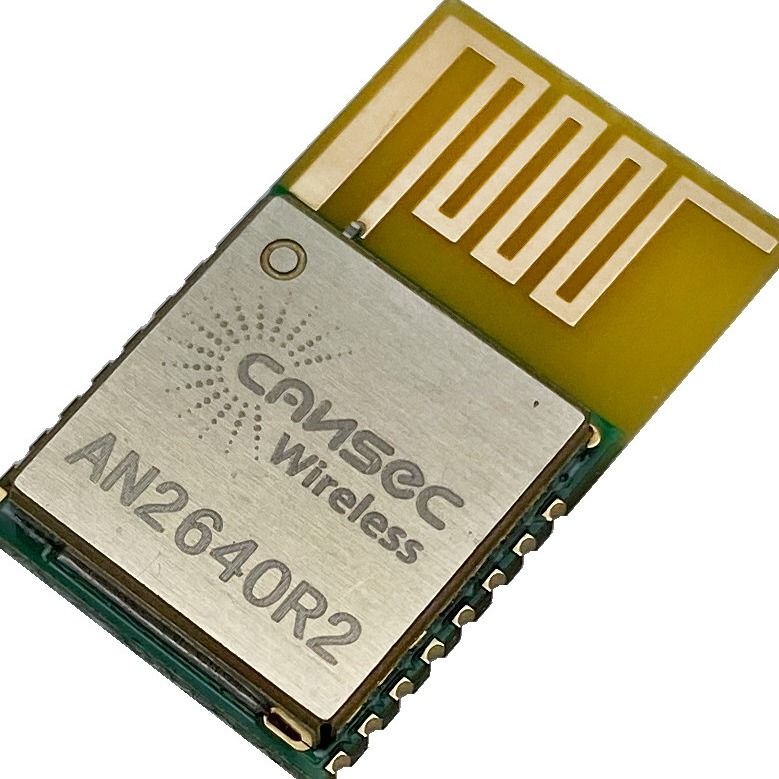

CC2640R2 Ti Ble Module Smart Home IoT Beacon Module

CC2640R2 Ti Ble Module Smart Home IoT Beacon Module
CC2640R2 Ti Ble Module Smart Home IoT Beacon Module

Large Image :  CC2640R2 Ti Ble Module Smart Home IoT Beacon Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: AN2640R2SA-K
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 2.78$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

CC2640R2 Ti Ble Module Smart Home IoT Beacon Module

Description
Size: 12×20×2.7mm TX Power: 3.7dBm
RX Sensitivity: -97dBm TX Current: 12mA
RX Current: 9mA Standby Current: 1uA
Antenna Type: PCB Antenna Chipset: Cc2640r2
High Light:

CC2640R2 Ti Ble Module

,

IoT Beacon Ti Ble Module

,

Smart Home IoT Beacon Module

CC2640R2 Ti Ble Module Smart Home IoT Beacon Module 0

Cansec IoT Module An2640R2Sa-K Blue Tooth Ble Module Ti CC2640R2 For Smart Home IoT Beacon

Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
-
3.8
V
Operating Temperature
-40
-
+85
°C
Current
Consumption
Sleep Mode
-
0.1

uA

Receive mode(@LDO mode)
-
9
-
mA

Transmit Mode
-
12
-
mA
TX Power
-
3.7
5
dBm
RX Sensitivity
-
-90
-97
dBm
Distance
60
m



It is difficult to imagine that you could suffer health problems by using a mobile phone or headset. Yet health experts and concerned consumers have raised serious questions about the possible effects of mobile devices, including fears that they might cause cancer. Conclusive evidence has never been discovered, but many experts suggest that the microwave emissions from phones and Bluetooth® headsets might carry some risk of cancer or other health problems.



Cansec IoT Module An2640R2Sa-K Blue Tooth Ble Module Ti CC2640R2 For Smart Home IoT Beacon

CC2640R2 Ti Ble Module Smart Home IoT Beacon Module 1

1. AN2640R2SA‐K Module is designed based on CC2640R2 Bluetooth Smart (Bluetooth® 4.2 and Bluetooth 5) System‐on‐Chip, fully supports the single-mode Bluetooth Low Energy operation.
2. The module provides the ability to either put your entire application into the integrated ARM Cortex M3 microcontroller or use the module in Network Processor mode in conjunction with the microcontroller of your choice.
CC2640R2 Ti Ble Module Smart Home IoT Beacon Module 2
CC2640R2 Ti Ble Module Smart Home IoT Beacon Module 3

CC2640R2 Ti Ble Module Smart Home IoT Beacon Module 4

CC2640R2 Ti Ble Module Smart Home IoT Beacon Module 5

CC2640R2 Ti Ble Module Smart Home IoT Beacon Module 6CC2640R2 Ti Ble Module Smart Home IoT Beacon Module 7

CC2640R2 Ti Ble Module Smart Home IoT Beacon Module 8

CC2640R2 Ti Ble Module Smart Home IoT Beacon Module 9

CC2640R2 Ti Ble Module Smart Home IoT Beacon Module 10
FAQ

Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
