Home ProductsBluetooth Low Energy Module

3.7dBm Ti CC2640R2 Ble 5.0 Module Cansec Wireless IoT Module

Certification
China Beijing JiaAn Electronics Technology Co., Ltd., certification
China Beijing JiaAn Electronics Technology Co., Ltd., certification
Customer Reviews
BEA Inc. receives great customer service from the entire Cansec team. We appreciate the prompt responses and feedback to our questions and enquiries. Cansec immediately responds and tries to fix or improve any complaints or issues that we may have.

—— BEA Inc.

Thanks for JiaAn's cooperation and support as always, and hope to continue to maintain close cooperation and good collaborative work in the follow-up work.

—— Jingdong health (JDH)

Thank you for your valuable cooperation for many years.

—— UDEA

I'm Online Chat Now

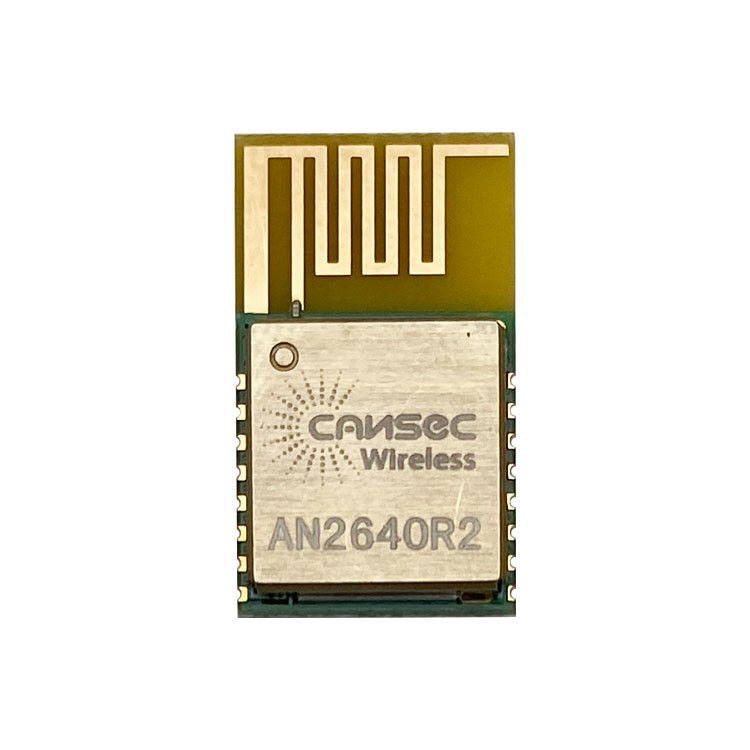

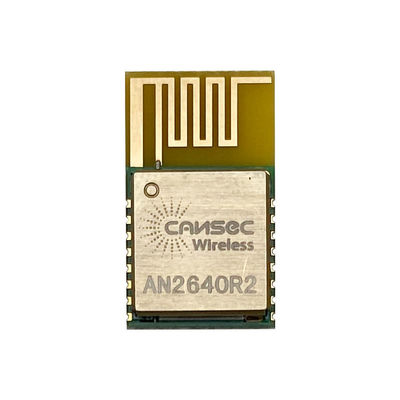

3.7dBm Ti CC2640R2 Ble 5.0 Module Cansec Wireless IoT Module

3.7dBm Ti CC2640R2 Ble 5.0 Module Cansec Wireless IoT Module
3.7dBm Ti CC2640R2 Ble 5.0 Module Cansec Wireless IoT Module

Large Image :  3.7dBm Ti CC2640R2 Ble 5.0 Module Cansec Wireless IoT Module

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: AN2640R2SA-K
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 2.78$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

3.7dBm Ti CC2640R2 Ble 5.0 Module Cansec Wireless IoT Module

Description
Size: 12×20×2.7mm TX Power: 3.7dBm
RX Sensitivity: -97dBm TX Current: 12mA
RX Current: 9mA Standby Current: 1uA
Antenna Type: PCB Antenna Chipset: Cc2640r2
High Light:

Ti CC2640R2 Ble 5.0 Module

,

3.7dBm Ble 5.0 Module

,

Cansec Wireless IoT Module

3.7dBm Ti CC2640R2 Ble 5.0 Module Cansec Wireless IoT Module 0

Standard Performance Cansec An2640R2Sa-K Wireless Ble5.0 IoT Module Ti CC2640R2 Blue Tooth Module



Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
-
3.8
V
Operating Temperature
-40
-
+85
°C
Current
Consumption
Sleep Mode
-
0.1

uA

Receive mode(@LDO mode)
-
9
-
mA

Transmit Mode
-
12
-
mA
TX Power
-
3.7
5
dBm
RX Sensitivity
-
-90
-97
dBm
Distance
60
m



Standard Performance Cansec An2640R2Sa-K Wireless Ble5.0 IoT Module Ti CC2640R2 Blue Tooth Module

Bluetooth® is not meant to replace wireless LAN technology, mostly because of its range limits. At this point in its newly burgeoning evolution, its main purpose is to simplify the process of connecting products within the home.

3.7dBm Ti CC2640R2 Ble 5.0 Module Cansec Wireless IoT Module 1

1. AN2640R2SA‐K Module is designed based on CC2640R2 Bluetooth Smart (Bluetooth® 4.2 and Bluetooth 5) System‐on‐Chip, fully supports the single-mode Bluetooth Low Energy operation.
2. The module provides the ability to either put your entire application into the integrated ARM Cortex M3 microcontroller or use the module in Network Processor mode in conjunction with the microcontroller of your choice.
3.7dBm Ti CC2640R2 Ble 5.0 Module Cansec Wireless IoT Module 2
3.7dBm Ti CC2640R2 Ble 5.0 Module Cansec Wireless IoT Module 3

3.7dBm Ti CC2640R2 Ble 5.0 Module Cansec Wireless IoT Module 4

3.7dBm Ti CC2640R2 Ble 5.0 Module Cansec Wireless IoT Module 5

3.7dBm Ti CC2640R2 Ble 5.0 Module Cansec Wireless IoT Module 63.7dBm Ti CC2640R2 Ble 5.0 Module Cansec Wireless IoT Module 7

3.7dBm Ti CC2640R2 Ble 5.0 Module Cansec Wireless IoT Module 8

3.7dBm Ti CC2640R2 Ble 5.0 Module Cansec Wireless IoT Module 9

3.7dBm Ti CC2640R2 Ble 5.0 Module Cansec Wireless IoT Module 10
FAQ

Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
