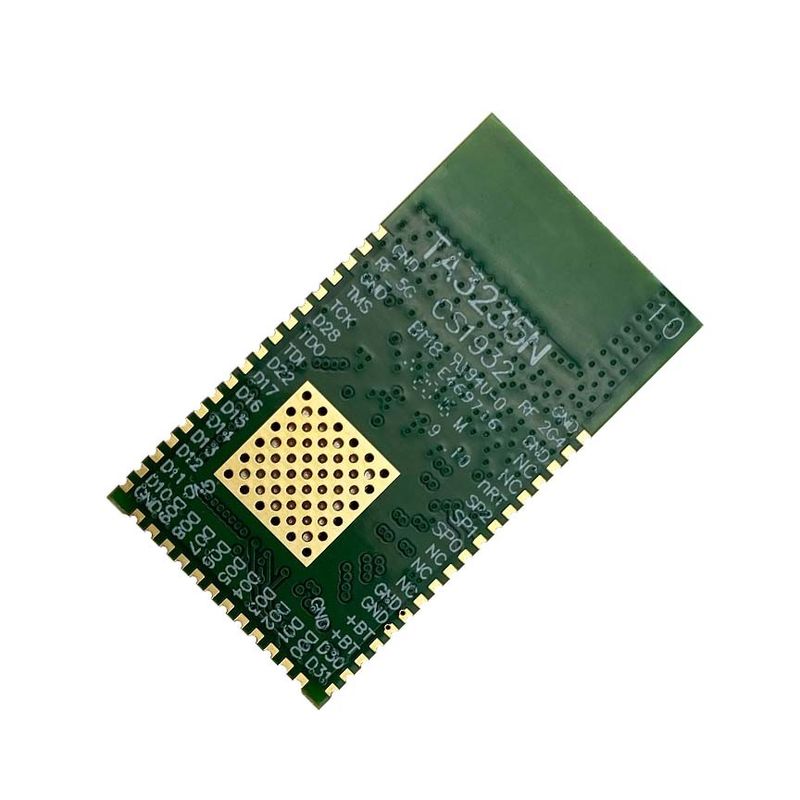

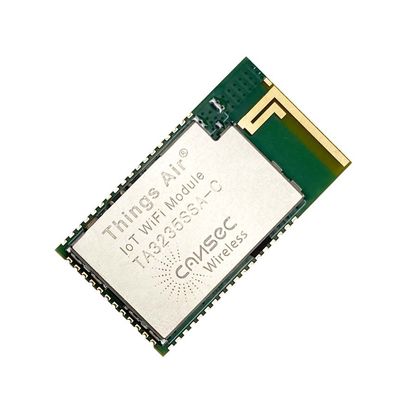

2.4Ghz & 5Ghz Wireless Receiver Module 1uA Ti Wifi Module TA3235

2.4Ghz & 5Ghz Wireless Receiver Module 1uA Ti Wifi Module TA3235
2.4Ghz & 5Ghz Wireless Receiver Module 1uA Ti Wifi Module TA3235 2.4Ghz & 5Ghz Wireless Receiver Module 1uA Ti Wifi Module TA3235

Large Image :  2.4Ghz & 5Ghz Wireless Receiver Module 1uA Ti Wifi Module TA3235

Product Details:
Place of Origin: Beijing
Brand Name: Cansec Wireless
Model Number: TA3235SA-C
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD 7.5$ per piece
Packaging Details: Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
Delivery Time: 3~6 weeks
Payment Terms: T/T
Supply Ability: 2000000 pieces per year

2.4Ghz & 5Ghz Wireless Receiver Module 1uA Ti Wifi Module TA3235

Description
Size: 18.2*33*2.8mm TX Power: 16.5dBm
RX Sensitivity: -95dBm TX Current 2.4GHz: 380mA
RX Current 2.4GHz: 77mA Standby Current: 1uA
Antenna Type: Chip Antenna Chipset: CC3235
TX Current 5G: 470mA RX Current 5GHz: 87mA
High Light:

5Ghz Wireless Receiver Module

,

2.4Ghz Wireless Receiver Module

,

1uA Ti Wifi Module

2.4Ghz & 5Ghz Wireless Receiver Module 1uA Ti Wifi Module TA3235 0

Cansec TA3235SSA-C Ti CC3235 Wifi Module High Performance Rf Combi Wifi Wireless Receiver Module 2.4Ghz & 5Ghz

Parameter
Min
Typ
Max
Unit
Operating Voltage
2.5
3.3
3.6
V
Operating Temperature
-20
-
+70
Current
Consumption
Sleep Mode
2.4G
-
-
5.2
uA
5G
-
-
5.2
uA
Receive mode
(MCU active)
2.4G
-
-
77
mA
5G
-
-
87
mA
Transmit Mode(CW)
( at +18 dBm ,+3.3V)
2.4G
-
-
380
mA
5G

-
470
mA
TX Power(CW)
2.4G
-
16.5
18
dBm

5G
-
14.5
18
dBm
RX Sensitivity
2.4G (at 1 DSSS)
-
-
-94.5
dBm

5G (at 6 OFDM)
-
-
-89
dBm



Cansec TA3235SSA-C Ti CC3235 Wifi Module High Performance Rf Combi Wifi Wireless Receiver Module 2.4Ghz & 5Ghz



The TA3235 is a WIFI module. The integrated hardware solution comprises the CC3235S/CC3235SF Wi-Fi wireless MCU. Customers may reuse the reference design to design their own Board. The software and hardware design resources reduce engineering efforts, shorten time to market, and help developers and customers release their products with cloud connectivity features faster.

2.4Ghz & 5Ghz Wireless Receiver Module 1uA Ti Wifi Module TA3235 1

2.4Ghz & 5Ghz Wireless Receiver Module 1uA Ti Wifi Module TA3235 2

2.4Ghz & 5Ghz Wireless Receiver Module 1uA Ti Wifi Module TA3235 3

2.4Ghz & 5Ghz Wireless Receiver Module 1uA Ti Wifi Module TA3235 42.4Ghz & 5Ghz Wireless Receiver Module 1uA Ti Wifi Module TA3235 5

2.4Ghz & 5Ghz Wireless Receiver Module 1uA Ti Wifi Module TA3235 6

2.4Ghz & 5Ghz Wireless Receiver Module 1uA Ti Wifi Module TA3235 72.4Ghz & 5Ghz Wireless Receiver Module 1uA Ti Wifi Module TA3235 82.4Ghz & 5Ghz Wireless Receiver Module 1uA Ti Wifi Module TA3235 92.4Ghz & 5Ghz Wireless Receiver Module 1uA Ti Wifi Module TA3235 10

2.4Ghz & 5Ghz Wireless Receiver Module 1uA Ti Wifi Module TA3235 11
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
